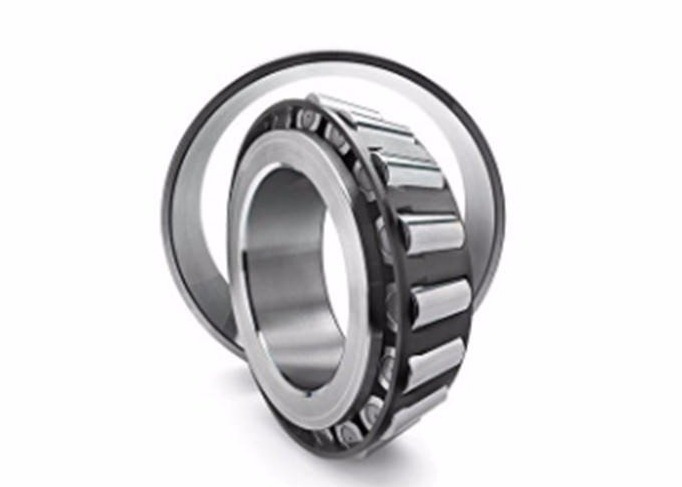

32012 Taper Roller Bearing High Precision Truck Roller Bearing 60x95x23

32012 Tapered Roller Bearing: High Combined Load For Trucks, Agri & Mining Gearboxes

I. Product Overview

The 32012 tapered roller bearing is a high - precision mechanical component designed for machinery that demands reliable performance under combined loads. As part of the 320 series, it has its own set of dimensional and performance characteristics. With an inner diameter (d) of 60mm, an outer diameter (D) of 95mm, and a width (B) of 23mm, it strikes a balance between compactness and load - bearing capacity.

This bearing is engineered to handle both substantial radial loads and significant axial forces simultaneously. The design allows it to be applied in various industrial scenarios where machines experience complex stress conditions. Similar to other tapered roller bearings, the 32012 is sensitive to misalignment between the shaft and the housing. Precise installation and alignment are crucial to ensure its smooth operation and long - term durability.

II. Structural Design

2.1 Rolling Elements

The rolling elements of the 32012 bearing are tapered rollers, which are made from high - quality high - carbon chromium bearing steel, often GCr15. After undergoing a series of heat treatment processes such as quenching and low - temperature tempering, the rollers achieve a surface hardness of HRC58 - 64. This high hardness provides excellent wear resistance, ensuring that the bearing can withstand the abrasive forces generated during operation.

The tapered shape of the rollers is optimized to form a line contact with the raceways. This line - contact design significantly increases the load - distribution area compared to point - contact bearings, effectively reducing local stress concentrations. The dimensional tolerance of the rollers is strictly controlled within the P0 - P4 class, and the surface roughness (Ra) is maintained at ≤0.08μm, which contributes to smooth rotation and reduced friction.

2.2 Raceways

Both the inner and outer rings of the 32012 bearing are equipped with tapered raceways. The cone angle of these raceways is carefully designed, usually around 16°, which is tailored to efficiently handle the combined radial and axial loads. When loads are applied to the bearing, the forces are transmitted along the generatrices of the cones formed by the raceways and rollers.

The raceways are also subjected to advanced heat treatment. They are carburized to a certain depth (usually around 1.5 - 3mm), followed by quenching and tempering. This heat treatment process results in a hardened layer on the surface of the raceways with a hardness of HRC58 - 64. The hardened layer gives the raceways excellent fatigue strength, enabling them to endure repeated load cycles without premature failure. The raceways are designed to work in harmony with the rollers, ensuring a stable and efficient load - transfer mechanism.

2.3 Cage

The cage in the 32012 bearing serves the important function of separating and guiding the tapered rollers. It is typically made of high - strength structural steel, such as 45# steel or 20CrMnTi. The cage is precision - machined using CNC turning and milling techniques to create evenly spaced, tapered pockets that precisely fit the rollers. This design prevents collision and excessive friction between adjacent rollers during operation, especially under high - load conditions.

To enhance the durability of the cage, its surface can be treated with processes like black oxide or phosphating. Black oxide treatment provides corrosion resistance, protecting the cage from rust and oxidation in various working environments. Phosphating treatment, on the other hand, improves the wear resistance of the cage, further extending its service life. In some high - end versions of the 32012 bearing, brass cages (such as H62 or H65 brass) are used. Brass cages offer better thermal conductivity, which helps in dissipating heat generated during operation, making them suitable for applications where the bearing may be exposed to elevated temperatures.

III. Performance Characteristics

3.1 Combined Load - Carrying Capacity

The 32012 tapered roller bearing is designed to handle a substantial amount of combined radial and axial loads. Its basic rated dynamic load rating (Cr) is approximately 101kN (this value may vary slightly among different manufacturers), and the basic rated static load rating (C0r) is around 122kN. It can support radial loads of up to a significant value (proportional to its design) and axial loads that are a considerable percentage of the radial load, typically around 30 - 40% of the radial load - carrying capacity. This makes it an ideal choice for machinery in industries such as heavy - duty transportation, where axles need to bear the weight of the vehicle (radial load) and the forces generated during acceleration, braking, and cornering (axial loads).

3.2 Speed Adaptability

The 32012 bearing is optimized for moderate - speed operation. Its reference speed under grease lubrication is around 5300 r/min, and its limiting speed under oil - bath lubrication is up to 6700 r/min. These speed ratings make it suitable for a wide range of applications, including industrial motors, conveyor systems, and some types of agricultural machinery. However, it is important to note that operating the bearing at speeds close to or exceeding the limiting speed can lead to increased friction, heat generation, and accelerated wear. Proper lubrication and cooling measures are essential to ensure smooth operation within the recommended speed range.

3.3 Misalignment Sensitivity and Mitigation

Like all tapered roller bearings, the 32012 is sensitive to misalignment between the shaft and the housing. Even a small degree of misalignment, such as 0.1 - 0.2°, can cause uneven loading on the rollers, leading to increased vibration, noise, and reduced service life. To mitigate this issue, several measures can be taken. During installation, precision alignment tools such as laser alignment devices should be used to ensure that the radial misalignment is kept within ≤0.02mm and the axial misalignment is ≤0.01mm. Additionally, an interference fit (H7/r6) between the inner ring and the shaft helps to prevent slippage under heavy loads, while a clearance fit (H7/js6) between the outer ring and the housing allows for a slight degree of axial adjustment. In applications where minor misalignment is inevitable, self - aligning washers or flexible couplings can be used to reduce the negative effects of misalignment on the bearing.

IV. Application Fields

4.1 Heavy - Duty Automotive Industry

In the heavy - duty automotive sector, the 32012 bearing finds applications in the drive axles and differential systems of trucks and buses. In drive axles, it supports the weight of the vehicle (radial load) and copes with the axial forces generated during acceleration, braking, and cornering. In differentials, it enables smooth power transfer between the engine and the wheels, accommodating the speed differences that occur when the vehicle turns. It is also used in the rear axles of large commercial buses and special - purpose vehicles such as dump trucks and concrete mixers, where reliable load - carrying capacity is crucial for safe and efficient operation.

4.2 Industrial Machinery

In industrial settings, the 32012 bearing is a vital component in various types of machinery. For example, in mining machinery, it can be found in conveyor gearboxes, where it withstands the heavy radial loads from the conveyor belts and the impact loads generated during the movement of ore. In construction material machinery, such as cement mixer gearboxes and asphalt mixer shafts, it operates in dusty and high - vibration environments, relying on its robust design and high - load - carrying capacity. In heavy - duty motors (ranging from 20 - 40kW), it supports the heavy rotor and manages the axial thrust generated during motor operation.

4.3 Agricultural Machinery

In the agricultural industry, the 32012 bearing is used in tractors and other agricultural equipment. In tractors, it is often installed in the rear axle systems to support the weight of the tractor and the heavy implements attached to it, such as plows and harvesters. It also handles the axial forces generated during field operations, such as when the tractor makes turns or encounters uneven terrain. In addition, it can be found in large irrigation pumps, where it manages the heavy radial loads from the impellers and the axial thrust from the fluid pressure, ensuring the efficient operation of the irrigation system.

V. Dimensions and Specification Parameters

VI. Maintenance Points

6.1 Lubrication Management

Proper lubrication is essential for the long - term performance of the 32012 bearing. For general heavy - load applications, lithium - based grease with an NLGI grade of 2 - 3 and a dropping point of at least 200°C is recommended. The grease should be filled to occupy about 1/3 - 1/2 of the internal space of the bearing. In high - temperature environments (up to 200°C), synthetic polyurea - based grease should be used, as it can maintain its lubricating properties at elevated temperatures. For high - load and moderate - speed applications, oil - bath lubrication with ISO VG 68 - 100 industrial gear oil is a suitable option. The lubrication intervals should be adjusted according to the operating conditions. In dusty or vibratory environments, the bearing should be lubricated every 1 - 2 months, while in normal operating conditions, lubrication can be carried out every 3 - 5 months.

6.2 Regular Inspection

Regular inspections are necessary to detect any potential problems with the 32012 bearing before they lead to major failures. Visual inspections should be conducted to look for signs of raceway pitting, roller spalling, or cage deformation. Vibration monitoring is also an important aspect of inspection. The normal vibration level of the bearing should be ≤2.0mm/s. If the vibration exceeds 3.5mm/s, it indicates that there may be issues such as misalignment, uneven loading, or wear. Temperature monitoring is another crucial factor. The normal operating temperature of the bearing should be ≤90°C. If the temperature exceeds 100°C, it may suggest lubricant degradation, excessive friction, or misalignment. For critical equipment, such as in mining or heavy - industrial applications, ultrasonic testing can be performed every 1 - 2 months to detect internal defects that may not be visible during visual inspections.

6.3 Installation Precautions

During the installation of the 32012 bearing, several precautions should be taken. First, the installation environment should be kept clean and dust - free, as even small particles of dirt or debris can cause significant wear to the bearing under heavy loads. Hydraulic presses and bearing mounting sleeves should be used for installation to avoid hammering, which can cause deformation of the raceways. The fit between the inner ring and the shaft should be an interference fit (H7/r6) to prevent slippage under load, while the fit between the outer ring and the housing should be a clearance fit (H7/js6) to allow for some axial movement. Dial indicators should be used to verify the runout of the bearing during installation, with the radial runout being ≤0.03mm and the axial runout being ≤0.02mm.

6.4 Storage Considerations

When storing the 32012 bearing, it should be placed in a clean, dry warehouse with a temperature range of 5 - 25°C and a humidity level of ≤50%. The bearing should be kept in its original sealed anti - rust packaging. If the packaging is damaged, it should be vacuum - sealed with anti - rust film to prevent corrosion. The bearing should be stored horizontally on sturdy shelves, and the maximum stack height should be limited to 1 layer to avoid permanent deformation. Regular inspections should be carried out every 3 months. If any signs of rust are detected, the bearing should be cleaned with kerosene, dried with compressed air, coated with anti - rust oil, and repackaged.
