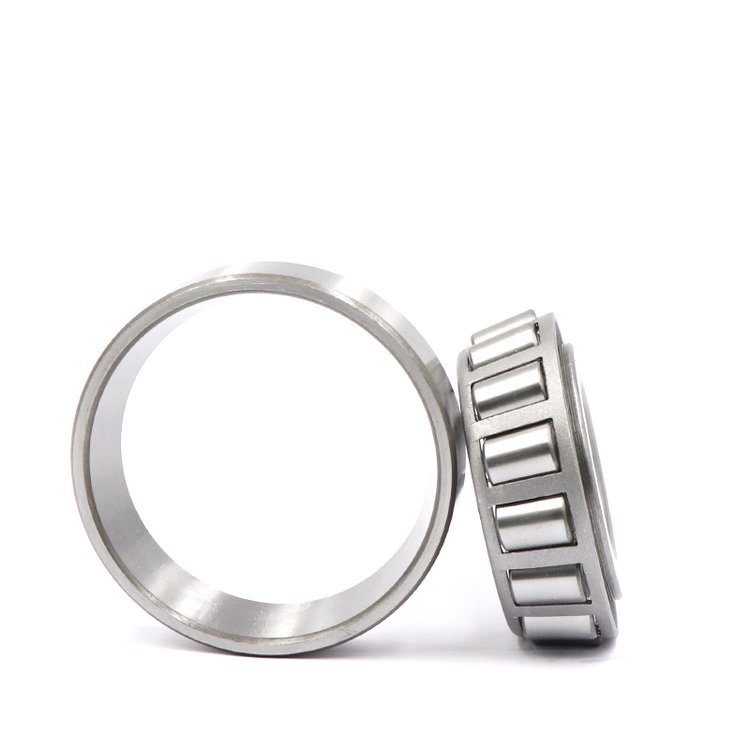

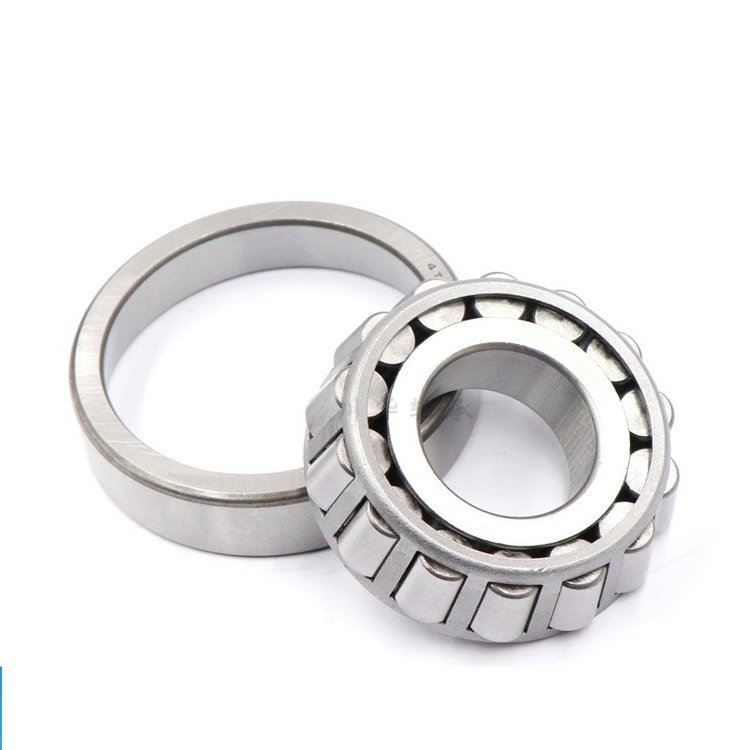

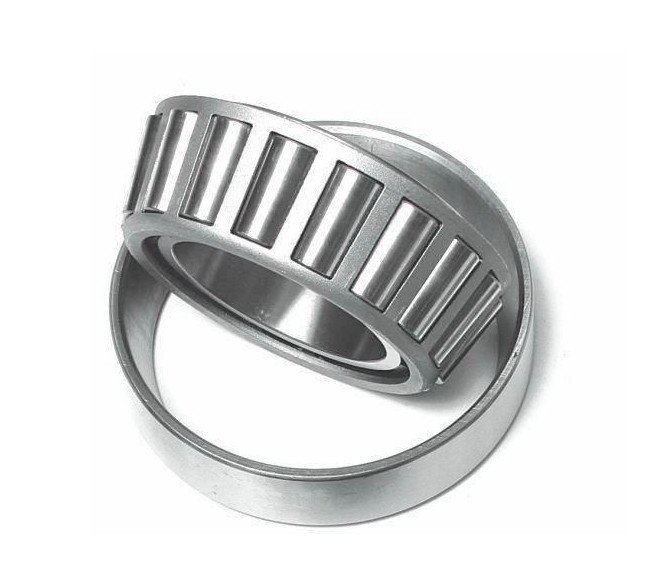

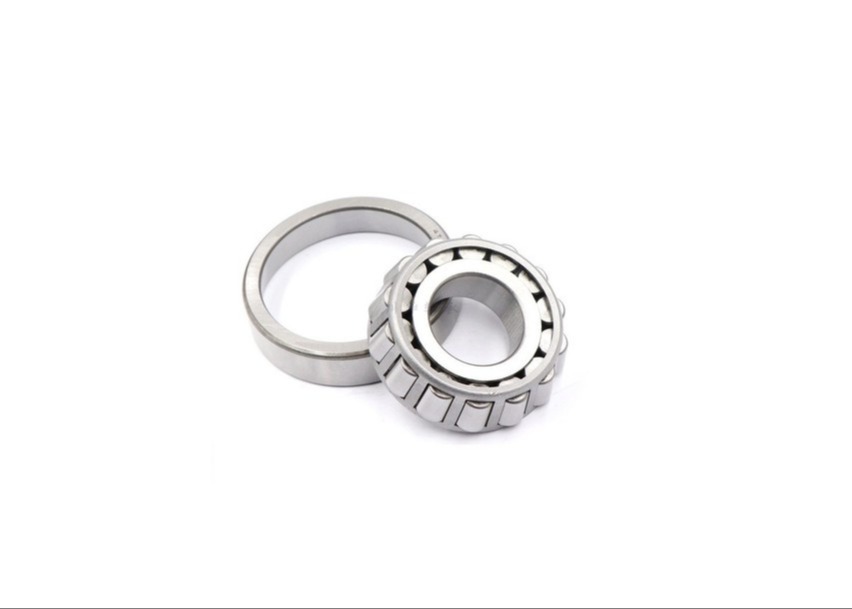

Single Row Tapered Roller Bearing 30200 For Light To Medium Load Scenarios

Single Row Tapered Roller Bearing 30200 Series is used in light to moderate load applications

1. Product Overview

2. Key Technical Parameters

3. Performance and Application Scenarios

• Performance:
  • Efficient under light loads (pure rolling reduces friction);
  • Stable precision (low vibration at high speeds);
  • Durable and reliable (bearing steel enhances fatigue resistance).
• Application Scenarios:
  • Industrial: Small motors, screw compressors (e.g., 30200 used in DHK screw compressor main transmission systems), micro reducers;
  • Automotive: Steering knuckles, auxiliary supports for gearboxes, withstanding combined radial and axial loads;
  • Medical and Civil: Dental equipment (e.g., dental drill spindles), printer paper-feeding mechanisms, fitness equipment drive shafts;
  • Special Environments: For high temperatures (+120℃), optional C3 clearance + high-temperature grease; for dusty environments, compatible with triple-lip seals.

4. Maintenance and Installation Specifications

• Lubrication Requirements:
  • Grease lubrication: Fill 1/3-1/2 of the bearing space; recommended to use extreme pressure lithium-based grease containing MoS₂ (e.g., ISO L-XBCHB2). For high-temperature environments, shorten lubrication intervals by 30%;
  • Oil lubrication: For high-speed conditions (dn＞300,000), use oil bath lubrication with viscosity ≥100 mm²/s at 40℃. Regularly test oil contamination (below ISO 4406 18/16/13 class).
• Installation Key Points:
  • Heating installation: Oil bath heating to 80-100℃ (not exceeding 120℃); after hot fitting, axial preload should be controlled within 0.05-0.10 mm clearance range;
  • Alignment accuracy: Coaxiality error ≤0.005 mm to avoid uneven loading causing early wear.
• Monitoring Recommendations:
  • Vibration analysis: Use acceleration sensors to monitor high-frequency bands (5-10kHz); abnormal characteristic frequencies (e.g., BPFO) indicate early damage;
  • Temperature monitoring: Normal operating temperature <90℃, temperature rise <40℃; infrared thermography can detect hot spots.

5. Industry Standards and Customization Options

• Standard Compliance:
  • Complies with JB/T 10236-2001 Technical Conditions for Vibration of Tapered Roller Bearings, with vibration velocity ≤1.8 mm/s (Group V);
  • The 2025 revised ISO 7544 Cleanliness Test Methods requires internal bearing particle size ≤100μm.
• Customization Options:
  • Clearance adjustment: C3 clearance for high-speed (e.g., motors), C4 clearance for high temperatures (+150℃) or large temperature differences;
  • Coating treatment: Black oxide coating (SKF VA405) improves corrosion resistance; nickel plating is suitable for food-grade equipment;
  • Seal design: Optional contact rubber seals (dust-proof) or non-contact labyrinth seals (high-sped
