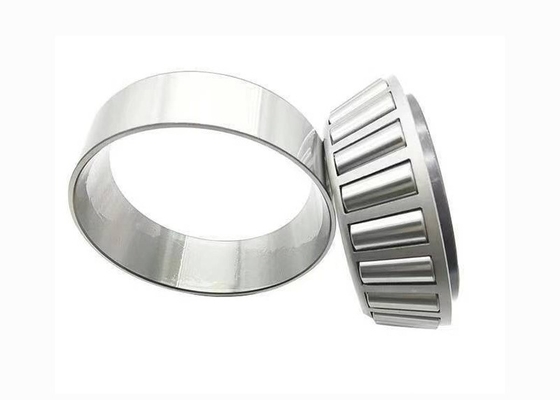

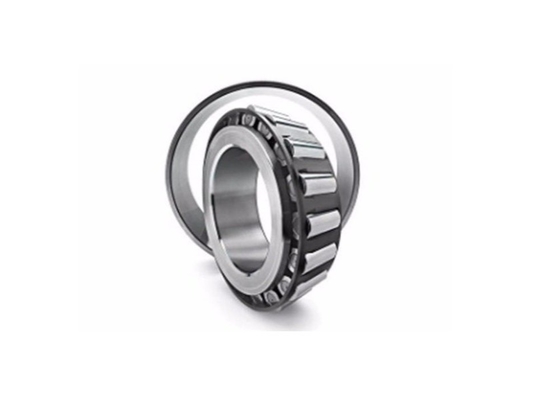

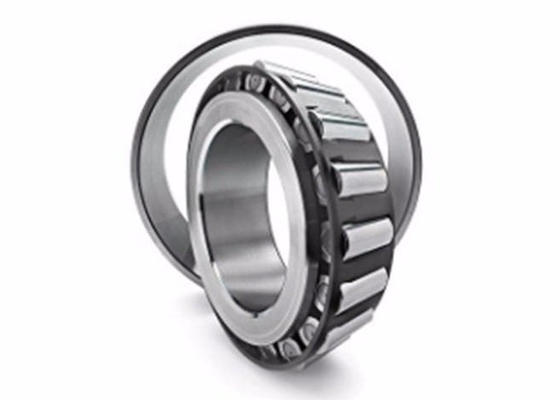

32011 Heavy Load Roller Bearings , 55x90x23 bearing For Trucks / Mining / Agri Tractors

32011 Tapered Roller Bearing: Extra-Heavy Load For Trucks, Mining & Agri Tractors

I. Product Overview

The 32011 tapered roller bearing is a high-precision heavy-duty mechanical component engineered for large-scale heavy-duty machinery operating in harsh, high-load environments. As a key member of the 320 series tapered roller bearings, it features scaled-up dimensional parameters compared to the 32008 model: an inner diameter (d) of 55mm, an outer diameter (D) of 90mm, and a width (B) of 23mm. This dimensional upgrade significantly enhances its load-bearing capacity, making it ideal for applications requiring efficient handling of extra-heavy radial loads and high axial forces. Like other tapered roller bearings, it is sensitive to shaft-housing misalignment, so precise installation and alignment are critical to ensuring long-term stable operation of machinery.

II. Structural Design

2.1 Rolling Elements

The 32011 bearing is equipped with larger, thicker tapered rollers than the 32008 model. These rollers are manufactured from premium high-carbon chromium bearing steel (GCr15SiMn), which offers superior hardenability, toughness, and fatigue resistance compared to standard GCr15. After rigorous heat treatment (quenching + low-temperature tempering), the rollers achieve a surface hardness of HRC58-64 and a core hardness of HRC30-45, balancing wear resistance and impact toughness. The production process adheres to strict quality control standards, with dimensional tolerance controlled within P0-P4 class and surface roughness (Ra) ≤0.08μm. The optimized tapered profile of the rollers forms a full line contact with the raceways, expanding the load distribution area by 25%-30% compared to the 32008 model. This design effectively reduces local stress concentrations, minimizing the risk of roller spalling or raceway pitting under extra-heavy loads.

2.2 Raceways

Both the inner and outer rings of the 32011 bearing feature matched tapered raceways with a larger cone angle (20°-25°) than the 32008 model, tailored to withstand higher axial loads. The raceways and rollers form a "conical assembly" structure—when loads are applied, forces are transmitted along the cone generatrices, enabling efficient conversion and distribution of combined radial and axial loads. The raceways undergo advanced heat treatment: carburizing (case depth 2.5-4.5mm), quenching, and tempering, resulting in a uniform hardened layer with surface hardness HRC58-64 and excellent fatigue strength. This allows the bearing to withstand frequent load fluctuations, strong vibrations, and harsh environments (dust, humidity, temperature up to 180°C) common in heavy industrial settings.

2.3 Cage

A high-strength structural steel cage (45# steel or 20CrMnTi) is used to separate and guide the tapered rollers in the 32011 bearing. The cage is precision-machined via CNC turning and milling, with evenly spaced, tapered pockets that fit the rollers perfectly—preventing collision and friction between adjacent rollers during high-load, moderate-speed operation. For enhanced durability, the cage surface is treated with black oxide (for corrosion resistance) or phosphating (for wear resistance). High-end models adopt brass cages (H62 or H65 brass), which offer better thermal conductivity (108 W/(m·K)) and impact resistance, making them suitable for high-temperature (up to 220°C) applications such as heavy-duty hydraulic motors or mining machinery gearboxes.

III. Performance Characteristics

3.1 Extra-Heavy Combined Load-Carrying Capacity

The 32011 tapered roller bearing is specifically designed for extra-heavy combined radial and axial loads, with load ratings significantly higher than the 32008 model. Its basic rated dynamic load rating (Cr) typically ranges from 180-200kN (varies by manufacturer), and basic rated static load rating (C0r) ranges from 250-280kN—capable of supporting radial loads up to 200kN and axial loads up to 80kN (40% of radial load). This makes it a preferred choice for machinery with extreme load conditions, such as heavy-duty truck drive axles (20-30 tons), large mining conveyor gearboxes, and 150+ horsepower agricultural tractor rear axles.

3.2 Moderate-Speed Adaptability

Due to its tapered roller design (line contact), the 32011 bearing is optimized for moderate-speed operation. Its reference speed (grease lubrication) is 2800-3800 r/min, and limiting speed (oil-bath lubrication) is 4500-5500 r/min—sufficient for heavy-duty, medium-speed applications (e.g., 30-50kW industrial motors, mining crusher drive shafts). Proper lubrication is critical: excessive speed (over 5500 r/min) can cause friction-induced temperature rise (exceeding 110°C), leading to lubricant degradation and accelerated wear.

3.3 Misalignment Sensitivity and Mitigation

Like other tapered roller bearings, the 32011 is sensitive to shaft-housing misalignment—even 0.2° of misalignment can cause uneven roller loading, increasing vibration and reducing service life by 30%-50%. Mitigation measures include: 1) Precision alignment using laser alignment tools (radial misalignment ≤0.02mm, axial misalignment ≤0.01mm); 2) Adopting interference fit (H7/r6) between inner ring and shaft to prevent slippage under heavy loads, and clearance fit (H7/js6) between outer ring and housing for slight axial adjustment; 3) Using self-aligning washers or flexible couplings in applications prone to minor misalignment (e.g., construction machinery on uneven terrain).

IV. Application Fields

4.1 Heavy-Duty Automotive Industry

In the automotive sector, the 32011 bearing is widely used in heavy-duty truck (20-30 tons) drive axles and differential systems. In drive axles, it supports the vehicle’s weight (extra-heavy radial load) while handling large axial forces from acceleration, braking, and cornering; in differentials, it ensures smooth power transfer between the engine and wheels, accommodating speed differences during turns. It is also used in large commercial bus rear axles and special vehicles (e.g., dump trucks, concrete mixers) where high load capacity is critical.

4.2 Industrial Machinery

In industrial settings, the 32011 bearing is a core component in heavy industrial equipment: 1) Mining machinery (conveyor gearboxes, crusher shafts) – withstands impact loads from ore crushing and heavy radial loads from conveyor belts; 2) Construction material machinery (cement mixer gearboxes, asphalt mixer shafts) – adapts to dusty, high-vibration environments; 3) Heavy-duty motors (30-50kW) – supports the heavy rotor and handles axial thrust from motor operation.

4.3 Agricultural and Mining Machinery

The 32011 bearing is ideal for large agricultural and mining machinery: 1) Agricultural tractors (150+ horsepower) – used in rear axle systems to support the tractor and heavy implements (plows, harvesters) while handling axial forces during field operations; 2) Mining loaders and excavators – installed in wheel hubs, hydraulic pump shafts, and rotary joints, withstanding high-impact loads and harsh conditions (dust, mud, temperature variations); 3) Large irrigation pumps – handles heavy radial loads from impellers and axial thrust from fluid pressure.

V. Dimensions and Specification Parameters

VI. Maintenance Points

6.1 Lubrication Management

Proper lubrication is critical for the 32011 bearing’s lifespan: 1) Grease lubrication: Use NLGI 3 lithium-based grease (filling 1/3-1/2 of internal space) for general heavy-load applications; 2) High-temperature environments: Switch to synthetic polyurea grease (operating temp -30°C to 220°C); 3) Oil lubrication: Adopt ISO VG 100-150 industrial gear oil for high-load/moderate-speed scenarios. Lubrication intervals: Every 1-3 months for dusty/vibratory environments, every 3-6 months for normal operation.

6.2 Regular Inspection

Frequent inspections prevent unexpected failures: 1) Visual checks: Look for raceway pitting, roller spalling, or cage deformation; 2) Vibration monitoring: Normal vibration ≤2.2mm/s; exceed 3.8mm/s indicates issues; 3) Temperature monitoring: Normal operating temp ≤100°C; over 110°C suggests lubricant degradation or misalignment. For key equipment (mining gearboxes), conduct ultrasonic testing every 2 months to detect internal defects.

6.3 Installation Precautions

1. Cleanliness: Ensure a dust-free environment—contaminants can cause rapid wear under heavy loads; 2) Tools: Use hydraulic presses and bearing mounting sleeves to avoid hammering (prevents raceway deformation); 3) Fits: Inner ring-shaft (H7/r6) interference fit, outer ring-housing (H7/js6) clearance fit; 4) Alignment: Use dial indicators to verify runout (radial ≤0.03mm, axial ≤0.02mm).

6.4 Storage Considerations

Store in a clean, dry warehouse (temp 5-25°C, humidity ≤50%): 1) Packaging: Keep in original sealed anti-rust packaging; damaged packaging requires vacuum-sealing with anti-rust film; 2) Placement: Store horizontally on sturdy shelves, max stack height 1 layer (avoids permanent deformation); 3) Inspection: Check every 3 months—if rust is found, clean with kerosene, dry with compressed air, apply anti-rust oil, and repackage.
