High Speed Tapered Roller Bearings 30203 High Load Customizable

30203 Tapered Roller Bearing: High Load & Precision Performance

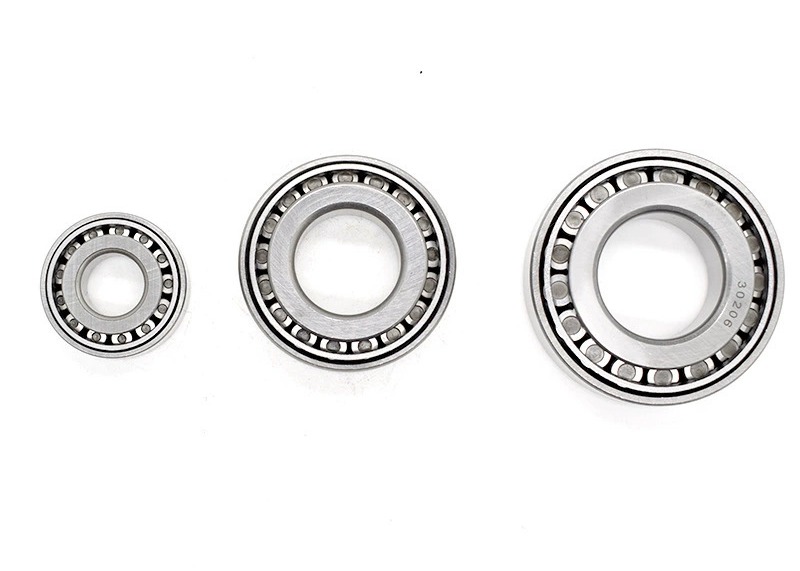

I. Product Overview​

The 30203 tapered roller bearing plays a crucial role in the mechanical transmission system. With its unique design and excellent performance, it lays a solid foundation for the stable operation of numerous mechanical equipment. The special structure of this bearing enables it to bear both radial and unidirectional axial loads simultaneously, performing exceptionally well in working conditions with strict requirements on bearing capacity and running accuracy. It is widely used in industries such as automobiles, machine tools, and heavy machinery, serving as a core component to ensure efficient and reliable operation of equipment.​

II. Structural Design​

1. Exquisite Cooperation between Rollers and Raceways: The 30203 tapered roller bearing is equipped with frustum-shaped rollers inside, which are precisely guided by the large rib of the inner ring. The vertices of the conical surfaces of the inner ring raceway, outer ring raceway, and roller rolling surface cleverly converge at a point on the centerline of the bearing. This exquisite design allows the rollers to achieve pure rolling on the raceway surfaces. By virtue of the combined force from the inner and outer ring raceways, as well as the action and reaction force on the large rib of the inner ring, a state of force balance is achieved. In actual working scenarios, when the equipment operates with complex and variable loads, this structure can effectively disperse stress, ensure the smooth operation of the bearing, reduce the risk of wear, and prolong the service life of the bearing.​

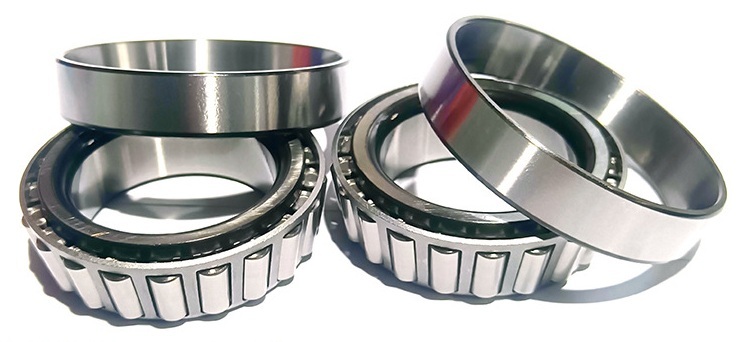

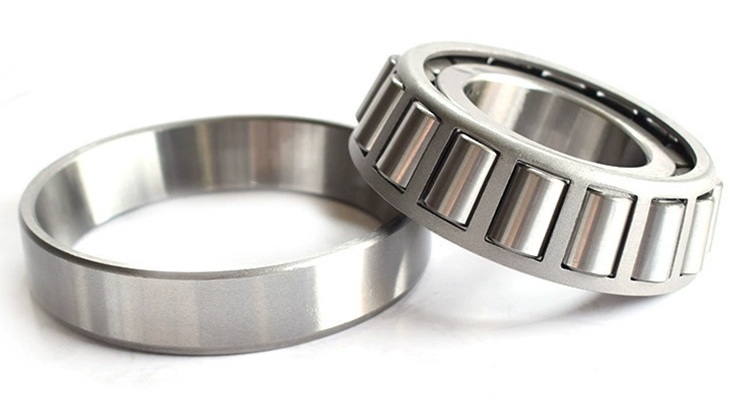

2. Separable Inner and Outer Ring Structure: This bearing adopts a structure where the outer ring and inner ring assembly can be separated, which greatly facilitates the installation and maintenance processes. During the installation phase, the inner ring and outer ring can be installed separately, and the axial and radial clearances can be flexibly adjusted to meet the actual needs of different working conditions. At the same time, both the inner and outer rings can be installed with an interference fit, ensuring that the bearing fits tightly with the shaft and bearing housing during high-load operation, avoiding loosening, thereby improving the accuracy and stability of equipment operation and providing a solid guarantee for the efficient operation of the equipment.​

III. Dimensional Specifications​

​

​

IV. Performance Advantages​

1. Strong Bearing Capacity: The 30203 tapered roller bearing has excellent load-bearing performance and can withstand large radial and unidirectional axial loads. This is attributed to its unique roller and raceway design, where the contact area between the rollers and raceways is large, effectively dispersing the load and enhancing the bearing capacity of the bearing. For example, in automobile transmissions, this bearing can stably bear the radial and axial forces generated by gear transmission, ensuring the efficient and reliable operation of the transmission.​
2. Good Rigidity and Accuracy Retention: Since the rollers and raceways of tapered roller bearings are in line contact, they have higher rigidity compared to bearings with point contact. During operation, it can effectively suppress the deformation and vibration of the shaft, maintaining high running accuracy. In the application of precision machine tool spindles, this bearing can ensure precise cutting of tools and produce high-precision components.​
3. Adaptability to High-Speed Operation: Although tapered roller bearings are mainly designed to bear large loads, the 30203 model has been carefully optimized and can adapt to high-speed operation within a certain range. By reasonably selecting materials, optimizing the structural design, and adopting advanced manufacturing processes, the internal friction and heat generation of the bearing are reduced, ensuring stable operation at relatively high speeds, reducing wear and fatigue caused by high speeds, and prolonging the service life.​

V. Application Fields​

1. Automobile Industry: In the automotive field, 30203 tapered roller bearings are widely used in front wheels, rear wheels, transmissions, differential pinion shafts, and other components. In the wheel parts, they bear the radial road forces during vehicle operation and the axial forces generated by steering and braking, ensuring the stable operation of the wheels; in transmissions and differentials, they can cope with the complex loads caused by gear transmission, ensuring efficient and smooth power transmission.​
2. Machine Tool Field: Machine tool spindles have extremely high requirements for running accuracy and rigidity. The 30203 tapered roller bearing, with its good rigidity and accuracy retention, has become an ideal choice for machine tool spindles. It can stably support the spindle during high-speed cutting, ensure precise positioning of tools, and process high-precision components, meeting the needs of the mechanical manufacturing industry for precision machining.​
3. Construction Machinery Field: Construction machinery such as cranes and excavators face complex and variable loads during operation. The 30203 tapered roller bearing can bear the huge radial and axial loads generated during the operation of construction machinery, ensuring the stable operation of key components of the equipment, and adapting to the harsh working environment and high-intensity operation requirements of construction sites.
