NU2322ECM High Load Cylindrical Roller Bearing / Roller Slewing Bearing

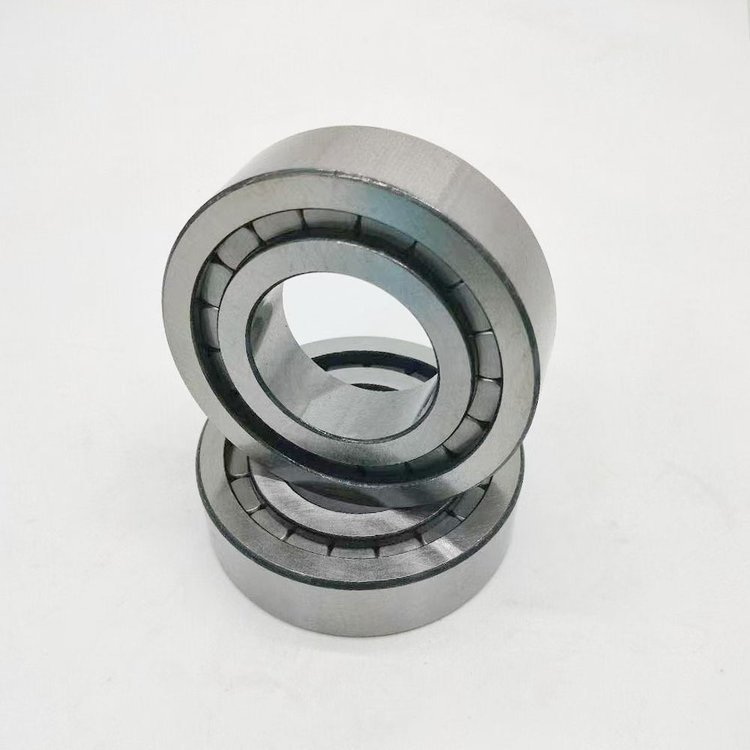

Introduction to NU2322ECJ Cylindrical Roller Bearing

The NU2322ECJ is a high-performance cylindrical roller bearing designed for heavy-duty industrial applications requiring exceptional radial load capacity and operational reliability. As part of the NU series, it features a separable design and optimized roller geometry, making it ideal for scenarios demanding high-speed rotation and precise alignment. Below is a detailed technical overview based on industry standards and typical specifications:

I. Structural Design & Core Features

1. Separable Construction

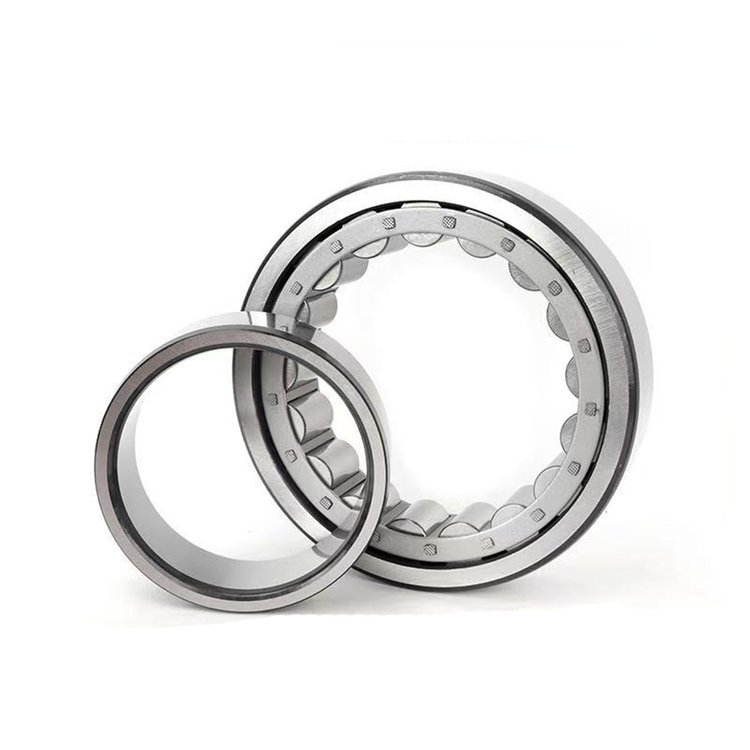

   The NU2322ECJ adopts a split inner ring design with no inner ring rib, allowing independent installation of the inner and outer rings . This feature significantly reduces maintenance complexity, particularly in large-scale machinery where shaft disassembly is impractical. The outer ring incorporates double ribs for axial stability, while the inner ring’s ribless design enables axial movement to accommodate thermal expansion or misalignment.
2. Optimized Roller Technology
   • ECJ Suffix Interpretation:
     • EC: Refers to optimized roller crowning (e.g., SKF’s EC-series rollers reduce edge stress by 30% compared to standard designs) .
     • J: Typically denotes a machined brass cage for enhanced load distribution and resistance to high-speed centrifugal forces .
   • Material: Rollers and rings are forged from high-carbon chromium bearing steel (GCr15), heat-treated to achieve HRC 58–62 surface hardness, ensuring wear resistance and a 20% longer lifespan than conventional bearings.
3. Sealing & Protection
   While standard configurations often include open-type designs for maximum heat dissipation, custom variants may feature rubber seals (2RS) or labyrinth seals (IP54) for dusty or wet environments .

II. Key Technical Parameters (Typical Values)

III. Performance Advantages

1. High-Speed Stability
   The machined brass cage (J-type) minimizes roller skidding at high speeds, achieving a DN value (diameter × speed) of up to 1.2 million—comparable to premium deep-groove ball bearings . This makes it suitable for high-speed motors and gearboxes.
2. Radial Load Dominance
   With a radial load capacity 30% higher than self-aligning ball bearings, the NU2322ECJ excels in applications like conveyor rollers and industrial gear reducers. Axial loads must be limited or managed via auxiliary bearings (e.g., paired with HJ-type adapter rings) .
3. Thermal Adaptability
   • C3 Clearance Option: Available for temperature fluctuations exceeding 80°C (e.g., hot rolling mills), ensuring stable operation under thermal expansion .
   • Temperature Range: -30°C to +120°C with standard lubricants; up to +150°C with high-temperature grease.

IV. Application Fields

1. Industrial Machinery
   • Gearboxes: Mainshaft supports in cycloidal-pinwheel reducers, where radial loads dominate.
   • Conveyors: Drive drums in mining belt systems, requiring 24/7 reliability under heavy loads.
2. Power Generation
   • Turbine generators and high-speed motors, leveraging the bearing’s low friction and vibration resistance.
3. Metallurgical Equipment
   • Backup rolls in cold rolling mills and work rolls in hot strip mills, withstanding cyclic loads during steel processing .
4. Mining & Construction
   • Crusher main shafts and vibrating screen mechanisms, where the separable design simplifies maintenance in remote locations.

V. Installation & Maintenance Guidelines

1. Precision Alignment
   • Radial Runout: Ensure ≤0.08 mm after installation using laser alignment tools .
   • Mounting Method: Hot fitting (≤120°C) is recommended for tight shaft fits to avoid material annealing.
2. Lubrication Strategy
   • Initial Grease Fill: 1/3 of internal space with NLGI Grade 2 extreme-pressure lithium grease.
   • Re-lubrication Interval: Every 2,000 operating hours or when grease temperature exceeds 90°C.
3. Condition Monitoring
   • Vibration Threshold: Alarm at ≥4.5 mm/s RMS (ISO 10816-3) to detect incipient failures.
   • Ferrography Analysis: Schedule quarterly oil analysis; replace bearings if wear particle concentration exceeds 50 ppm .

VI. Technical Alternatives

1. Cost-Effective Option:
   • NU2322E (stamped steel cage): 10–15% lower cost but with 20% reduced high-speed performance.
2. High-Temperature Variant:
   • NU2322ECJ/C3: Increased internal clearance for sustained operation at +150°C.
3. Corrosion-Resistant Design:
   • 316 stainless steel construction (customizable) for marine or chemical processing environments.

VII. Certifications & Compliance

• Standards: Complies with ISO 15, GB/T 283, and ABMA 9-1990 for dimensional and load ratings.
• Environmental: RoHS-compliant versions available with lead-free plating for EU markets.

VIII. Selection Recommendations

For critical applications (e.g., continuous casting machines), request third-party test reports (e.g., SGS material analysis) to verify consistency. Always consult the manufacturer’s technical datasheet for precise torque values and mounting tolerances.

The NU2322ECJ balances high radial load capacity, speed capability, and maintainability, making it a versatile choice for industries ranging from steel production to power generation.
