Machinery Double Row Self Aligning Bearing 1213 High Load Ball Bearings Wear Resistant

1213 Self-Aligning Ball Bearing: High Radial Load, Aligning & Durable For Machinery

I. Product Overview

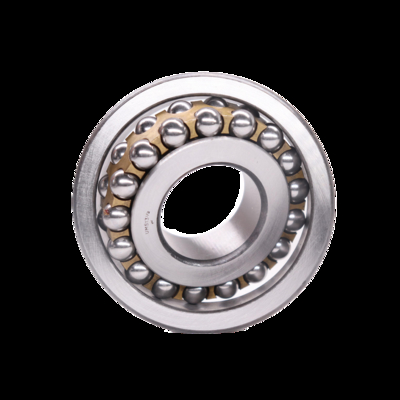

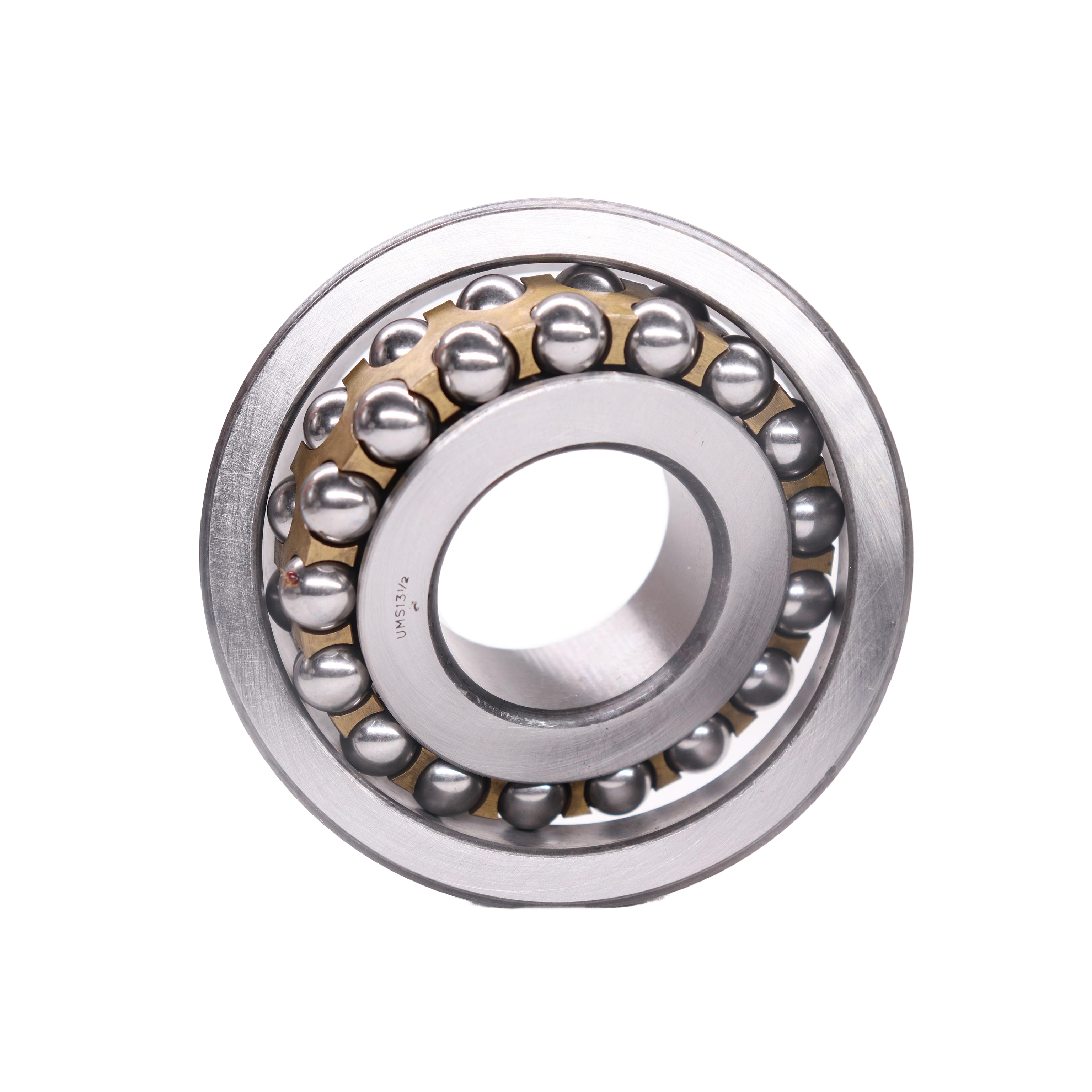

The 1213 self - aligning ball bearing is a specialized mechanical component designed to meet the demands of machinery operation in complex scenarios. As an integral part of the self - aligning ball bearing family, it features an inner diameter (d) of 65mm, an outer diameter (D) of 120mm, and a width (B) of 23mm. This dimensional configuration enables it to be applied in a wide array of situations where both radial loads need to be borne and shaft misalignment issues must be addressed.

II. Structural Design

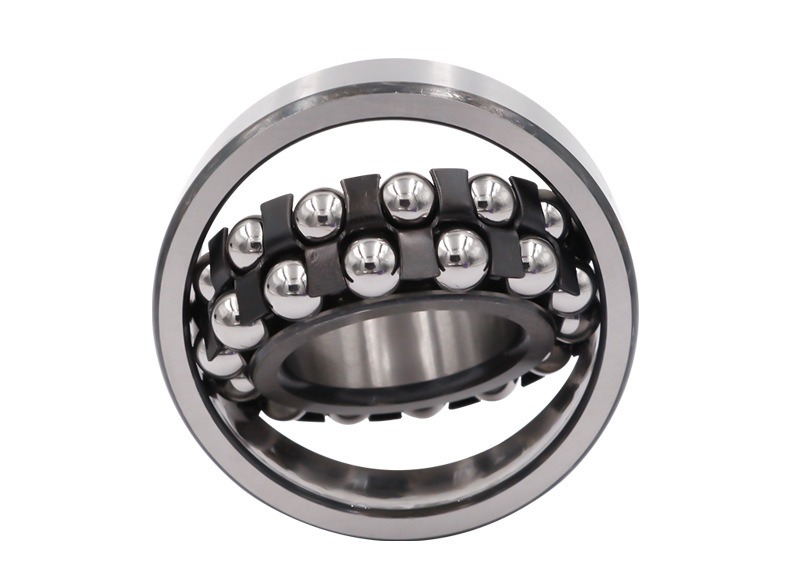

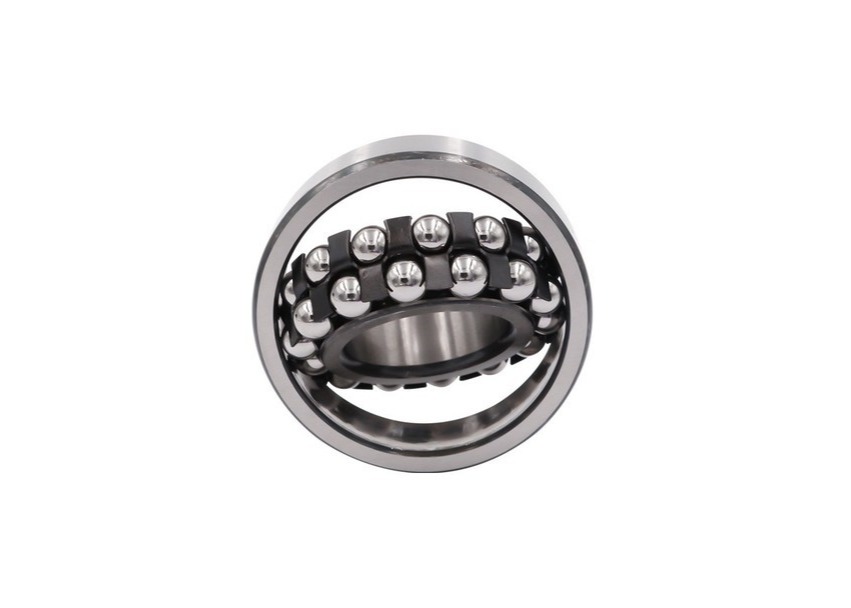

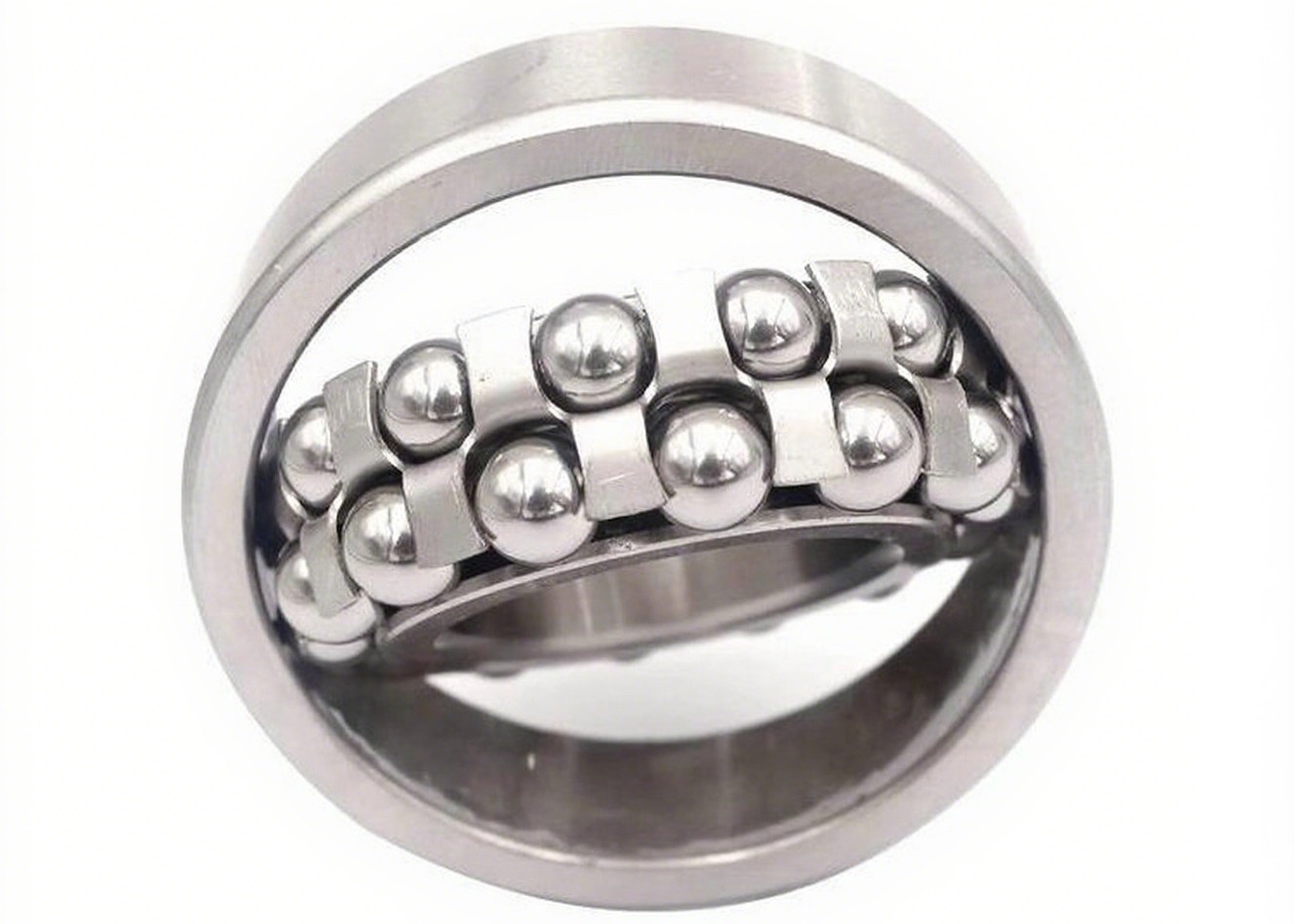

2.1 Rolling Elements

The 1213 bearing is equipped with two rows of spherical balls. These balls are fabricated from high - quality bearing steel, such as GCr15, which is renowned for its excellent hardness and wear - resistance. The manufacturing process involves strict quality control measures, ensuring that each ball has a smooth surface finish and precise dimensional accuracy. The spherical shape of the balls allows for a larger contact area with the raceways compared to some other bearing types, enhancing the bearing's ability to distribute loads evenly and reducing the risk of local stress concentrations.

2.2 Raceways

The inner ring of the 1213 bearing has a double - row raceway design, while the outer ring features a spherical raceway. The spherical outer - ring raceway is the key to the bearing's self - aligning functionality. It enables the inner ring and the balls to adjust their position relative to the outer ring, effectively compensating for misalignment between the shaft and the housing. The raceways on both the inner and outer rings are hardened through advanced heat - treatment processes. This results in a high surface hardness, typically within the HRC58 - 64 range, which provides outstanding wear - resistance and fatigue - resistance, thereby extending the bearing's service life under various operating conditions.

2.3 Cage

A high - strength cage, often made of steel, is employed to separate and guide the balls. The cage is precisely designed with pockets that hold the balls in place, preventing them from colliding with each other during operation. This ensures a smooth and stable rolling motion of the balls. In some advanced designs, the cage may be treated with special coatings or undergo additional heat - treatment. These treatments further enhance the cage's strength, wear - resistance, and its ability to operate in harsh environments, such as those with high temperatures or heavy contamination.

III. Performance Characteristics

3.1 Radial Load - Carrying Capacity

The 1213 self - aligning ball bearing is primarily designed to handle radial loads. Thanks to its double - row ball configuration and the large contact area between the balls and the raceways, it can withstand a substantial amount of radial force. Although the exact basic rated dynamic load rating (Cr) varies depending on the manufacturer and specific product specifications, it is generally suitable for applications where medium - to - heavy radial loads are present. This makes it a popular choice in machinery such as motors, conveyors, and some types of industrial equipment.

3.2 Limited Axial Load - Carrying Ability

While the 1213 bearing is mainly for radial loads, it can also accommodate a small amount of axial load in either direction. However, it's important to note that if the bearing is subjected to a large or pure axial load, it may cause uneven loading on the balls, which can lead to premature wear and reduced bearing life. The rib structure on the inner and outer rings, along with the arrangement of the balls, enables the bearing to resist a limited amount of axial thrust. This limited axial load - carrying capacity can be useful in applications where there are minor axial forces in addition to the dominant radial loads.

3.3 Exceptional Self - Aligning Capability

The most distinctive feature of the 1213 bearing is its self - aligning property. The spherical outer - ring raceway allows the bearing to automatically adapt to misalignment between the shaft and the housing, up to a certain angle. In normal operating conditions, the bearing can tolerate a misalignment angle of approximately 2° - 4°. This self - aligning ability is extremely beneficial in applications where shaft deflection or misalignment is likely to occur. For example, in long - shaft machinery or equipment with flexible couplings, the 1213 bearing can help reduce stress concentrations in the bearing and connected components, preventing premature failure due to misalignment.

3.4 High - Speed Rotation Adaptability

The 1213 self - aligning ball bearing is designed to operate smoothly at relatively high speeds. The optimized design of the rolling elements, raceways, and cage, combined with proper lubrication, results in low friction and reduced vibration during high - speed rotation. The use of high - quality materials and precise manufacturing processes ensures that the bearing can maintain its performance even under high - speed conditions. However, like all bearings, its limiting speed is affected by factors such as lubrication type, operating temperature, and load conditions.

IV. Application Fields

4.1 Industrial Machinery

In industrial settings, the 1213 bearing finds extensive use in various machinery types. In large - scale industrial motors, it provides reliable support for the rotor, effectively handling the radial loads generated during operation. In conveyor systems, it enables smooth conveyor - belt movement by accommodating misalignment that may occur due to uneven installation or thermal expansion. In industrial gearboxes, the bearing aids in efficient power transmission while withstanding the complex loads from meshing gears. Its self - aligning feature is particularly valuable in industrial applications where shaft misalignment is a common issue, helping to improve the overall reliability and efficiency of the machinery.

4.2 Agricultural Machinery

Agricultural machinery often operates in harsh environments with significant vibrations and potential misalignment due to uneven terrain. The 1213 self - aligning ball bearing is well - suited for such applications. For example, in tractors, it can be used in the axle support systems to handle the heavy loads and misalignment caused by the tractor's movement over rough ground. In agricultural equipment like combine harvesters, the bearing can support the rotating parts, ensuring smooth operation even when the equipment is subject to vibrations and shocks during harvesting. Its ability to self - align helps to reduce wear and maintenance requirements, making it an ideal choice for agricultural machinery.

4.3 Textile Machinery

Textile machinery requires bearings that can operate smoothly and precisely under relatively high - speed conditions. The 1213 bearing is commonly used in textile machines such as spinning frames and looms. In spinning frames, it supports the rotating spindles, handling the radial loads while compensating for any misalignment that may occur due to the high - speed rotation and mechanical vibrations. In looms, the bearing helps to ensure smooth operation of the shuttle - moving mechanisms and other rotating parts. Its self - aligning property is crucial in maintaining the accuracy and efficiency of textile machinery, which is essential for producing high - quality textiles.

4.4 Woodworking Machinery

Woodworking machinery, such as sawmills and wood lathes, often experiences significant radial loads and vibrations during operation. The 1213 self - aligning ball bearing is suitable for these applications. In sawmills, it can be used in the support systems for the saw blades, handling the heavy radial forces generated during cutting while also adapting to any misalignment caused by the vibrations. In wood lathes, the bearing supports the rotating workpiece, allowing for smooth and accurate turning operations. Its ability to self - align helps to prevent premature wear and damage to the bearing and the machinery, ensuring long - term reliable operation in the demanding environment of woodworking.

V. Dimensions and Specification Parameters

VI. Maintenance Points

6.1 Lubrication Management

Proper lubrication is essential for the optimal performance and extended lifespan of the 1213 bearing. The choice of lubricant depends on various operating conditions, including temperature, speed, and load. For general applications, high - quality lithium - based grease is often a suitable choice. However, in high - temperature environments (above 120°C) or under heavy - load conditions, synthetic greases or oil - based lubricants may be more appropriate. The lubricant should be applied in the correct amount, typically filling about one - third to one - half of the bearing's internal space. Regular lubrication intervals should be determined based on the bearing's operating conditions. In normal operating conditions, lubrication may be required every few months, but in more demanding environments, it may need to be done more frequently. The lubricant should be replenished or replaced in a timely manner to maintain its lubricating properties and prevent premature wear of the bearing.

6.2 Regular Inspection

Regular inspection of the 1213 bearing is crucial to detect early signs of wear, damage, or misalignment. Visual inspections should be carried out periodically to check for any visible signs of cracks, corrosion, or abnormal wear on the bearing surfaces. In addition, vibration and temperature monitoring can be effective methods for detecting changes in the bearing's operating condition. An increase in vibration levels or a rise in temperature may indicate problems such as improper lubrication, excessive load, or misalignment. If any abnormal conditions are detected, the bearing should be thoroughly inspected. This may involve disassembling the bearing (if possible) to examine the internal components more closely. Necessary repairs or replacements should be carried out promptly to prevent further damage to the bearing and the connected machinery.

6.3 Installation Precautions

During installation, it is vital to ensure a clean working environment to prevent dust, debris, and contaminants from entering the bearing. Specialized installation tools should be used to avoid damaging the bearing during the installation process. The bearing should be installed correctly on the shaft and in the housing, with the appropriate fit. For a cylindrical - bore bearing like the 1213, an interference fit is typically used between the inner ring and the shaft to prevent slippage. The interference should be carefully controlled to ensure proper installation without over - stressing the bearing. When installing the outer ring in the housing, a clearance fit is usually recommended to allow for the bearing's self - aligning function. The bearing should also be properly aligned with the shaft and the housing to ensure optimal performance. Any misalignment during installation can lead to uneven loading and premature failure of the bearing.

6.4 Storage Considerations

When the 1213 bearing is not in use, it should be stored in a clean, dry, and well - ventilated area. It should be protected from moisture, corrosive gases, and extreme temperatures. Bearings should be stored in their original packaging or wrapped in anti - rust paper to prevent rusting. They should be placed horizontally to avoid uneven stress on the rolling elements and raceways. Regular checks should be carried out during storage to ensure that the bearings remain in good condition. If any signs of rust or damage are detected during storage, appropriate measures should be taken to address the issues before the bearing is put into use. This may include cleaning, re - lubricating, or replacing the bearing if necessary.
