High Precision Self Aligning Ball Bearing 1220 Low Friction Agricultural Machinery Bearings

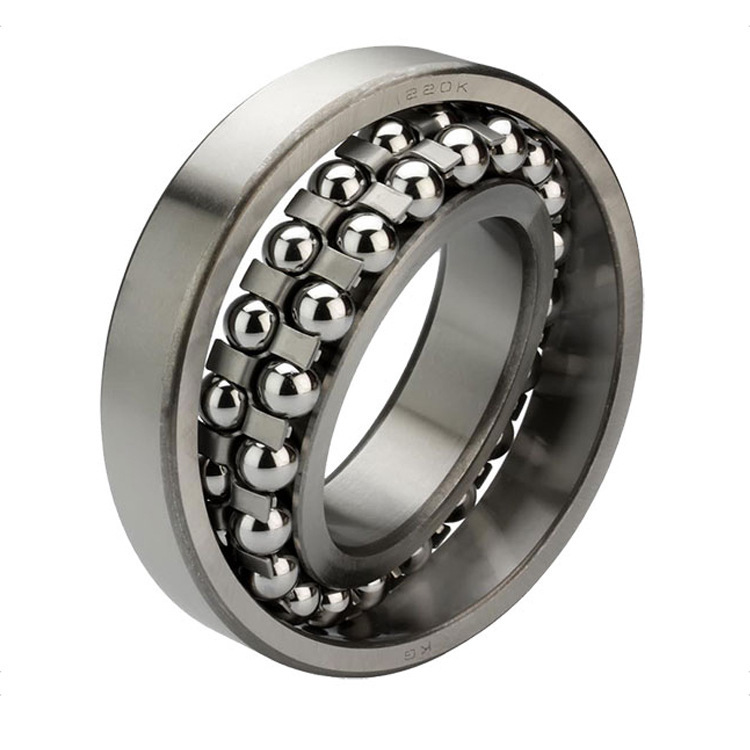

1220 Self-Aligning Ball Bearing For Industrial & Agricultural Machinery

In the ever - evolving and intricate domain of mechanical engineering, the 1220 self - aligning ball bearing stands out as a critical and high - performance component. Engineered with meticulous precision and innovative concepts, this bearing plays a pivotal role in guaranteeing the seamless operation of a wide array of machinery across diverse industries. Its distinct design and exceptional features render it an optimal choice for applications where shaft misalignment and specific load - bearing challenges are commonly encountered.

I. Design and Structure

Inner and Outer Rings

The 1220 bearing is equipped with precisely machined inner and outer rings. The inner ring, featuring a bore diameter of 100 mm, is designed to fit snugly and securely onto shafts of corresponding dimensions. This tight fit is of utmost importance as it effectively minimizes any potential play or misalignment during operation. It enables smooth power transfer between the shaft and the bearing, significantly reducing energy losses at the interface. The outer ring, with an outer diameter of 180 mm, is constructed to achieve an ideal balance between load - carrying capacity and space constraints. Its robust and durable design allows it to efficiently distribute both radial and axial loads, ensuring reliable performance even in the harshest operating conditions.

Spherical Rolling Elements

At the core of the 1220 bearing are its spherical rolling elements. These balls are fabricated from high - quality bearing steel, which has undergone a series of sophisticated processing procedures. The resulting material combines high hardness, remarkable strength, and excellent wear resistance. The spherical shape of these rolling elements is machined with extreme precision to ensure smooth rolling and efficient load distribution. As the bearing rotates, the balls roll along the raceways of the inner and outer rings with minimal friction. This not only enables the bearing to operate with reduced energy consumption but also contributes to its long - term reliability and durability.

Cage Assembly

The rolling elements are guided and maintained in position by a cage, which is an integral part of the bearing's structure. For the 1220 bearing, the cage is typically made from either steel or brass, depending on the specific requirements of the application. The primary function of the cage is to keep the rolling elements evenly spaced and properly aligned, preventing them from colliding with each other. Such collisions could otherwise lead to increased wear and reduced performance. By maintaining the proper alignment of the rolling elements, the cage enhances the smoothness of the bearing's rotation. Additionally, the cage plays a crucial role in retaining the lubricant within the bearing, ensuring that the rolling elements are continuously and adequately lubricated. This further reduces friction and extends the service life of the bearing.

Self - Aligning Feature

One of the most notable and valuable features of the 1220 bearing is its self - aligning ability. The outer ring of the bearing is designed with a spherical raceway. This unique design allows the bearing to automatically adjust to shaft misalignment or housing deflection within a certain range. In applications where achieving and maintaining perfect alignment is difficult, such as in long - shaft systems or in equipment that is subject to vibrations or thermal expansion, this self - aligning feature becomes invaluable. By compensating for misalignment, the bearing helps to reduce stress on its components, thereby enhancing the overall performance and lifespan of the bearing.

II. Key Dimensions

III. Performance Attributes

High Radial Load - Carrying Capacity

Despite its relatively compact size considering its application range, the 1220 bearing is engineered to handle substantial radial loads. With a dynamic load rating of 64.0 kN, it can support a wide range of applications, including those with moderate - to - heavy - duty requirements. In industrial machinery such as medium - sized conveyors or large - scale fans, the 1220 bearing can effectively bear the radial loads generated during operation. This ensures that the equipment runs smoothly and reliably, minimizing the risk of mechanical failures due to overloading. By efficiently transmitting the radial loads, the bearing contributes to the overall stability and productivity of the machinery.

Exceptional Self - Aligning Capability

The self - aligning ability of the 1220 bearing is one of its key performance attributes. The spherical raceway of the outer ring allows the bearing to adapt to shaft misalignment or housing deflection up to a certain angle. This feature is particularly useful in applications where misalignment is likely to occur, such as in flexible shaft couplings or in machinery that is subject to thermal expansion or contraction. In large - scale textile machinery, for example, the 1220 bearing can compensate for any misalignment in the rollers, ensuring smooth fabric processing and consistent product quality. The self - aligning function helps to reduce stress on the bearing and other components, extending the service life of the entire system.

Low Friction and Smooth Operation

Thanks to its well - designed structure and high - quality components, the 1220 bearing operates with low friction and remarkable smoothness. The spherical rolling elements, in combination with the carefully engineered raceways and cage, work together to minimize resistance during rotation. This results in reduced energy consumption and lower operating temperatures, making the bearing highly suitable for applications where efficiency and reliability are of paramount importance. In precision machinery such as medium - sized machine tools or certain medical devices, the smooth operation of the 1220 bearing is essential for ensuring accurate and consistent performance.

Good Vibration Damping

The 1220 bearing also exhibits excellent vibration - damping properties. The spherical shape of the rolling elements and the self - aligning structure collaborate to absorb and dissipate vibrations generated during operation. This makes it an ideal choice for applications where reducing vibration and noise is a top priority, such as in high - end office equipment or in equipment used in sensitive environments. In medium - sized air - conditioning units, for example, the 1220 bearing can help to minimize vibrations, ensuring quiet and efficient operation. By reducing vibration, the bearing not only improves the comfort of operation for users but also reduces the risk of damage to other components due to excessive vibration.

IV. Material Quality

Bearing Steel for Rings and Balls

The inner and outer rings, as well as the rolling elements of the 1220 bearing, are typically made from high - carbon chromium bearing steel. This type of steel is highly regarded for its high hardness, which enables the bearing to withstand substantial radial loads without undergoing deformation. The high strength of the bearing steel also ensures that the bearing can endure the stresses associated with high - speed rotation and moderate - to - heavy - duty applications. Moreover, the bearing steel exhibits outstanding wear resistance, which is crucial for extending the bearing's service life. The wear - resistant properties of the steel slow down the rate at which the surfaces of the bearing components wear down over time, thereby maintaining the bearing's performance and reliability.

Cage Materials

The cage in the 1220 bearing can be made from either steel or brass, depending on the specific demands of the application. Steel cages offer high strength and are suitable for applications where the bearing is subjected to relatively high rotational speeds and moderate to heavy loads. Brass cages, on the other hand, provide good corrosion resistance and low friction, making them ideal for use in environments where corrosion is a concern or where smooth operation is critical. The choice of cage material is carefully considered to ensure optimal performance and longevity of the bearing.

V. Applications

Industrial Machinery

In the industrial sector, the 1220 bearing finds extensive use in various types of machinery. In medium - sized manufacturing equipment like certain machine tools, it provides reliable support for the spindle, ensuring precise machining operations. The bearing's high load - carrying capacity and self - aligning ability are essential for maintaining the accuracy of the machine tool during medium - duty cutting processes. In industrial fans and blowers of a larger size, the 1220 bearing enables smooth rotation of the impeller, ensuring efficient air movement. The bearing's vibration - damping properties help to reduce noise levels, making it suitable for use in both industrial and commercial environments.

Automotive Industry

In the automotive domain, the 1220 bearing can be employed in some larger - scale or specialized components. For example, in certain heavy - duty trucks' drive shafts or in some industrial vehicle's steering column joints, where angular misalignments are common due to the vehicle's operation on rough terrains or under heavy - load conditions, the 1220 bearing's self - aligning feature ensures reliable performance and reduces wear on the components. Its ability to handle significant radial loads makes it suitable for these demanding automotive applications.

Agricultural Machinery

The agricultural industry also benefits from the use of the 1220 bearing. In larger tractors and heavy - duty harvesters, which operate on uneven terrains and are subject to substantial vibrations and misalignments, the 1220 bearing provides stable support for various rotating components. In the transmission systems and axle assemblies of large tractors, the bearing's high load - carrying capacity and self - aligning ability are crucial for ensuring smooth operation and minimizing downtime. In large - scale combine harvesters, the 1220 bearing supports the rotating parts such as the threshing drum and conveyor belts, contributing to efficient harvesting operations.

Textile Machinery

In the textile industry, the 1220 bearing plays an important role in ensuring smooth and consistent rotation in large - scale spinning and weaving machines. In large - scale spinning machines, it supports the spinning shafts, allowing for high - speed and stable rotation. The self - aligning feature of the 1220 bearing compensates for any misalignment in the shafts, which is essential for producing high - quality yarn. In large - scale weaving looms, the bearing enables the smooth movement of components like the shuttle and the loom's main drive shaft, ensuring efficient fabric production. The bearing's low - friction and vibration - damping properties contribute to the overall quality and productivity of textile manufacturing processes.

VI. Conclusion

The 1220 self - aligning ball bearing, with its innovative design, high - quality materials, outstanding performance characteristics, and wide range of applications, is a versatile and essential component in the mechanical engineering field. Whether in high - precision industrial machinery, the dynamic automotive industry, the rugged agricultural sector, or the delicate textile manufacturing, it consistently delivers reliable performance, contributing to the efficient operation of diverse mechanical systems. Its ability to handle misalignment, moderate to heavy loads, and relatively high speeds makes it a preferred choice for engineers and designers looking to optimize the performance and reliability of their machinery.
