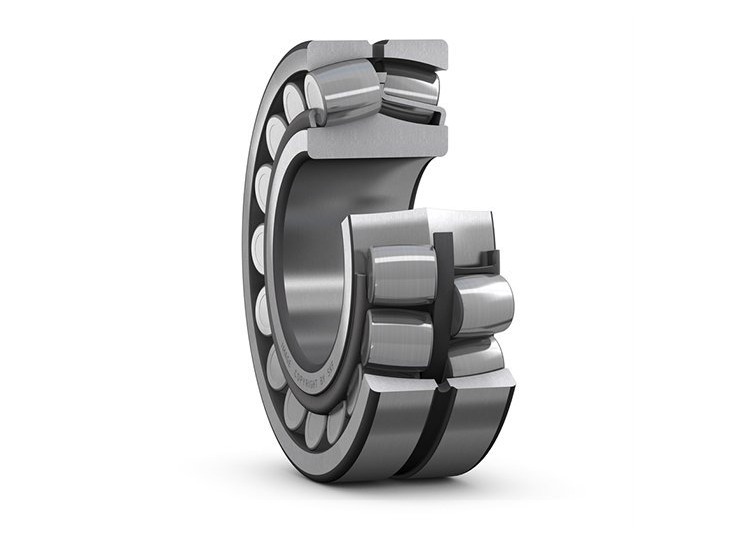

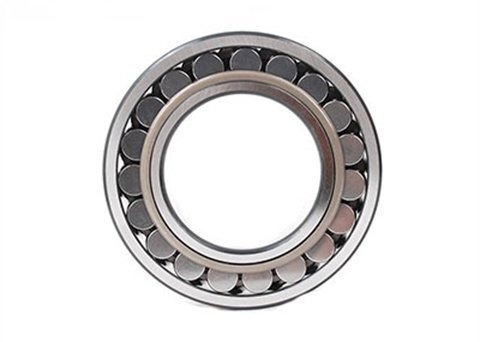

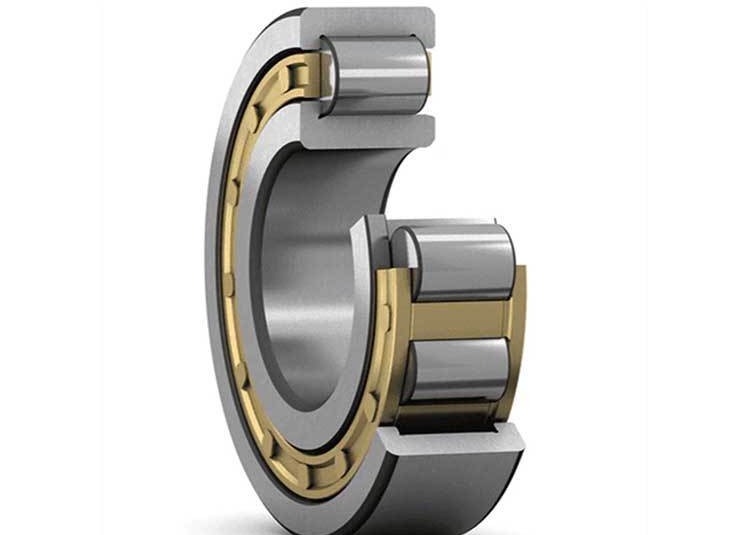

Low Friction Double Row Self Aligning Roller Bearing 23130 For Heavy Machinery

1
MOQ
Low Friction Double Row Self Aligning Roller Bearing 23130  For Heavy Machinery
Features Gallery Product Description Chat Now
Features
Specifications
Bearing Series: Double Row Self Aligning Roller Bearing 23130
Bearing Material: Bearing Steel GCr15
Inner Diameter: 150 Mm
Outer Diameter: 250 Mm
Width: 80 Mm
Model: Customizable
Highlight:

Low Friction Self Aligning Roller Bearing

,

Double Row Self Aligning Roller Bearing 23130

,

Heavy Machinery 23130 Bearing

Basic Infomation
Place of Origin: CHINA
Brand Name: Kesle
Payment & Shipping Terms
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union, MoneyGram,PayPal
Product Description

23130 Self-Aligning Roller Bearing for Heavy Machinery & Energy Sectors

In the dynamic landscape of mechanical engineering, the 23130 self-aligning roller bearing emerges as a pivotal component, engineered to excel in demanding operational conditions. Its design philosophy revolves around catering to high-load scenarios and compensating for shaft misalignments, making it an essential element across a broad spectrum of heavy-duty machinery. This comprehensive product introduction delves into the intricate details of its design, performance capabilities, material composition, applications, and maintenance requisites.

I. Design and Structure

Inner Ring and Outer Ring

The inner ring of the 23130 bearing features a double-row raceway configuration, meticulously machined to match the 150mm shaft diameter with utmost precision. This tight fit ensures seamless force transmission post-installation, minimizing any potential for slippage and optimizing mechanical efficiency. The outer ring, on the other hand, is characterized by its spherical raceway, a defining structural element that endows the bearing with its self-aligning prowess. This unique design allows the bearing to effectively accommodate installation discrepancies between the shaft and the bearing housing, typically within an angular range of 1° - 2.5°. By mitigating misalignment-induced stresses, the bearing's longevity and reliability are significantly enhanced.

With an outer diameter of 250mm and a width of 80mm, the bearing's overall dimensions strike a balance between load-bearing capacity and spatial compatibility. The outer ring's wall thickness has been strategically increased, bolstering its resistance to impact forces and providing a more stable foundation for the raceway. This design choice renders the 23130 bearing particularly well-suited for applications involving long-term exposure to cyclic loading.

Rolling Elements and Cage

At the heart of the 23130 bearing are its double-row barrel-shaped rollers. These rollers are designed with a curved profile that synergistically interacts with the outer ring's spherical raceway, enabling the bearing to adeptly handle both radial and bidirectional axial loads. Constructed from high-grade bearing steel, the rollers undergo a rigorous precision grinding process, resulting in a surface roughness of less than Ra0.1μm. This ultra-smooth finish is instrumental in reducing friction during rolling, thereby enhancing the bearing's energy efficiency and operational smoothness.

The cage, typically crafted from brass, plays a crucial role in maintaining the orderly arrangement of the rollers. Through a segmented design, the cage ensures that the rollers are evenly spaced, providing each with ample room for free rotation. During high-speed operation, the cage also serves as a guiding mechanism, steering the rollers along their intended paths and preventing collisions that could otherwise lead to premature wear. For applications in extreme environments, such as high-temperature or corrosive settings, alternative cage materials like steel or nylon are available, offering enhanced performance and durability.

Sealing Structure (Optional)

Certain variants of the 23130 bearing come equipped with either contact or non-contact seals. The contact seal, fashioned from nitrile rubber, forms a tight seal with the inner ring, effectively repelling dust and moisture. This makes it an ideal choice for applications in dusty or humid environments, where protection against contaminants is paramount. In contrast, the non-contact seal employs a labyrinth design to minimize friction, making it more suitable for high-speed applications. This seal can accommodate rotational speeds of up to 3000rpm, ensuring smooth operation even under demanding conditions.

II. Key Parameters

Parameter Value
Inner Diameter (d) 150mm
Outer Diameter (D) 250mm
Width (B) 80mm

III. Performance Advantages

Exceptional Load-Carrying Capacity

The 23130 bearing's double-row roller design, combined with an optimized contact angle, endows it with an impressive basic dynamic load rating of 725kN and a static load rating of 1180kN. This robust load-bearing capacity enables the bearing to effortlessly handle the substantial loads encountered in heavy machinery applications. Whether it's the intense impact forces in mining crushers or the high-pressure rolls in metallurgical mills, the 23130 bearing demonstrates remarkable resilience, withstanding continuous heavy loading without succumbing to fatigue failure.

Superior Self-Aligning Capability

The seamless interaction between the outer ring's spherical raceway and the barrel-shaped rollers equips the 23130 bearing with an outstanding self-aligning ability. This feature is particularly valuable in long-shaft applications, such as those found in paper machine press rolls and wind turbine main shafts. By automatically compensating for shaft deflection or installation misalignments, the bearing effectively reduces edge stresses, resulting in a service life extension of over 30%. This not only enhances the reliability of the equipment but also minimizes maintenance requirements and associated costs.

Robust Wear Resistance and Temperature Stability

Constructed from high-carbon chromium bearing steel (SUJ2), the bearing rings and rollers are heat-treated to achieve a hardness of HRC60 - 65. Additionally, the surface is phosphated to further enhance wear resistance. The bearing exhibits excellent dimensional stability and mechanical integrity within the temperature range of -40°C to 120°C. For applications requiring operation at higher temperatures, specially heat-treated variants are available, capable of withstanding temperatures exceeding 200°C. This makes the 23130 bearing suitable for a wide range of industrial applications, including those in high-temperature environments such as foundries and power plants.

Low Friction and Vibration Damping

The precision-machined raceways and rollers of the 23130 bearing contribute to a remarkably low friction coefficient, as low as 0.0015. This not only reduces energy consumption but also enhances the bearing's overall efficiency. Moreover, the double-row symmetrical design ensures uniform load distribution, resulting in a vibration velocity level that can be effectively controlled below 65dB during operation. This makes the bearing an ideal choice for applications where precision and smooth operation are critical, such as in machine tool spindles and high-precision manufacturing equipment.

IV. Material Quality

Material of Rings and Rollers

The core material of the 23130 bearing is high-purity bearing steel (GCr15SiMn), processed using a vacuum degassing technique to eliminate internal pores and inclusions. This results in a material with exceptional density and mechanical properties. The rollers undergo a series of manufacturing processes, including cold heading forming and high-temperature tempering, which contribute to a uniform internal structure. The impact toughness of the material exceeds 12J/cm², significantly enhancing the bearing's resistance to fatigue and ensuring long-term reliability under demanding operating conditions.

Cage Material

  • Brass Cage (H62): Renowned for its excellent thermal conductivity and mechanical strength, the brass cage is well-suited for medium to high-speed applications with heavy loads. It can effectively dissipate heat generated during operation and maintain structural integrity up to temperatures of 150°C.
  • Steel Cage (No. 10 Steel): After surface carburizing treatment, the steel cage attains a hardness of HRC55 - 60, making it highly resistant to impact. This makes it an ideal choice for applications characterized by severe vibration and shock loads, such as in construction machinery and mining equipment.
  • Nylon Cage (PA66+GF30): Offering the advantages of low weight and a low friction coefficient, the nylon cage also exhibits good corrosion resistance. However, its operating temperature is limited to below 120°C. It is commonly used in applications where weight reduction and corrosion resistance are key requirements, such as in some types of food processing machinery.

V. Application Fields

Heavy Industrial Machinery

In the mining sector, the 23130 bearing is deployed in the eccentric shafts of jaw crushers, where it must endure the massive crushing forces and frequent impact loads associated with the rock-breaking process. In the metallurgical industry, it provides essential support for the work rolls in rolling mills, withstanding the combined challenges of high temperatures and intense rolling pressures.

Construction Machinery

The output shafts of gearboxes and slewing bearing components in loaders and excavators often rely on the 23130 bearing. Its ability to resist eccentric loads ensures stable power transmission, even when the machinery is operating on uneven terrain. In crane winches, the bearing's high load-carrying capacity is crucial for ensuring the safe and reliable lifting of heavy loads.

Energy Equipment

Wind turbine main shaft systems benefit significantly from the self-aligning capabilities of the 23130 bearing. As the blades rotate, they generate forces that can cause shaft deflection, which the bearing can effectively compensate for while simultaneously bearing the radial and axial loads converted from wind energy. In hydropower stations, the bearing's wear resistance makes it suitable for use in water turbine main shafts, where it must operate in submerged or humid conditions for extended periods.

Papermaking and Textile Machinery

In large paper machines, the 23130 bearing is employed in calender rolls and drying roll groups. Its low vibration characteristics are essential for ensuring uniform paper pressing and drying, thereby maintaining product quality. In the textile industry, dyeing and finishing equipment utilize the bearing's high-temperature and corrosion resistance to operate smoothly in humid and hot environments, ensuring continuous and reliable production.

VI. Installation and Maintenance

During installation, it is imperative to use specialized tools, such as hydraulic nuts, to ensure that the inner ring is subjected to uniform force. This precautionary measure helps prevent deformation caused by improper installation methods, such as hammering. For models with tapered inner rings, the clearance can be precisely adjusted using a lock nut, with the recommended working clearance range typically falling between 0.12 - 0.25mm.

In terms of lubrication, for grease-lubricated applications, extreme pressure lithium-based grease (NLGI Grade 2) is recommended. The filling amount should be carefully controlled, typically ranging from 1/3 to 1/2 of the bearing's internal space. For high-speed applications, oil lubrication is more suitable, with ISO VG 46 or 68 lubricating oil being commonly used. When employing forced lubrication, the oil pressure should be maintained within the range of 0.1 - 0.3MPa.

Regular maintenance is crucial for ensuring the bearing's optimal performance and longevity. This includes monitoring the bearing temperature, which should generally remain below 70°C, as well as checking for abnormal vibration and noise. Any signs of abnormality should be promptly addressed, often necessitating the replacement of the bearing. During disassembly, a puller should be used to avoid causing damage to the journal and bearing housing hole, ensuring that the surrounding components remain in good condition for future use.

VII. Conclusion

The 23130 self-aligning roller bearing represents a pinnacle of engineering design, offering a combination of high-strength construction, exceptional self-aligning capabilities, and broad adaptability to diverse operating conditions. Whether confronted with extreme loads, shaft misalignments, or challenging environmental factors, this bearing consistently delivers stable performance. Its pivotal role in enabling the efficient operation of industrial machinery underscores its importance as an indispensable component in modern mechanical engineering, driving progress across a wide range of industries.
