Self Aligning Double Row Roller Bearing 22244 For Energy Sectors

22244 Self-Aligning Roller Bearing for Heavy Machinery & Energy Sectors

In the complex world of mechanical engineering, the 22244 bearing emerges as a symbol of advanced design and reliable performance. Tailored to meet the stringent requirements of a wide range of industrial applications, this in - depth product introduction will explore the design nuances, performance capabilities, material composition, application scenarios, and maintenance needs of the 22244 bearing, offering a comprehensive understanding of its crucial role in contemporary machinery.

I. Design and Structure

Inner Ring and Outer Ring

The inner ring of the 22244 bearing is precisely machined with a double - row raceway, carefully crafted to interface perfectly with a shaft diameter of 220mm. This precise fit not only ensures efficient force transmission after installation but also minimizes the risk of slippage, optimizing mechanical performance. The outer ring, characterized by its spherical raceway, endows the bearing with self - aligning capabilities. This unique design feature enables the bearing to effectively adapt to misalignments between the shaft and the bearing housing, typically within an angular range of 1° - 2.5°. By reducing misalignment - induced stresses, the bearing's operational lifespan and reliability are significantly enhanced.

With an outer diameter of 400mm and a width of 108mm, the 22244 bearing strikes a balance between load - bearing capacity and spatial constraints. The outer ring's wall thickness has been strategically increased, strengthening its resistance to impact forces and providing a more stable base for the raceway. This design makes the 22244 bearing particularly suitable for applications involving long - term exposure to cyclic loading.

Rolling Elements and Cage

At the core of the 22244 bearing is a double - row arrangement of barrel - shaped rollers. These rollers, with their curved profile, work in harmony with the outer ring's spherical raceway, allowing the bearing to skillfully handle both radial and bidirectional axial loads. Made from high - grade bearing steel, the rollers undergo a rigorous precision grinding process, resulting in a surface roughness of less than Ra0.1μm. This ultra - smooth finish is crucial for reducing friction during rolling, thereby improving the bearing's energy efficiency and operational smoothness.

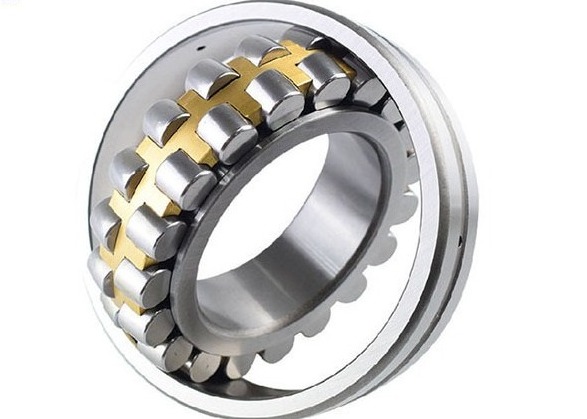

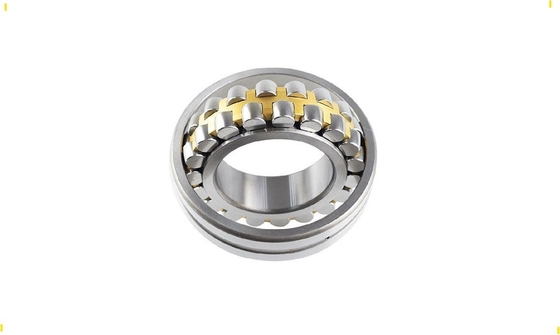

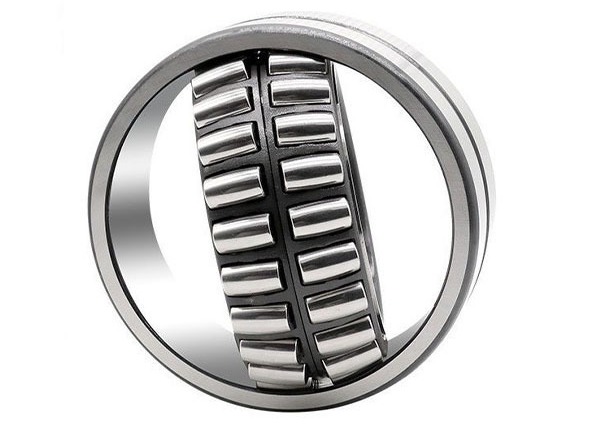

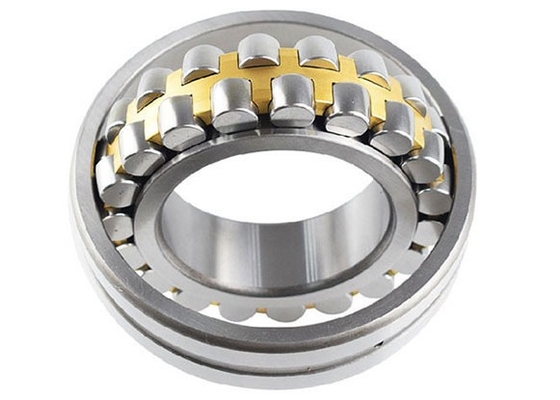

The cage design of the 22244 bearing varies depending on the specific model. Some models feature a brass cage, which offers excellent thermal conductivity and mechanical strength. The brass cage can effectively dissipate heat generated during operation, making it well - suited for medium to high - speed applications with heavy loads. It can maintain structural integrity up to temperatures of 150°C. Other models may use a steel cage, which provides high strength and durability, suitable for applications with extremely heavy loads. The cage, regardless of the material, plays a vital role in keeping the rollers in an orderly arrangement, ensuring they are evenly spaced and have enough room for unrestricted rotation.

Sealing Structure (Optional)

Certain versions of the 22244 bearing are equipped with either contact or non - contact seals. The contact seal, made of nitrile rubber, forms a tight seal with the inner ring, effectively keeping out dust and moisture. This makes it an ideal choice for applications in dusty or humid environments, where protection against contaminants is of utmost importance. In contrast, the non - contact seal, with its labyrinth design, minimizes friction, making it more suitable for high - speed applications. This seal can handle rotational speeds of up to 3000rpm, ensuring smooth operation even under demanding conditions.

II. Key Parameters

III. Performance Advantages

Exceptional Load - Carrying Capacity

The 22244 bearing's double - row roller design, combined with an optimized contact angle, gives it an impressive basic dynamic load rating of 1570kN and a static load rating of 2430kN. This robust load - bearing capacity allows the bearing to easily bear the substantial loads encountered in heavy machinery applications. Whether it's the intense impact forces in mining crushers or the high - pressure rolls in metallurgical mills, the 22244 bearing shows remarkable resilience, withstanding continuous heavy loading without suffering from fatigue failure.

Superior Self - Aligning Capability

The seamless interaction between the outer ring's spherical raceway and the barrel - shaped rollers equips the 22244 bearing with excellent self - aligning ability. This feature is especially valuable in long - shaft applications, such as those found in paper machine press rolls and wind turbine main shafts. By automatically compensating for shaft deflection or installation misalignments, the bearing effectively reduces edge stresses, resulting in a service life extension of over 30%. This not only improves the reliability of the equipment but also minimizes maintenance requirements and associated costs.

Robust Wear Resistance and Temperature Stability

Constructed from high - carbon chromium bearing steel (SUJ2), the bearing rings and rollers are heat - treated to achieve a hardness of HRC60 - 65. Additionally, the surface is phosphated to further enhance wear resistance. The bearing shows excellent dimensional stability and mechanical integrity within the temperature range of - 40°C to 120°C. For applications that require operation at higher temperatures, specially heat - treated variants are available, capable of withstanding temperatures exceeding 200°C. This makes the 22244 bearing suitable for a wide variety of industrial applications, including those in high - temperature environments such as foundries and power plants.

Low Friction and Vibration Damping

The precision - machined raceways and rollers of the 22244 bearing contribute to a very low friction coefficient, as low as 0.0015. This not only reduces energy consumption but also improves the bearing's overall efficiency. Moreover, the double - row symmetrical design ensures uniform load distribution, resulting in a vibration velocity level that can be effectively controlled below 65dB during operation. This makes the bearing an ideal choice for applications where precision and smooth operation are critical, such as in machine tool spindles and high - precision manufacturing equipment.

IV. Material Quality

Material of Rings and Rollers

The main material of the 22244 bearing is high - purity bearing steel (GCr15SiMn), processed using a vacuum degassing technique to remove internal pores and inclusions. This results in a material with excellent density and mechanical properties. The rollers go through a series of manufacturing processes, including cold heading forming and high - temperature tempering, which contribute to a uniform internal structure. The impact toughness of the material exceeds 12J/cm², significantly enhancing the bearing's resistance to fatigue and ensuring long - term reliability under demanding operating conditions.

Cage Material

As mentioned earlier, the cage material can be brass (H62) for some models. Brass is known for its excellent thermal conductivity and mechanical strength. It can effectively dissipate heat generated during the bearing's operation, which is crucial for maintaining stable performance, especially in applications where high speeds and heavy loads generate a lot of heat. The mechanical strength of the brass cage allows it to withstand the forces exerted on it during the bearing's operation, ensuring the proper alignment and movement of the rollers. For other models with a steel cage, the high - strength steel provides durability and can withstand extreme loads. The steel cage is often used in applications where the bearing is subjected to harsh operating conditions.

V. Application Fields

Heavy Industrial Machinery

In the mining industry, the 22244 bearing is used in the eccentric shafts of jaw crushers, where it has to endure the massive crushing forces and frequent impact loads associated with the rock - breaking process. In the metallurgical industry, it provides essential support for the work rolls in rolling mills, withstanding the combined challenges of high temperatures and intense rolling pressures.

Construction Machinery

The output shafts of gearboxes and slewing bearing components in loaders and excavators often rely on the 22244 bearing. Its ability to resist eccentric loads ensures stable power transmission, even when the machinery is operating on uneven terrain. In crane winches, the bearing's high load - carrying capacity is crucial for ensuring the safe and reliable lifting of heavy loads.

Energy Equipment

Wind turbine main shaft systems benefit greatly from the self - aligning capabilities of the 22244 bearing. As the blades rotate, they generate forces that can cause shaft deflection, which the bearing can effectively compensate for while also bearing the radial and axial loads converted from wind energy. In hydropower stations, the bearing's wear resistance makes it suitable for use in water turbine main shafts, where it has to operate in submerged or humid conditions for long periods.

Papermaking and Textile Machinery

In large paper machines, the 22244 bearing is used in calender rolls and drying roll groups. Its low vibration characteristics are essential for ensuring uniform paper pressing and drying, thus maintaining product quality. In the textile industry, dyeing and finishing equipment use the bearing's high - temperature and corrosion resistance to operate smoothly in humid and hot environments, ensuring continuous and reliable production.

VI. Installation and Maintenance

During installation, it is essential to use specialized tools, such as hydraulic nuts, to ensure that the inner ring is subjected to uniform force. This precaution helps prevent deformation caused by improper installation methods, such as hammering. For models with tapered inner rings, the clearance can be precisely adjusted using a lock nut, with the recommended working clearance range typically between 0.12 - 0.25mm.

In terms of lubrication, for grease - lubricated applications, extreme pressure lithium - based grease (NLGI Grade 2) is recommended. The filling amount should be carefully controlled, usually ranging from 1/3 to 1/2 of the bearing's internal space. For high - speed applications, oil lubrication is more suitable, with ISO VG 46 or 68 lubricating oil being commonly used. When using forced lubrication, the oil pressure should be maintained within the range of 0.1 - 0.3MPa.

Regular maintenance is crucial for ensuring the bearing's optimal performance and longevity. This includes monitoring the bearing temperature, which should generally stay below 70°C, as well as checking for abnormal vibration and noise. Any signs of abnormality should be addressed promptly, often requiring the replacement of the bearing. During disassembly, a puller should be used to avoid damaging the journal and bearing housing hole, ensuring that the surrounding components remain in good condition for future use.

VII. Conclusion

The 22244 bearing represents a prime example of engineering design, offering a combination of high - strength construction, excellent self - aligning capabilities, and wide adaptability to different operating conditions. Whether facing extreme loads, shaft misalignments, or challenging environmental factors, this bearing consistently provides stable performance. Its essential role in enabling the efficient operation of industrial machinery highlights its significance as an indispensable component in modern mechanical engineering, driving progress across a broad range of industries.
