Kesle Tapered Rolling Bearing 32004 For Auto / Machinery / Construction

32004 Tapered Roller Bearing: Combined Load-Bearing For Auto, Machinery & Construction

I. Product Overview

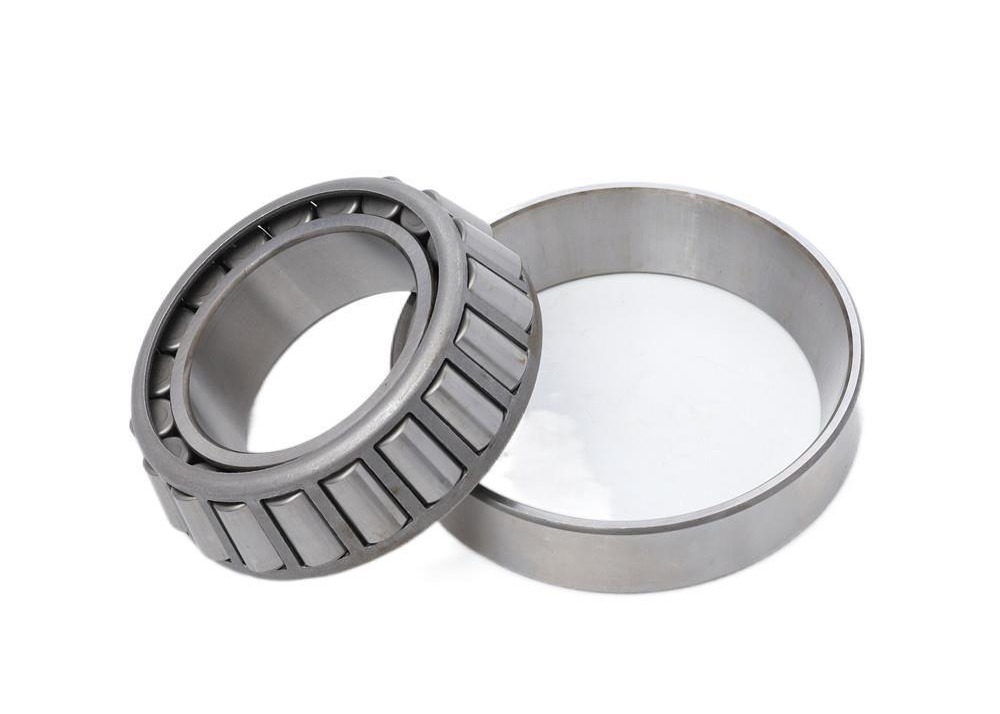

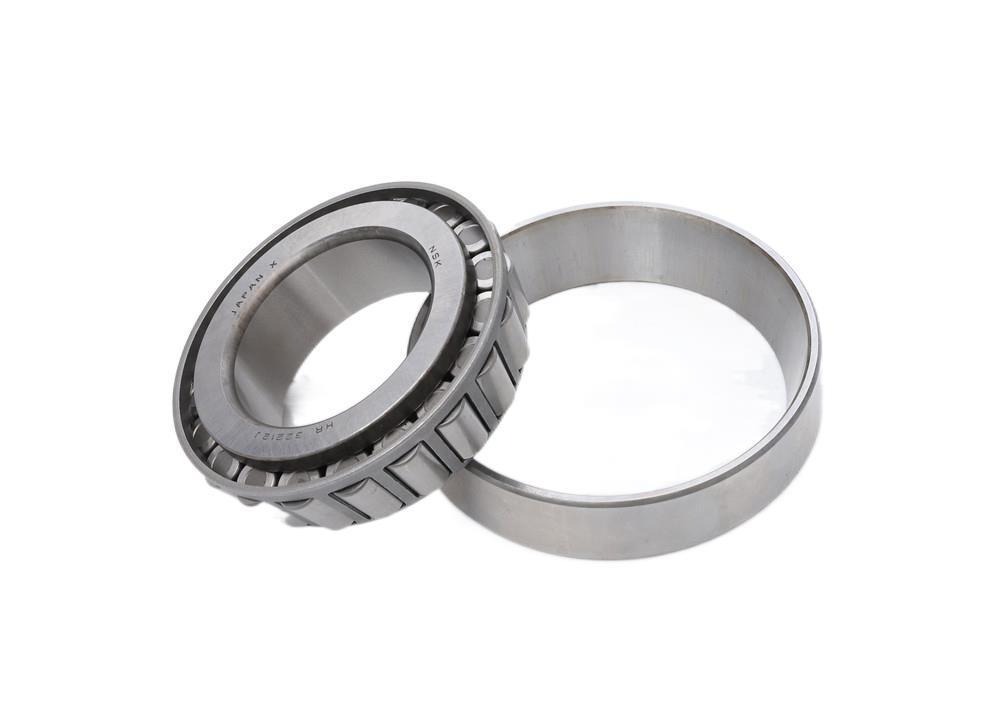

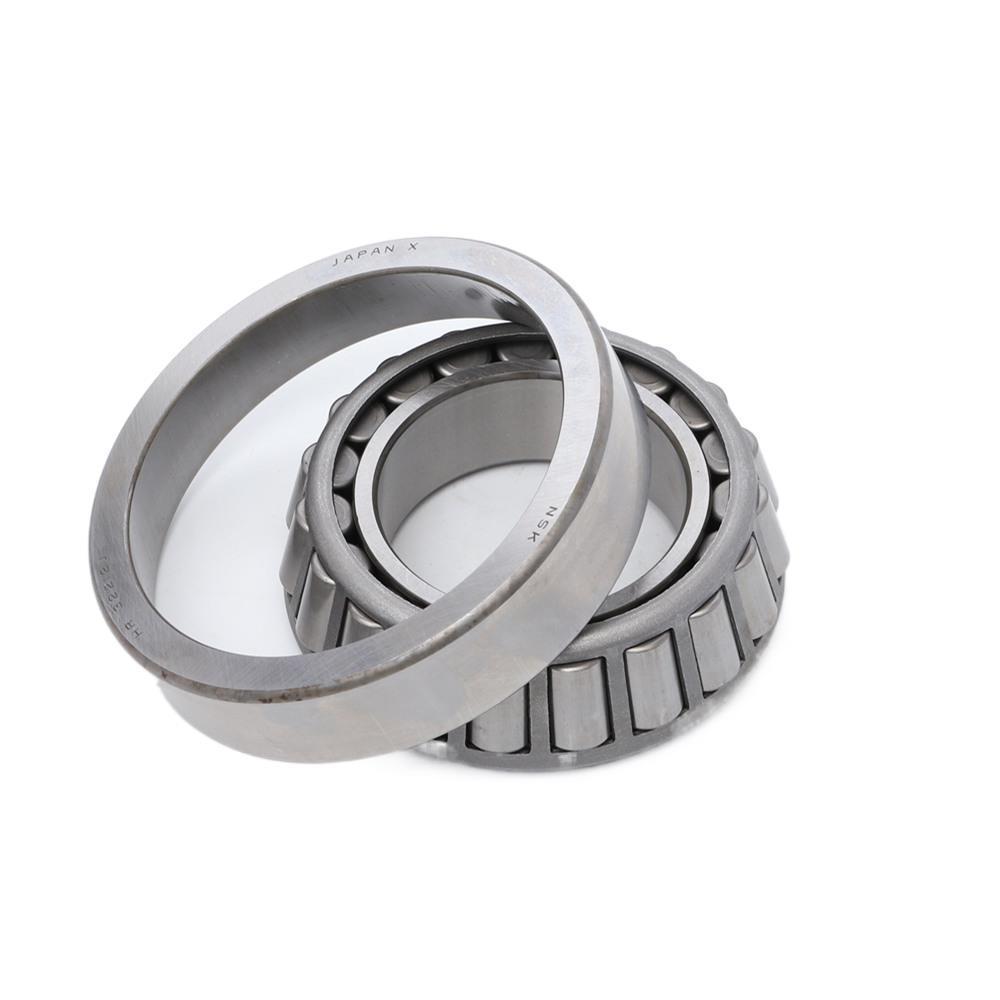

The 32004 tapered roller bearing is a high - precision mechanical component designed to meet the operational demands of diverse machinery in complex and harsh conditions. As a key member of the tapered roller bearing series, it has specific dimensional parameters: an inner diameter (d) of 20mm, an outer diameter (D) of 42mm, and a width (B) of 15mm. These dimensions make it versatile for a wide range of applications where significant radial loads need to be managed effectively, and shaft misalignment issues may affect the stable operation of machinery.

II. Structural Design

2.1 Rolling Elements

The 32004 bearing is equipped with precisely manufactured tapered rollers. These rollers are made from high - quality bearing steel, such as GCr15, which is known for its excellent hardness and superior wear - resistance. The production process follows strict quality control standards, ensuring each roller has a smooth surface and accurate dimensional precision. The tapered shape of the rollers creates a larger contact area with the raceways compared to some other bearing types. This larger contact area helps distribute the load evenly across the bearing components, reducing the risk of local stress concentrations that could lead to premature wear and failure.

2.2 Raceways

The inner and outer rings of the 32004 bearing feature tapered raceways. The design of these tapered raceways is crucial for the bearing's functionality. The cones of the inner and outer rings, along with the tapered rollers, are arranged in such a way that when a load is applied, the forces are directed in a manner that allows the bearing to handle both radial and axial loads effectively. The raceways undergo advanced heat - treatment processes to achieve a high surface hardness, generally in the HRC58 - 64 range. This high hardness gives the bearing excellent wear - resistance and fatigue - resistance, enabling it to withstand various operating conditions and extend its service life significantly.

2.3 Cage

A high - strength steel cage is used to separate and guide the tapered rollers in the 32004 bearing. The cage is precisely designed with pockets that hold the rollers securely, preventing them from colliding during operation. This ensures smooth and stable rolling of the rollers, contributing to the overall reliability and efficiency of the bearing. In some advanced designs, the cage may be coated with special materials or undergo additional heat - treatment to further enhance its strength, wear - resistance, and ability to operate in harsh environments, such as high - temperature, high - contamination, or corrosive settings.

III. Performance Characteristics

3.1 Radial and Axial Load - Carrying Capacity

The 32004 tapered roller bearing is designed to handle a combination of radial and axial loads. Its unique structural design, with tapered rollers and raceways, enables it to distribute the applied forces effectively. Although the exact basic rated dynamic load rating (Cr) and basic rated static load rating (C0r) vary by manufacturer and specific product specifications, it is generally well - suited for applications involving medium - to - heavy loads. The bearing's ability to handle axial loads is related to the contact angle of the tapered rollers. Larger contact angles allow the bearing to withstand greater axial forces. This makes it a popular choice in machinery where complex load conditions are present, such as in gearboxes and automotive differentials.

3.2 Limited High - Speed Adaptability

While the 32004 bearing can operate at a range of speeds, it has certain limitations compared to some other bearing types, especially those designed specifically for high - speed applications. The tapered roller design, with its line contact between the rollers and raceways, generates more friction compared to ball bearings. This increased friction can lead to higher temperatures and reduced efficiency at very high speeds. However, within its recommended speed range, which is typically in the medium - speed category, it provides reliable performance. The reference speed and limiting speed values, which depend on factors such as lubrication and operating conditions, are important considerations when selecting this bearing for a particular application.

3.3 Sensitivity to Misalignment

Tapered roller bearings, including the 32004, are relatively sensitive to misalignment between the shaft and the housing. Even small amounts of misalignment can cause uneven loading on the rollers and raceways, leading to premature wear and reduced bearing lifespan. To mitigate this issue, proper installation and alignment procedures are crucial. In some cases, additional components or design features may be incorporated into the machinery to ensure that the bearing operates under proper alignment conditions. Despite this sensitivity, when used in applications where misalignment can be controlled, the 32004 bearing offers excellent load - carrying capabilities.

IV. Application Fields

4.1 Automotive Industry

In the automotive sector, the 32004 tapered roller bearing finds extensive use. It is commonly employed in the wheel hubs of various vehicles, where it needs to support the weight of the vehicle (radial load) while also dealing with the forces generated during cornering and braking (axial loads). In automotive differentials, the bearing plays a vital role in facilitating the smooth transfer of power between the engine and the wheels, while accommodating the different rotational speeds of the wheels during turns. Its ability to handle combined loads makes it an ideal choice for these critical automotive applications.

4.2 Machinery and Equipment

In general machinery and industrial equipment, the 32004 bearing is used in gearboxes. Gearboxes often experience complex load patterns, with both radial forces from the meshing of gears and axial forces due to the thrust generated by the gear teeth. The 32004 bearing can effectively handle these combined loads, ensuring the smooth operation of the gearbox and the efficient transmission of power. It is also used in small - to - medium - sized motors, where it supports the rotating shaft and helps to maintain the stability of the motor during operation.

4.3 Agricultural and Construction Machinery

Agricultural and construction machinery operate in harsh environments with significant vibrations and heavy loads. The 32004 tapered roller bearing is suitable for such applications. In agricultural tractors, it can be used in the axle systems to support the heavy loads and handle the axial forces generated during turning. In construction equipment like small excavators, the bearing may be used in the rotary joints or in the support systems for moving parts, where it can withstand the high - impact and variable - load conditions encountered during construction operations.

V. Dimensions and Specification Parameters

VI. Maintenance Points

6.1 Lubrication Management

Proper lubrication is essential for the optimal performance and extended service life of the 32004 bearing. The choice of lubricant depends on operating conditions such as temperature, speed, and load. For general applications, high - quality lithium - based grease is suitable. In high - temperature environments (above 120°C) or under heavy loads, synthetic greases or oil - based lubricants may be more appropriate. The lubricant should be applied in the right amount, usually filling about one - third to one - half of the bearing's internal space. Regular lubrication intervals are determined by operating conditions; in normal conditions, it may be needed every few months, but more frequently in demanding environments. The lubricant should be replenished or replaced promptly to maintain its properties and prevent premature wear.

6.2 Regular Inspection

Regular inspection of the 32004 bearing is necessary to detect early signs of wear, damage, or misalignment. Periodic visual inspections check for cracks, corrosion, or abnormal wear on bearing surfaces. Vibration and temperature monitoring can also detect changes in operating conditions; increased vibration or temperature may indicate issues like improper lubrication, excessive load, or misalignment. If abnormalities are found, the bearing should be thoroughly inspected, possibly by disassembly, and necessary repairs or replacements should be done promptly to prevent further damage.

6.3 Installation Precautions

During installation, a clean working environment is crucial to prevent dust, debris, and contaminants from entering the bearing. Specialized tools should be used to avoid damaging the bearing. The bearing should be installed correctly on the shaft and in the housing with the proper fit. For a cylindrical - bore bearing like the 32004, an interference fit between the inner ring and shaft prevents slippage, with the interference carefully controlled. A clearance fit for the outer ring in the housing allows for proper functioning. Proper alignment with the shaft and housing is of utmost importance; misalignment during installation can cause uneven loading and premature failure.

6.4 Storage Considerations

When not in use, the 32004 bearing should be stored in a clean, dry, well - ventilated area, protected from moisture, corrosive gases, and extreme temperatures. It should be kept in its original packaging or wrapped in anti - rust paper to prevent rust. Storing horizontally avoids uneven stress on rolling elements and raceways. Regular checks during storage ensure the bearing remains in good condition; if rust or damage is found, appropriate measures like cleaning, re - lubricating, or replacing should be taken before use.
