High Load Double Row Self Aligning Roller Bearing 22205 For Heavy Machinery

22205 Self-Aligning Roller Bearing: High-Load, Aligning & Durable For Heavy Machinery

I. Product Overview

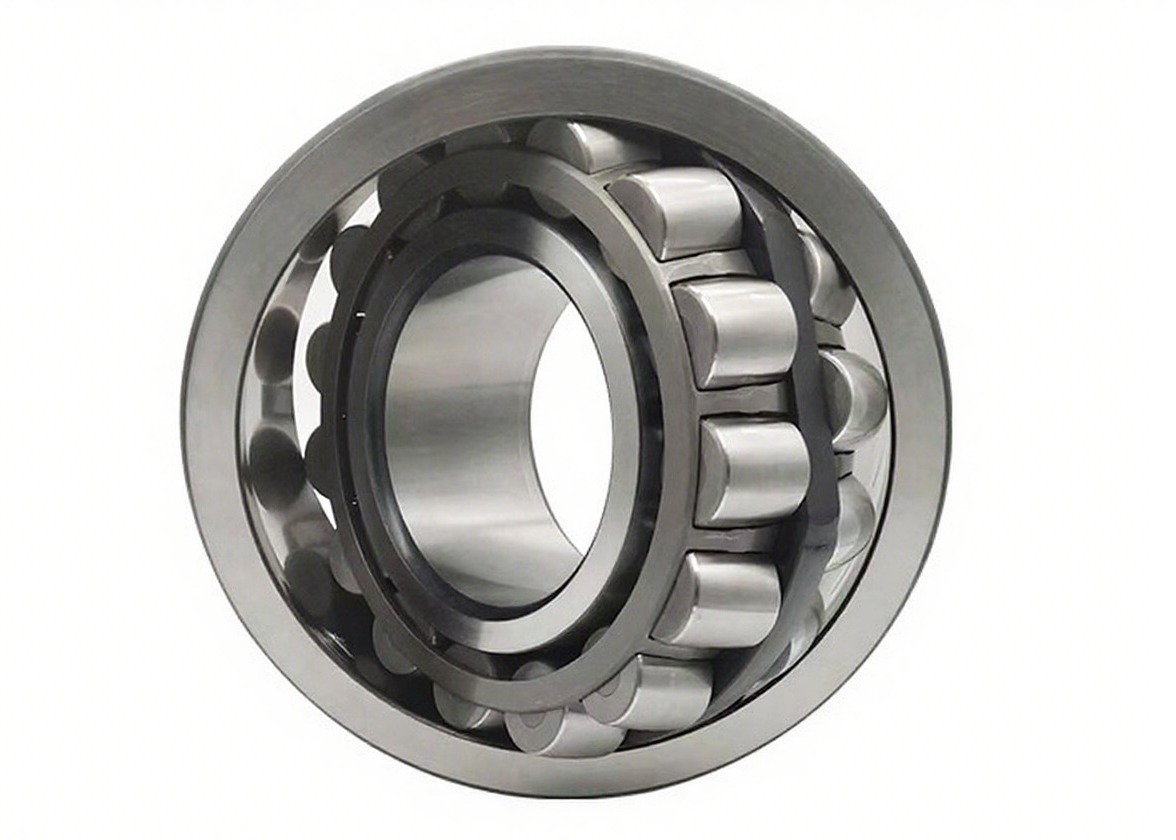

The 22205 self - aligning roller bearing is a crucial component in mechanical systems. It is designed to handle complex load conditions and operational challenges, ensuring smooth and reliable operation of machinery. As a member of the self - aligning roller bearing family, it features an inner diameter (d) of 25mm, an outer diameter (D) of 52mm, and a width (B) of 18mm. This dimension combination makes it suitable for a wide range of applications where both radial and certain axial loads need to be managed, while also accommodating misalignment issues.

II. Structural Design

1. Rolling Elements

The 22205 bearing is equipped with two rows of drum - shaped rollers. These rollers are made from high - quality high - carbon chromium bearing steel, which undergoes a series of precision manufacturing processes. The result is a roller with excellent surface finish and tight dimensional tolerances. The drum - shaped design allows for a larger contact area with the raceways compared to traditional cylindrical rollers. This not only increases the bearing's radial load - carrying capacity but also enables it to better distribute loads evenly, reducing the risk of local overloading and premature wear.

2. Raceways

The inner ring has two raceways, and the outer ring has a spherical raceway. The spherical outer - ring raceway is the key to the bearing's self - aligning function. It allows the inner ring and the rollers to adjust their position relative to the outer ring, compensating for misalignment between the shaft and the housing. The raceways are hardened through advanced heat - treatment processes to achieve a high surface hardness, typically in the range of HRC58 - 64. This high hardness provides excellent wear - resistance and fatigue - resistance, ensuring a long service life even under heavy - load and high - speed operating conditions.

3. Cage

A high - strength steel cage is used to separate and guide the rollers. The cage is designed with precise pockets to hold the rollers in place, preventing them from colliding with each other during operation. This ensures smooth and stable rolling motion of the rollers. In some advanced designs, the cage may also be treated with special coatings or undergo additional heat - treatment to further enhance its strength, wear - resistance, and ability to operate in harsh environments.

III. Performance Characteristics

1. High Radial Load - Carrying Capacity

Thanks to the double - row roller design and the large contact area between the rollers and the raceways, the 22205 self - aligning roller bearing can withstand substantial radial loads. Its basic rated dynamic load rating (Cr) can reach a relatively high value (the specific value depends on the manufacturer and the exact product specifications). This makes it suitable for applications in heavy - duty machinery, such as mining equipment, construction machinery, and large - scale industrial motors, where significant radial forces are present.

2. Good Axial Load - Carrying Ability

Although mainly designed for radial loads, the 22205 bearing can also handle a certain amount of axial load in either direction. The rib structure on the inner and outer rings, combined with the roller arrangement, enables the bearing to resist axial forces. This is particularly useful in applications where there are axial thrusts in addition to radial loads, such as in some gearbox systems and conveyor belt drives.

3. Exceptional Self - Aligning Capability

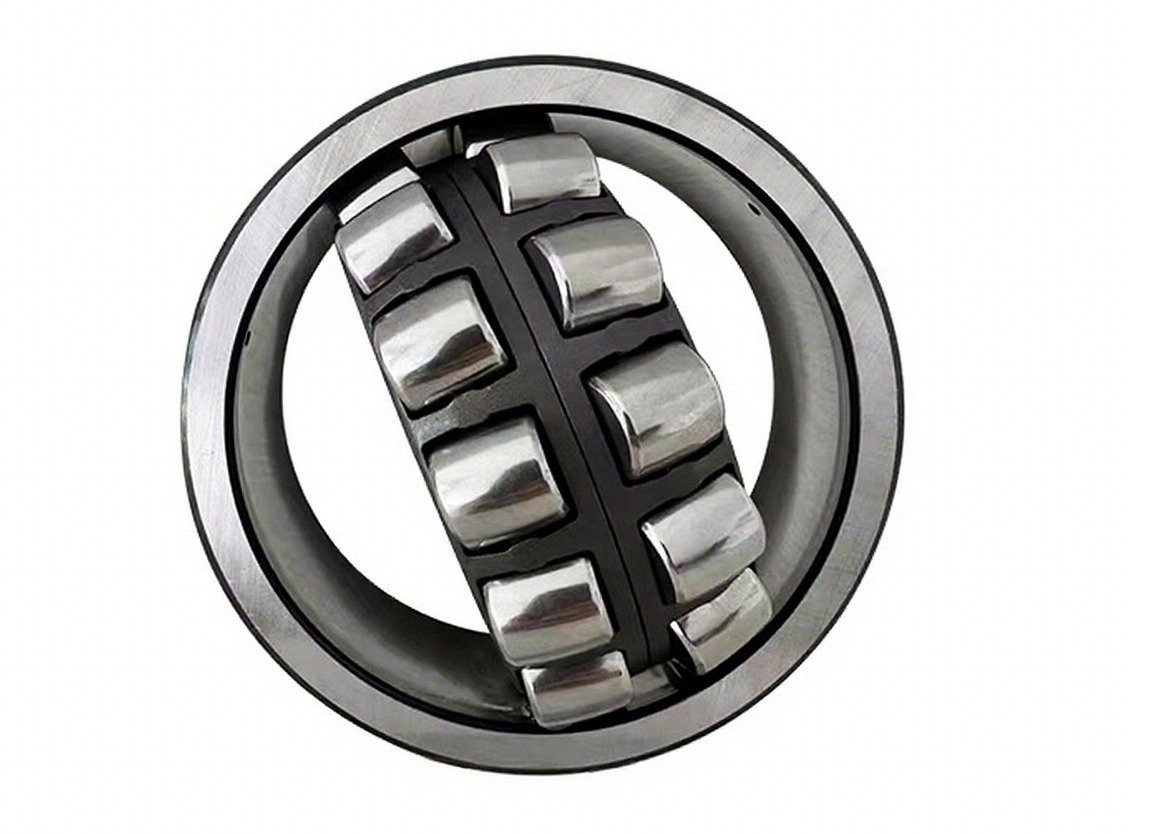

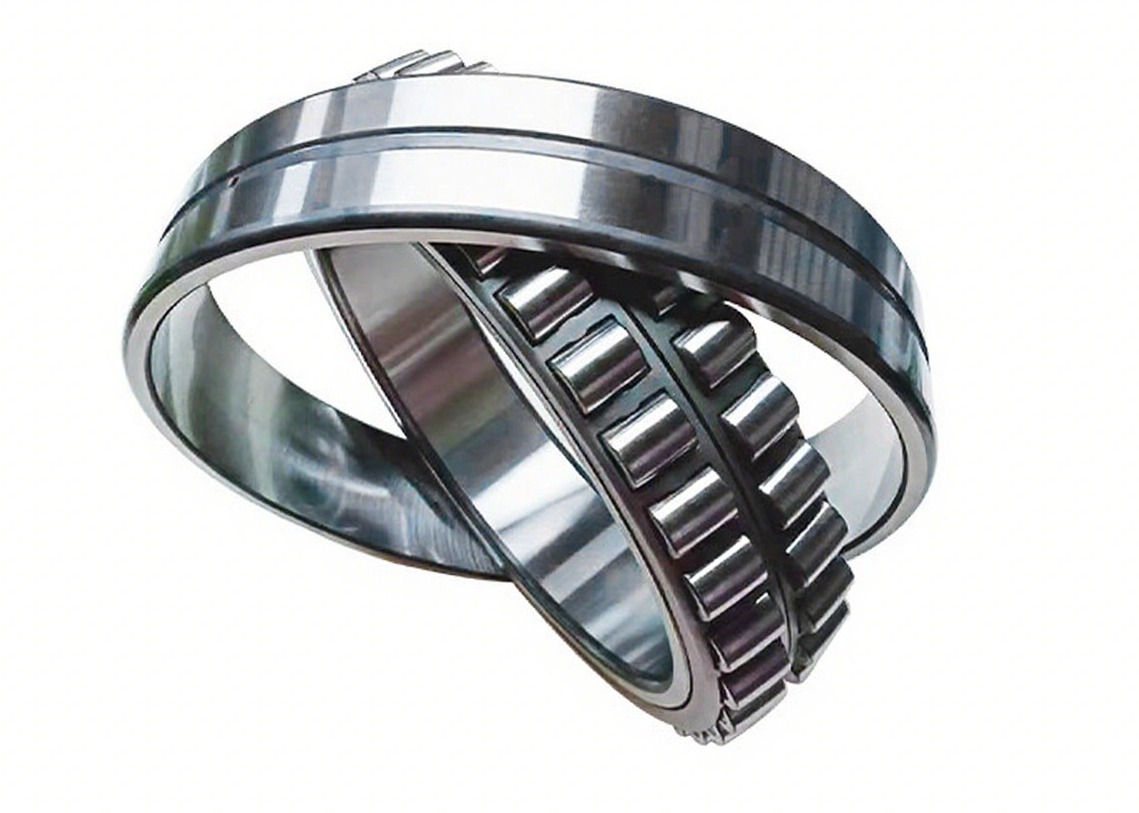

The most prominent feature of the 22205 bearing is its self - aligning function. The spherical outer - ring raceway allows the bearing to automatically adjust to misalignment between the shaft and the housing, up to a certain angle. This ability to self - align helps to reduce stress concentrations in the bearing and the connected components, preventing premature failure due to misalignment. It is especially beneficial in applications where shaft deflection or misalignment is likely to occur, such as in long - shaft machinery or equipment with flexible couplings.

4. High - Speed Rotation Stability

Despite its ability to handle heavy loads, the 22205 bearing can also operate smoothly at relatively high speeds. The optimized design of the rolling elements, raceways, and cage, along with proper lubrication, ensures low friction and reduced vibration during high - speed rotation. This makes it suitable for applications that require both high - load capacity and high - speed operation, such as certain types of industrial pumps and compressors.

IV. Application Fields

1. Industrial Machinery

In industrial settings, the 22205 bearing is widely used in various types of machinery. For example, in large - scale industrial motors, it provides reliable support for the rotor, handling the heavy radial and axial loads generated during operation. In conveyor systems, it enables smooth movement of the conveyor belt by accommodating the misalignment that may occur due to uneven installation or thermal expansion. In industrial gearboxes, the bearing helps to transmit power efficiently while withstanding the complex loads from the meshing gears.

2. Mining and Construction Equipment

The harsh operating conditions in mining and construction industries demand bearings with high load - carrying capacity and self - aligning capabilities. The 22205 bearing is commonly used in mining crushers, where it endures the massive impact and heavy loads during the crushing process. In construction machinery such as excavators and loaders, it supports the rotating parts, allowing for smooth operation even when the equipment is subject to vibrations and misalignment caused by rough terrain.

3. Power Generation Equipment

In power generation applications, the 22205 bearing can be found in the rotor support systems of generators and turbines. These power - generating devices operate under high - speed and high - load conditions, and the bearing's ability to handle both radial and axial loads, along with its self - aligning feature, ensures stable and reliable operation. This contributes to the continuous and efficient generation of electricity.

4. Transportation Equipment

In some transportation - related equipment, such as the axle support systems of certain trucks and buses, the 22205 bearing is utilized. It helps to support the weight of the vehicle and its cargo, while also compensating for any misalignment that may occur due to road irregularities or vehicle suspension movement. This ensures safe and comfortable driving by reducing vibrations and wear on the vehicle's components.

V. Dimensions and Specification Parameters

VI. Maintenance Points

1. Lubrication Management

Proper lubrication is crucial for the performance and lifespan of the 22205 bearing. The choice of lubricant depends on the operating conditions, such as temperature, speed, and load. For general applications, high - quality lithium - based grease is often used. However, in high - temperature or high - load environments, synthetic greases or oil - based lubricants may be more suitable. The lubricant should be applied in the right amount, typically filling about one - third to one - half of the bearing's internal space. Regular lubrication intervals should be established based on the bearing's operating conditions, and the lubricant should be replenished or replaced in a timely manner to maintain optimal lubrication performance.

2. Regular Inspection

Regular inspection of the 22205 bearing is essential to detect any early signs of wear, damage, or misalignment. Visual inspections should be carried out to check for any visible signs of cracks, corrosion, or abnormal wear on the bearing surfaces. In addition, vibration and temperature monitoring can be used to detect any changes in the bearing's operating condition. An increase in vibration or temperature may indicate problems such as improper lubrication, excessive load, or misalignment. If any abnormal conditions are detected, the bearing should be thoroughly inspected, and necessary repairs or replacements should be carried out promptly to prevent further damage to the machinery.

3. Installation Precautions

During installation, it is important to ensure a clean working environment to prevent dust and debris from entering the bearing. Specialized installation tools should be used to avoid damaging the bearing. The bearing should be installed correctly on the shaft and in the housing, with the proper fit. For a cylindrical - bore bearing like the 22205, an appropriate interference fit should be maintained between the inner ring and the shaft to prevent slippage. When installing the outer ring in the housing, a clearance fit is usually recommended to allow for the self - aligning function. The bearing should also be properly aligned with the shaft and the housing to ensure optimal performance.

4. Storage Considerations

When the 22205 bearing is not in use, it should be stored in a clean, dry, and well - ventilated area. It should be protected from moisture, corrosive gases, and extreme temperatures. Bearings should be stored in their original packaging or wrapped in anti - rust paper to prevent rusting. They should be placed horizontally to avoid uneven stress on the rolling elements and raceways. Regular checks should be carried out during storage to ensure that the bearings remain in good condition and are ready for use when needed.
