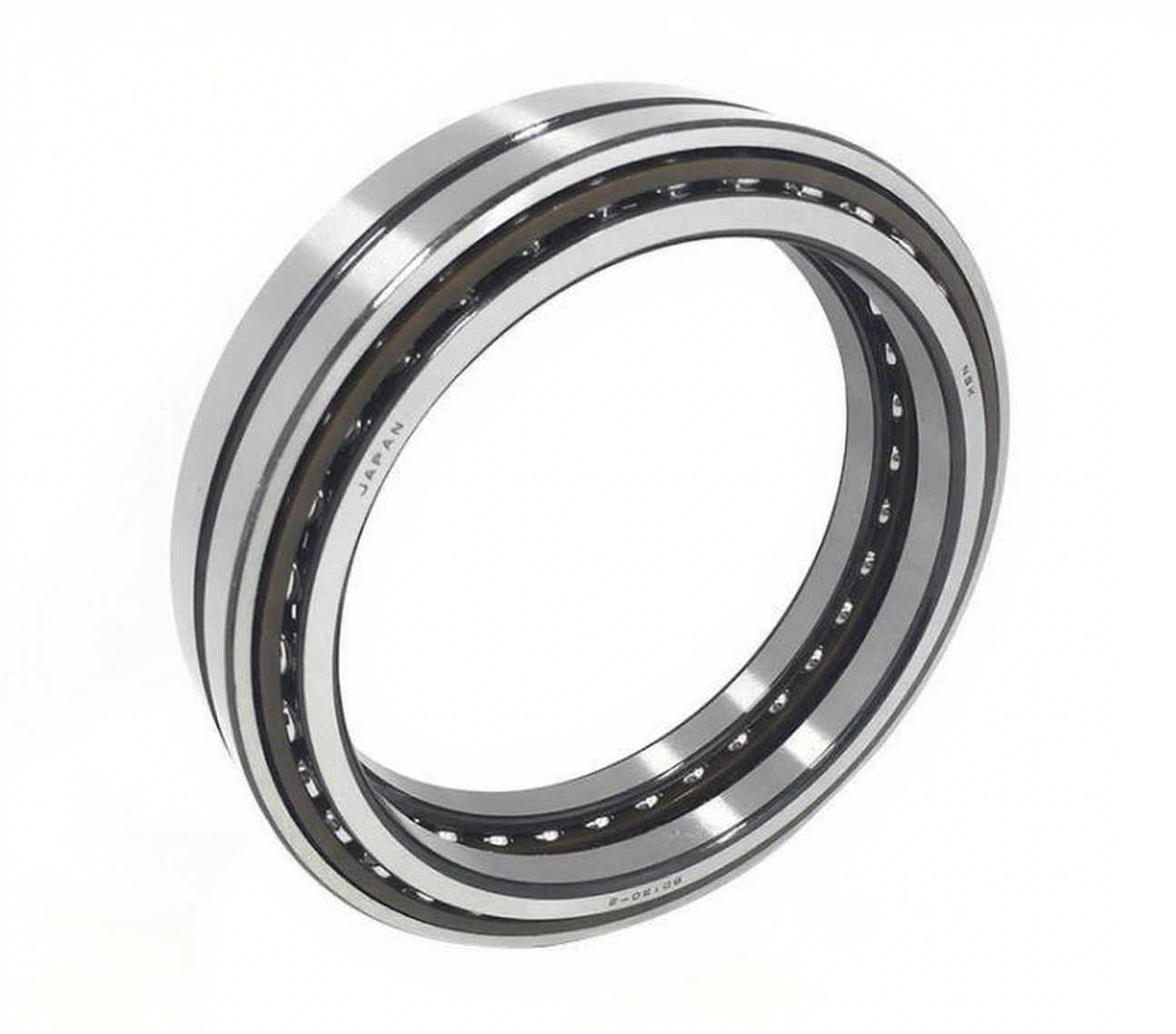

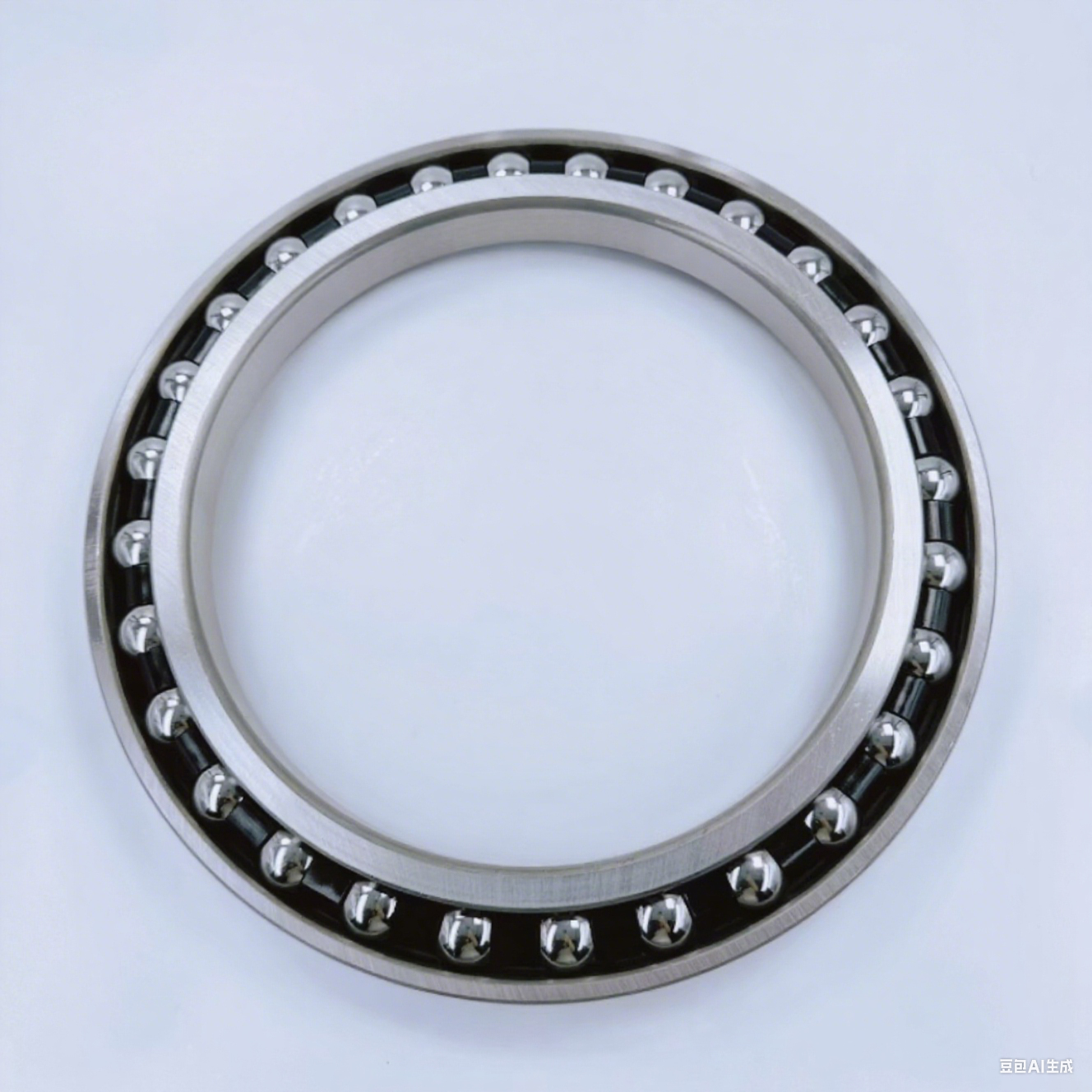

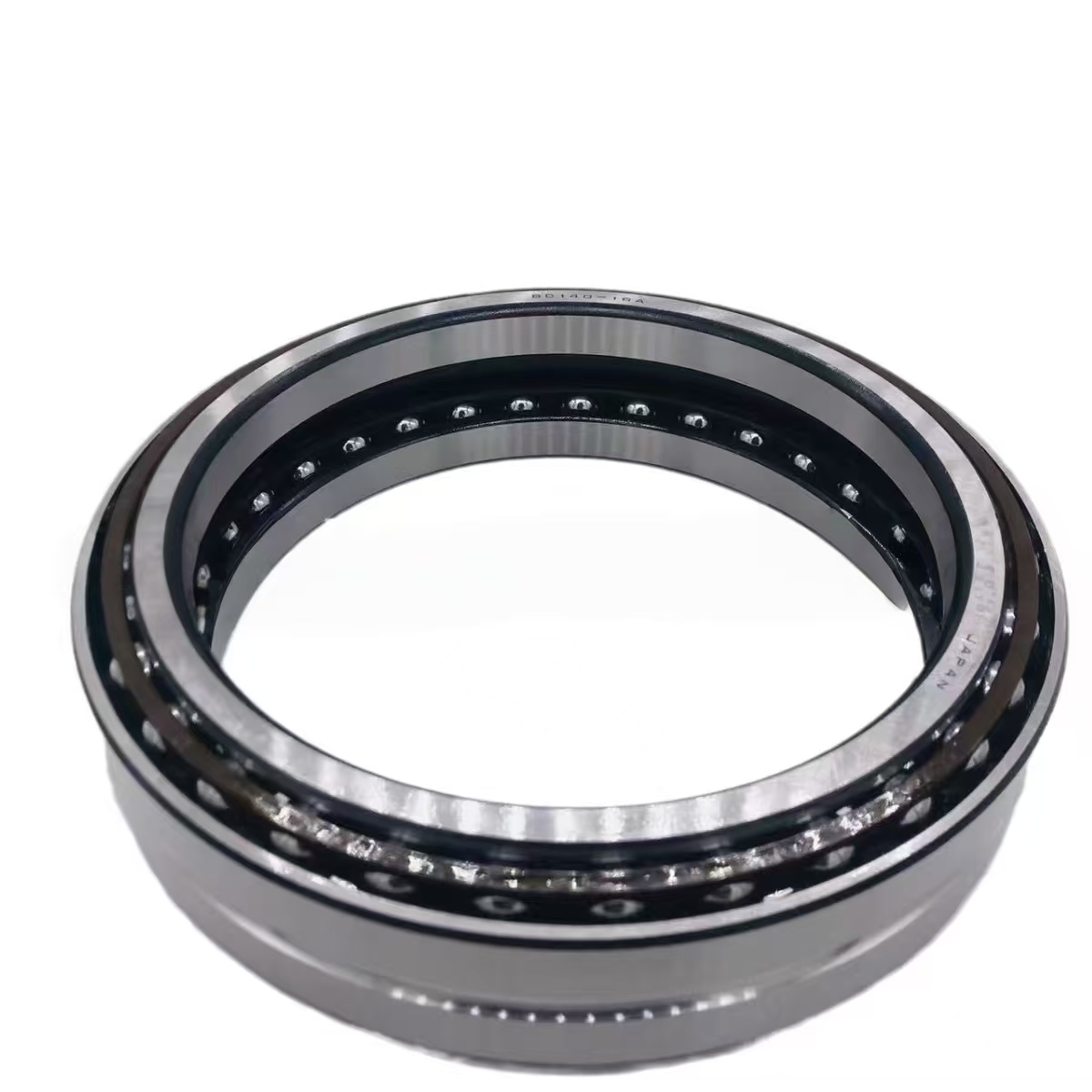

BA160 Angular Contact Ball Bearing , Excavator High Load Capacity Bearing

BA160 Angular Contact Bearings - Excavator/Industrial, High Load & Durable

I. Product Overview

The BA160 bearing is a high - performance mechanical component engineered to meet the diverse demands of multiple industrial applications. With its precisely designed dimensions and specialized construction, it serves as a critical element in ensuring the smooth operation and reliable performance of various machinery. This bearing is available in different configurations, such as the BA160 - 1 angular contact ball bearing and potentially other variants with unique characteristics tailored to specific uses.

II. Core Technical Parameters

BA160 - 1 Angular Contact Ball Bearing (Example Configuration)

III. Materials and Craftsmanship

Material Selection

1. Ring Material: High - quality bearing steel, such as GCR15, is commonly used for the inner and outer rings of the BA160 bearing. GCR15 steel offers outstanding hardness, which enables the rings to maintain their shape under high - stress conditions. Its excellent wear resistance reduces the risk of premature failure due to friction, ensuring a long service life for the bearing. Additionally, the material has good fatigue strength, allowing it to withstand the repeated loading and unloading cycles that occur during normal operation.

2. Ball Material: For ball - type BA160 bearings, high - grade steel balls are used. These balls are typically manufactured to a very high level of precision, with tight tolerances on roundness and surface finish. The smooth surface of the balls minimizes friction as they roll within the bearing, enhancing rotational efficiency. The high - quality steel material also contributes to the balls' ability to withstand the forces exerted on them, ensuring reliable performance over time.

Craftsmanship Highlights

1. Precision Machining: The manufacturing process begins with precision machining of the inner and outer rings. Advanced computer - numerical - control (CNC) machining techniques are employed to achieve the exact dimensional tolerances required for the BA160 bearing. The bore, outer diameter, and width are machined with extreme accuracy to ensure proper fitment within the machinery. Any deviation from the specified tolerances could lead to increased vibration, reduced efficiency, and premature bearing failure.

2. Assembly Process: The assembly of the BA160 bearing is a highly precise operation. In the case of an angular contact ball bearing, the balls are carefully installed into the bearing, with strict attention paid to their spacing and alignment. The cage is then assembled around the balls to ensure even distribution and smooth movement during rotation. The assembly process may also involve pre - loading the balls to a specific force to optimize performance and reduce play, further enhancing the bearing's stability and load - handling capabilities.

3. Quality Control: Each BA160 bearing undergoes rigorous quality control procedures. Dimensional accuracy is checked using high - precision measuring instruments, such as coordinate measuring machines (CMMs). The surface finish of the rings and balls is inspected to ensure that it meets the required standards for reducing friction and wear. Material integrity is verified through techniques like hardness testing and non - destructive testing (NDT), such as magnetic particle inspection or ultrasonic testing. Only bearings that pass all these quality checks are released for use, ensuring that customers receive a reliable and high - performing product.

IV. Application Scenarios

Excavator Machinery

1. Travel Systems: In excavators, the BA160 bearing can be used in the travel systems, including the tracks or wheels. It supports the heavy weight of the excavator body and withstands the dynamic loads generated during forward, reverse, and turning movements. The bearing's ability to handle both radial and axial loads, especially with its angular contact design, is crucial for ensuring smooth and stable travel operation. For example, as the excavator moves over uneven terrain, the BA160 bearing in the travel system helps to absorb the shocks and vibrations, while maintaining the proper alignment of the tracks or wheels.

2. Boom and Arm Joints: The BA160 bearing is also suitable for use in the joints of the boom and arm assemblies of excavators. These joints experience complex loading conditions as the excavator digs, lifts, and positions materials. The bearing enables smooth articulation of these components, allowing for precise control and efficient operation of the excavator's digging and lifting functions. When the excavator extends its arm to reach a distant point or rotates the boom to dump the excavated material, the BA160 bearing in the joints ensures that the movement is smooth and free from excessive friction or binding.

Other Industrial Applications

1. Industrial Machinery: In various industrial machinery, such as conveyors used in manufacturing plants or mining operations, the BA160 bearing can play a vital role. In conveyor systems, it can be used to support the rotating shafts of the pulleys, ensuring smooth movement of the conveyor belts. The bearing's ability to handle heavy loads is essential, as the conveyor belts may carry large amounts of materials. Additionally, in machinery where high - speed rotations are involved, the precision and smooth - running characteristics of the BA160 bearing contribute to the overall efficiency and reliability of the equipment.

2. Automotive and Agricultural Equipment: In the automotive and agricultural sectors, the BA160 bearing can be applied in certain drive train components. For instance, in some large - wheeled agricultural tractors, it may be used in the gearbox or differential systems. These applications require the bearing to withstand high torque and variable loads, as the tractor operates in different terrains and performs various tasks. The BA160 bearing's durability and load - handling capabilities make it a suitable choice for ensuring the reliable operation of such equipment.

V. Product Advantages

1. High Load - Bearing Capacity: The BA160 bearing, especially in its angular contact ball bearing configurations, offers a high load - bearing capacity. Its ability to handle both radial and axial loads, combined with the use of high - quality materials and precise manufacturing, allows it to withstand substantial forces. This makes it well - suited for heavy - duty applications where the machinery experiences significant stress, such as in excavator and industrial equipment operations. The high load - bearing capacity ensures the reliable performance of the machinery, reducing the risk of unexpected breakdowns and costly downtime.

2. Smooth Operation: Precision machining and careful assembly result in a BA160 bearing that operates smoothly. The smooth rotation of the bearing reduces vibration and noise, which is not only beneficial for the comfort of the operators but also for the overall efficiency of the machinery. Reduced vibration can also extend the service life of other components in the mechanical system, as it minimizes the stress placed on them. In applications where quiet operation is crucial, such as in some medical or precision equipment, the smooth - running characteristics of the BA160 bearing are highly advantageous.

3. Long Service Life: The use of wear - resistant materials like GCR15 steel for the rings and high - grade steel for the balls, along with strict quality control during manufacturing, contribute to the BA160 bearing's long service life. In applications where the bearing is subjected to continuous operation and heavy loads, its durability is a significant advantage. A long service life means less frequent replacements, which in turn reduces maintenance costs and downtime for the machinery. This is particularly important in industries where uninterrupted operation is critical, such as mining and manufacturing.

4. Cost - Effective Solution: Despite its high - performance capabilities, the BA160 bearing offers a cost - effective solution for industrial applications. Its long service life and reliable performance result in lower overall costs over the lifetime of the machinery. Additionally, its availability in different precision grades and configurations allows customers to choose the most suitable option for their specific needs, without having to over - invest in a bearing that may be more than what is required. This flexibility in selection enhances its cost - effectiveness.

5. Customization Options: Depending on the specific application requirements, there may be customization options available for the BA160 bearing. This could include variations in material selection, cage design, or precision grades. For example, in applications where the bearing will be exposed to harsh environments, such as high temperatures or corrosive substances, customized materials can be used to enhance its resistance. Customization allows customers to tailor the bearing to their exact needs, optimizing its performance in their particular operating environments.
