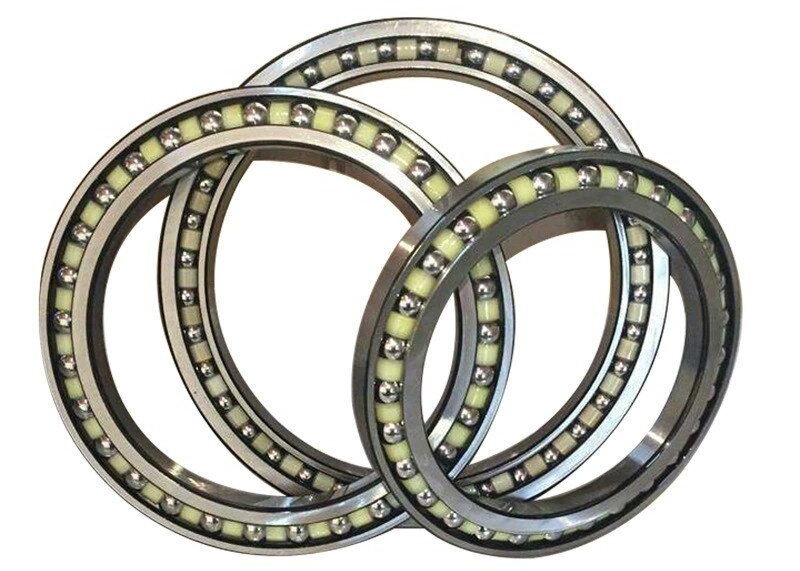

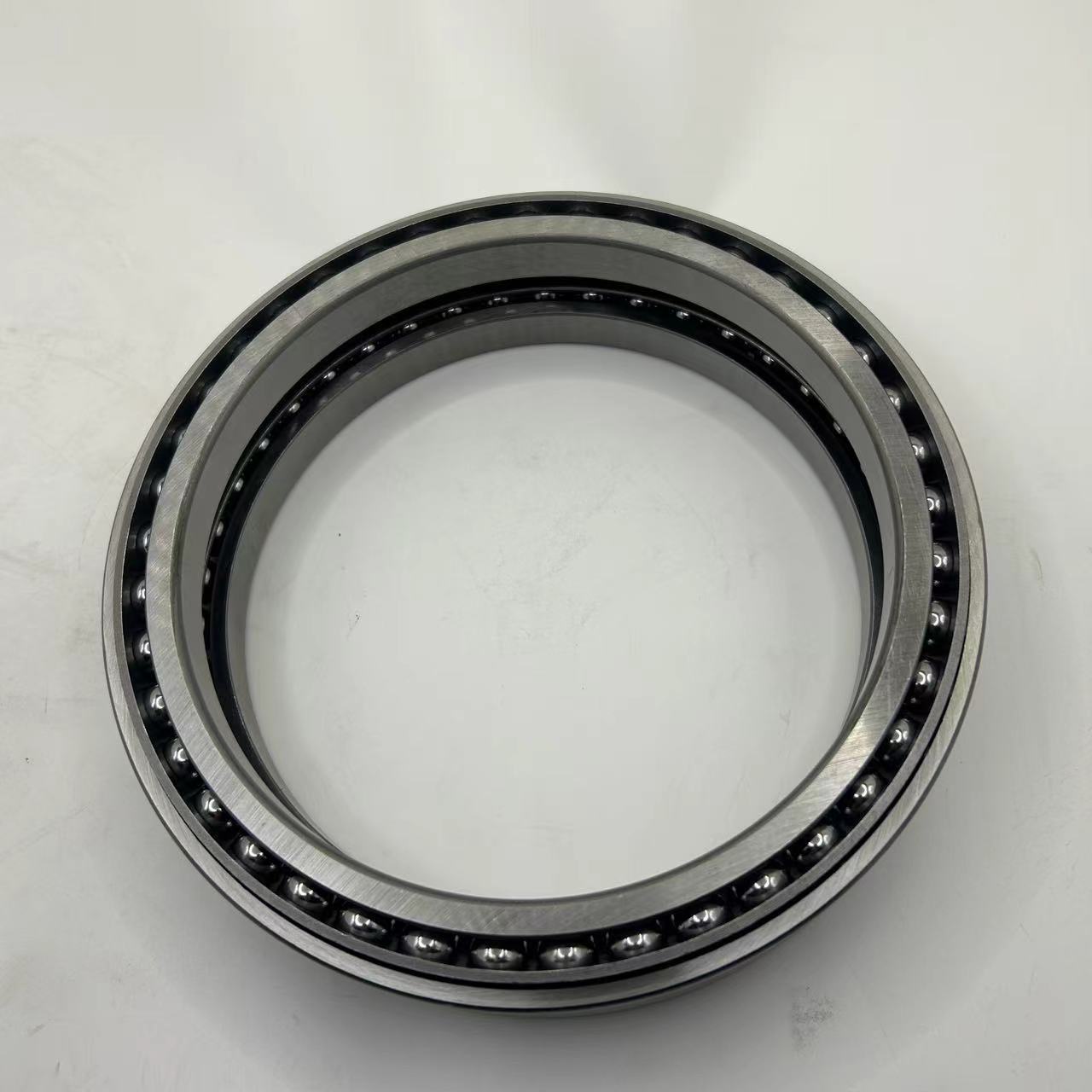

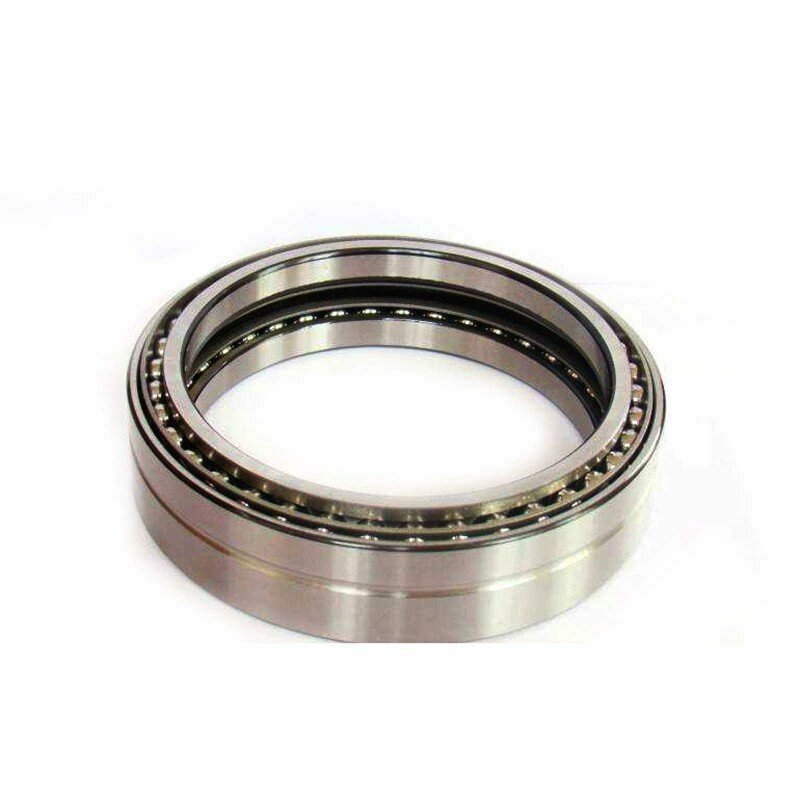

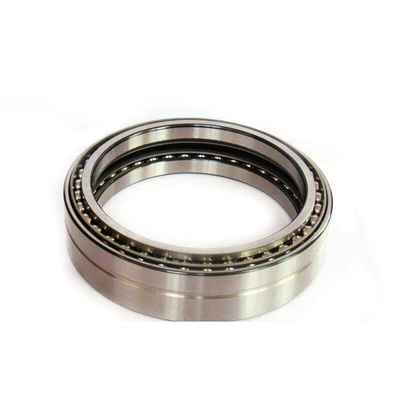

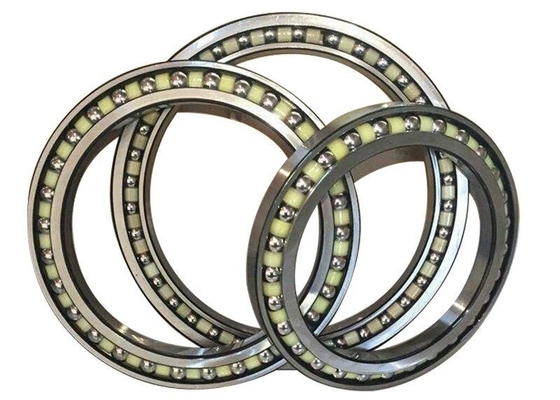

High Load Carrying Excavator Bearings 150BA182 Angular Contact Ball Bearing

150BA182 Angular Contact Ball Bearing For Excavators & Heavy Machinery

In the field of construction machinery and heavy-duty equipment, bearings have a significant impact on the operational efficiency and durability of the equipment. The 150BA182 bearing, meticulously crafted for harsh working conditions, has become a key component in heavy machinery such as excavators and cranes. Its precise dimensions, innovative structure, and excellent performance are highly favored in the industry.​

I. Precise Dimensional Specifications​

1. Inner Diameter: The inner diameter of the 150BA182 bearing is 150mm, a size that has been precisely designed to perfectly match the shaft diameter of specific components in equipment like excavators. This tight fit ensures a secure connection between the bearing and the shaft. During high-speed operation and under heavy loads, it effectively prevents relative sliding, guarantees stable power transmission, and lays a solid foundation for the efficient operation of the equipment.​

2. Outer Diameter: The 182mm outer diameter not only endows the bearing with sufficient structural strength to cope with various stresses in complex working conditions but also matches the installation dimensions of relevant components of the equipment. It ensures the compactness and coordination of the entire mechanical system, allowing all components to work together and improving the overall operational efficiency of the equipment.​

3. Width: The 16mm width takes into account both the axial load-carrying capacity of the bearing and the space constraints of the equipment. Within the limited installation space, it can effectively bear axial forces to prevent axial movement of the shaft during operation, and at the same time, it will not affect the normal installation and operation of other components due to excessive size, achieving a balance between performance and space utilization.​

II. Innovative Structural Design​

The 150BA182 bearing adopts a single-row angular contact ball bearing structure, which has significant advantages. The arrangement of angular contact balls enables it to bear both large radial and axial loads simultaneously, meeting the complex force requirements of equipment such as excavators during operation. The contact angle design of approximately 40 degrees enhances the bearing's ability to resist axial forces, making it particularly suitable for application scenarios with large axial thrusts.​

The inner and outer rings of the bearing have been reinforced with excellent rigidity. This not only effectively reduces deformation during operation but also ensures high-precision rotation of the equipment. The optimized raceway curvature further improves the distribution of contact stress between the balls and the raceway, reduces wear, and significantly extends the service life of the bearing. In addition, depending on the needs of different working environments, it can be equipped with a steel cage to adapt to high-strength applications or a brass cage to improve self-lubricating performance.​

III. High-Quality Materials and Advanced Processes​

1. Bearing Material: The bearing is made of high-quality GCr15 chromium steel, which has excellent hardness, wear resistance, and fatigue resistance. After a strict heat treatment process, its hardness can reach HRC60-65, enabling it to maintain good performance during long-term heavy-load and high-frequency operation, effectively resisting wear and fatigue damage, and significantly extending its service life.​

2. Processing Technology: Advanced high-precision equipment and processes are used in the manufacturing process to ensure that the dimensional accuracy and surface quality of each component meet high standards. The processing precision of the raceways and balls is extremely high, which effectively reduces friction and vibration during operation, lowers noise, and improves the rotation accuracy and operational stability of the bearing. The bearing surface has undergone special anti-rust treatment, enhancing its corrosion resistance in harsh environments such as humidity and dust.​

IV. Excellent Performance Advantages​

1. High Load-Carrying Capacity: The unique angular contact ball bearing structure and the use of high-quality materials give the 150BA182 bearing strong load-carrying capacity. Its rated dynamic load and rated static load perform excellently, and it can easily cope with the huge loads generated by equipment such as excavators during digging and handling operations, ensuring the stable operation of the equipment under heavy-load working conditions.​

2. Good High-Speed Performance: High-precision processing and optimized structural design enable the bearing to maintain a low friction coefficient during high-speed rotation, reducing energy loss. At the same time, the reasonably designed lubrication channels and heat dissipation mechanisms ensure the heat dissipation effect during high-speed operation, preventing performance degradation due to overheating, and making the equipment stable and reliable during high-speed operation.​

3. Strong Stability and Reliability: In harsh working environments, the 150BA182 bearing exhibits excellent stability and reliability. The excellent sealing design effectively blocks dust, moisture, and other impurities from entering the bearing interior, protecting the internal structure from pollution and damage, and maintaining a good lubrication state. Even under high temperature, dusty, and violently vibrating working conditions, it can maintain stable operation, greatly reducing the probability of equipment failure and reducing maintenance costs.​

V. Wide Range of Application Scenarios​

1. Excavator Slewing Mechanism: In the excavator slewing mechanism, the 150BA182 bearing is crucial. It bears the radial and axial loads generated during the slewing process, ensuring the smooth and precise slewing of the upper structure of the excavator, and significantly improving the efficiency of the digging operation. Its high precision and high load-carrying capacity enable the excavator to accurately position the bucket, improving the accuracy of material handling and reducing operational errors.​

2. Construction Machinery Travel Motor: The 150BA182 bearing is widely used in the travel motors of construction machinery such as excavators and loaders. It can efficiently transmit power when the equipment is moving, meeting the requirements of high-speed rotation and heavy loads. Whether on rough terrain or flat roads, it can ensure the stable operation of the machinery, providing reliable mobile support for construction operations.​

3. Other Heavy Machinery Applications: In addition to excavators and loaders, the 150BA182 bearing can also be used in other heavy machinery such as cranes and bulldozers. In cranes, it helps the boom rotate smoothly to achieve precise lifting and placement of heavy objects; in bulldozers, it contributes to the efficient operation of the transmission system, ensuring reliable power transmission to the tracks.​

In summary, with its precise dimensional parameters, innovative structural design, high-quality material technology, excellent performance, and wide range of applications, the 150BA182 bearing has become an indispensable key component in the heavy construction machinery industry. It provides reliable guarantee for the efficient and stable operation of construction equipment and promotes the smooth progress of global construction projects.
