51108 Thrust Bearing , Single Directional Thrust Ball Bearing Medium High Speed Adaptable

I. Core Parameters

• Bore diameter: 40mm
• Outer diameter: 60mm
• Width: 13mm
• Dynamic rated load: 25.5kN
• Static rated load: 63kN
• Limiting speed: 7000r/min (data from SKF)

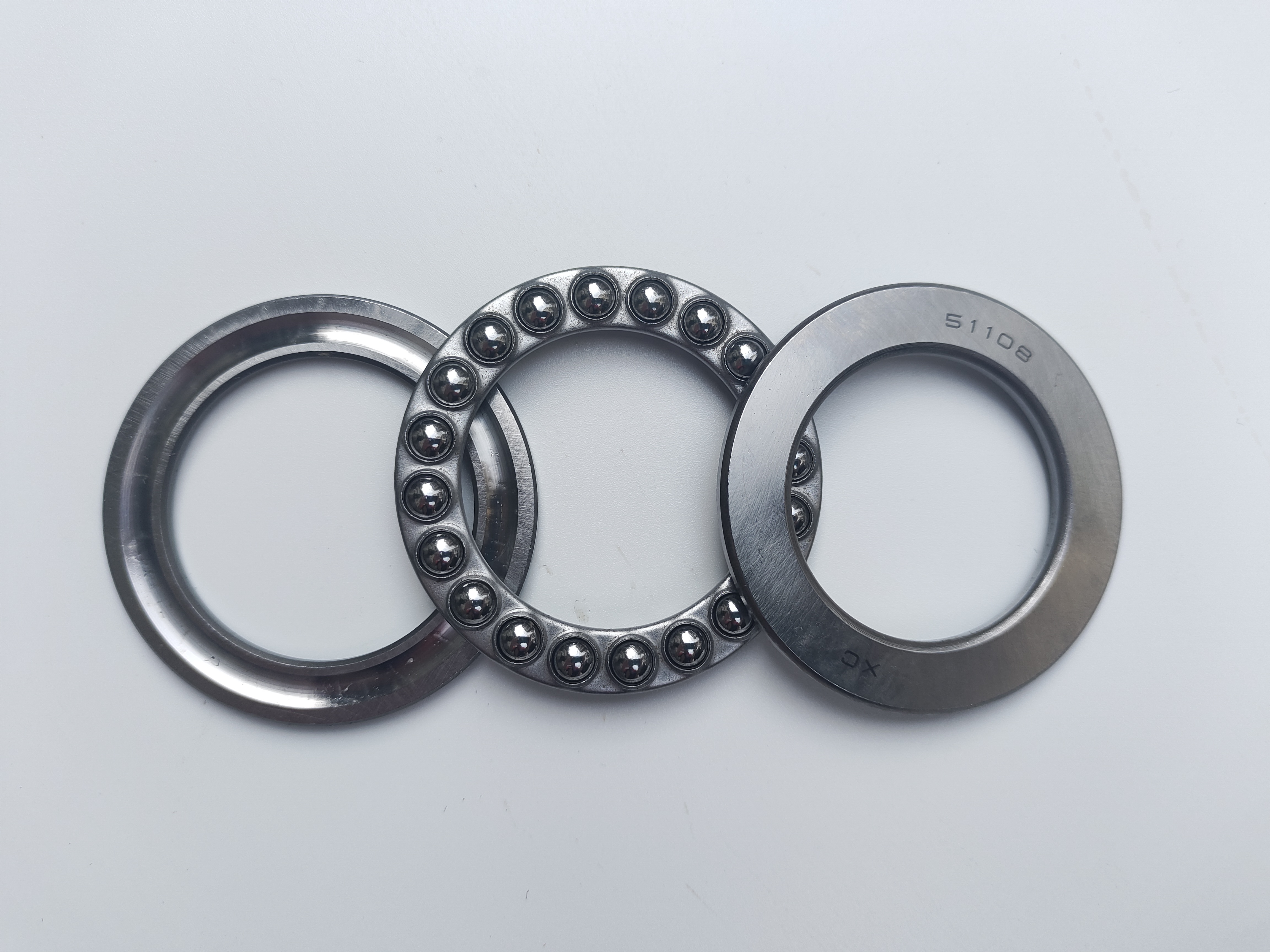

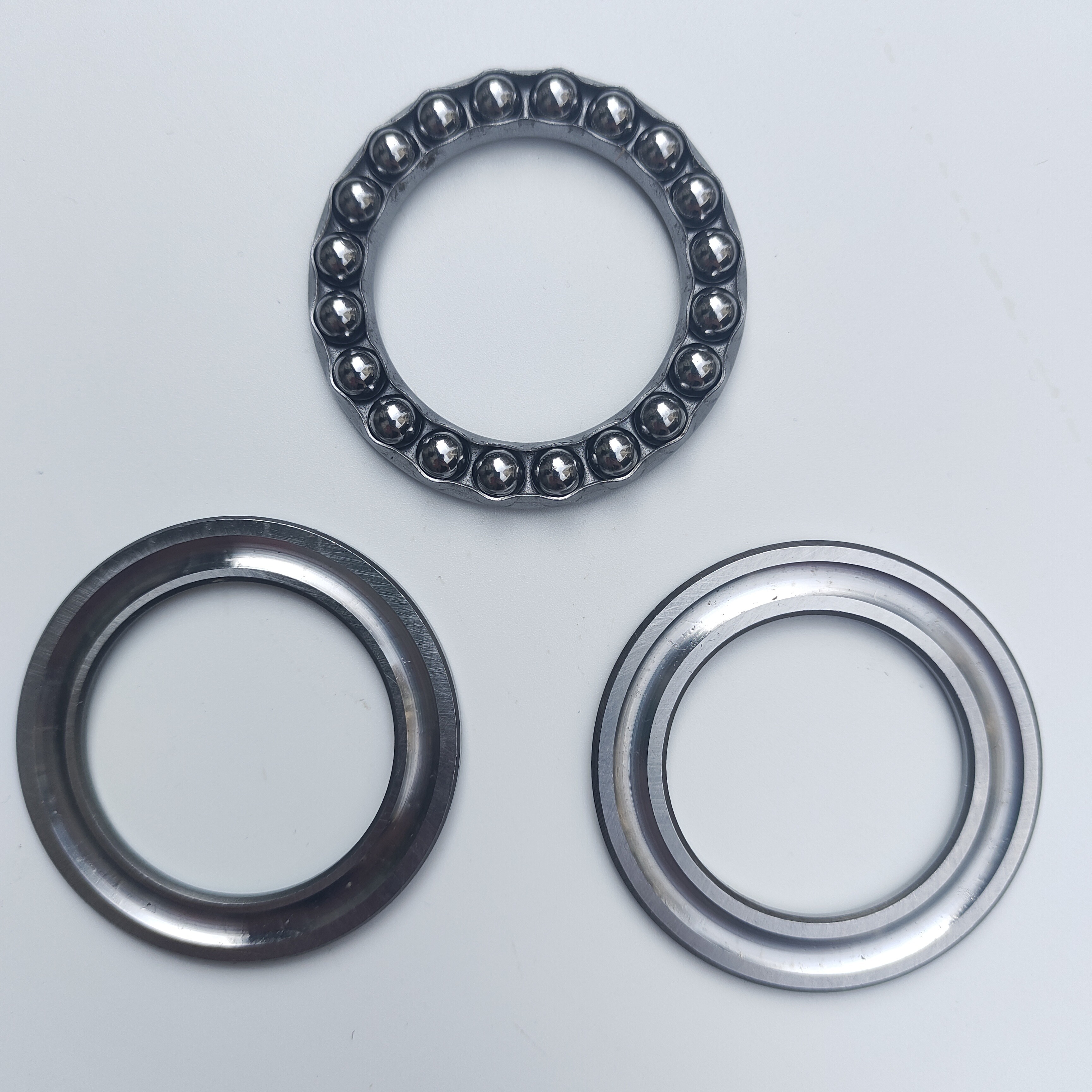

• Structural features: Separable design (shaft washer, housing washer, and ball assembly are independent), facilitating installation and maintenance.

II. Typical Application Scenarios

• Engineering Machinery:
  Axial support for hydraulic jacks and crane hooks, bearing vertical unidirectional loads.
• Machine Tools & Industrial Equipment:
  Axial positioning of spindles in vertical machining centers and support for centrifuge drums, ensuring stability during high-speed operation.
• Automotive & Transmission Systems:
  Axial limiting of automatic transmissions and clutch release bearings, adapting to frequent start-stop axial loads.
• High-Temperature Environments:
  Stainless steel variants (e.g., SIAIF 440 stainless steel) can be used in high-temperature scenarios such as steel mill metallurgy and kilns.
• General Machinery:
  Axial support for vacuum pumps and reducers, especially suitable for equipment requiring frequent disassembly and maintenance.

III. Technical Advantages and Precautions

Performance Features

• High-Speed Adaptability: Data shows the limiting speed reaches 7000r/min; combined with precision-machined raceways, it can meet medium-speed requirements.
• Impact Resistance: Bearing steel materials (e.g., HRB, SKF) have high hardness and wear resistance, suitable for heavy-load conditions.
• Separable Design: Shaft washers and housing washers can be installed separately during installation, reducing requirements for the assembly precision of the shaft system.

Usage Recommendations

• Minimum Load Requirement: Under high-speed or variable load conditions, ensure the bearing bears a minimum load of at least 2.32kN (data from SKF) to avoid slip damage between balls and raceways.
• Installation Specifications:
  • Avoid direct impact on the bearing; use special sleeves or press machines to apply force evenly.
  • Check the fit precision of the shaft and housing bore before installation; the mating surfaces must be clean and coated with grease.
• Lubrication Maintenance: Lithium-based grease is recommended; silicone-based grease can be used in high-temperature environments. Regularly check the grease condition.
