S51101 Single Direction Flat Thrust Bearing For Instruments / Office Equipment

S51101 Single-Direction Thrust Ball Bearing for Instruments & Office Equipment

In the intricate world of mechanical components, the S51101 bearing stands out as a reliable and efficient solution for a wide array of applications. As a single - direction thrust ball bearing, it is specifically engineered to handle axial loads with precision, ensuring seamless operation of machinery across various industries.

I. Precise Dimensional Attributes

The 12mm inner diameter of the S51101 bearing is designed to fit snugly onto shafts of corresponding specifications. This tight fit is crucial for minimizing any play or misalignment during operation. It enables efficient power transfer, reducing energy losses associated with shaft - bearing interface inefficiencies. The 26mm outer diameter strikes a balance between load - carrying capacity and space requirements. It provides sufficient surface area to distribute axial loads evenly, while still being compact enough to be integrated into space - constrained mechanical assemblies. The 9mm height of the bearing offers an optimal internal volume for the rolling elements and cage to function smoothly. This dimension ensures that the components within the bearing can move freely without interference, contributing to the overall stability and reliability of the bearing's operation.

II. Ingenious Structural Blueprint

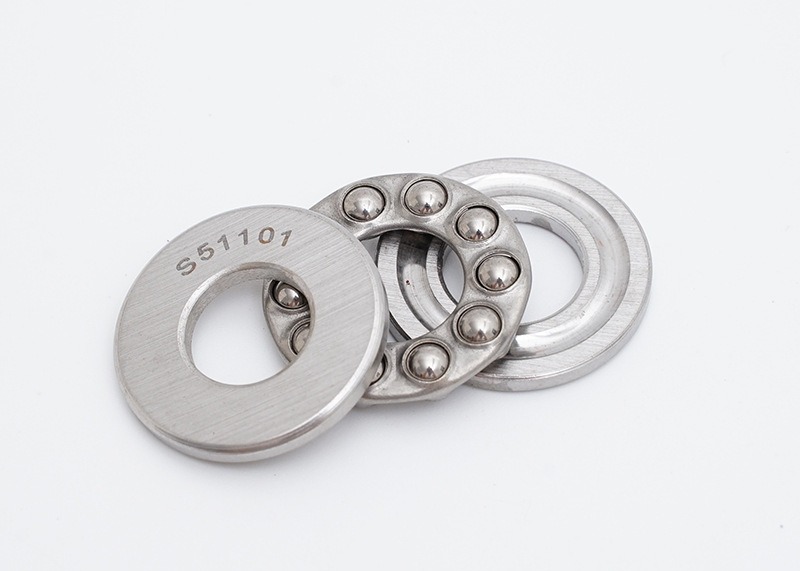

The S51101 bearing is composed of essential elements that work in harmony to deliver exceptional performance. It features a shaft washer and a housing washer, between which a set of high - quality steel ball rolling elements are placed. A sheet metal cage is an integral part of the design. The cage's primary function is to guide the rolling elements along their intended paths within the bearing. By keeping the balls evenly spaced and properly aligned, it prevents them from colliding with each other. This not only enhances the smoothness of the bearing's rotation but also significantly reduces wear and tear on the rolling elements. In addition, the cage plays a vital role in preventing the balls from dislodging during operation, especially under high - speed or high - load conditions. One of the key advantages of the S51101 bearing's design is the separability of its components. The shaft washer, housing washer, rolling elements, and cage can all be individually installed and removed. This feature simplifies maintenance and repair processes. In the event of a component failure, technicians can easily replace the faulty part without having to disassemble the entire bearing assembly, saving both time and labor costs.

III. Superior Material and Manufacturing Expertise

The S51101 bearing is crafted from top - grade materials to ensure long - lasting performance. The bearing steel used in its construction has undergone rigorous smelting and refining processes. This results in a material with high hardness, which enables the bearing to withstand substantial axial loads without deformation. The high strength of the steel also ensures that the bearing can endure the stresses associated with high - speed rotation and heavy - duty applications. Additionally, the bearing steel exhibits excellent wear resistance. This property is crucial for extending the bearing's service life, as it reduces the rate at which the surfaces of the bearing components wear down over time. In terms of manufacturing, the raceways and surfaces of the S51101 bearing are precision - machined to extremely tight tolerances. This high - precision machining results in low surface roughness, which in turn reduces friction between the rolling elements and the raceways. Lower friction means less energy is wasted in the form of heat generation, leading to more efficient operation of the bearing. It also helps to maintain a stable operating temperature, which is essential for the long - term reliability of the bearing, especially in high - speed applications.

IV. Distinctive Performance Highlights

1. Robust Axial Load - Carrying Prowess

The S51101 bearing is highly proficient in handling unidirectional axial loads. It can support significant forces from a single direction, making it an ideal choice for applications where axial stability is crucial. For instance, in small - scale presses, the S51101 bearing can effectively bear the axial forces generated during the pressing operation. This ensures that the moving parts of the press, such as the piston or ram, move smoothly and precisely, maintaining the quality of the pressed products. By reliably transmitting the axial loads, the bearing contributes to the overall stability and efficiency of the press, reducing the risk of mechanical failures due to improper load handling.

2. Exceptional Operational Smoothness

Thanks to its precise manufacturing and well - designed structure, the S51101 bearing operates with remarkable smoothness. The carefully engineered fit between the rolling elements and the raceways, along with the effective guidance provided by the cage, minimizes vibration and noise during operation. This makes it particularly suitable for applications where a quiet and stable operation is required, such as in precision measuring instruments. In devices like electronic scales or optical sensors, the S51101 bearing can ensure that the moving parts operate without any disturbances. This allows the instruments to provide accurate and reliable measurements, as even the slightest vibration or movement could affect the precision of the readings.

3. Hassle - Free Maintenance Traits

As mentioned earlier, the separability of the S51101 bearing's components simplifies maintenance procedures. During routine inspections or when a problem arises, maintenance personnel can quickly identify and replace the defective part. This reduces the downtime of the machinery, as there is no need for extensive disassembly and reassembly of the entire bearing system. For example, in a production line where time is of the essence, a malfunctioning S51101 bearing can be repaired in a short time. This ensures that the production process can resume promptly, minimizing any potential losses associated with equipment downtime. The ease of maintenance also means that less technical expertise is required, as technicians can focus on replacing the specific faulty component rather than dealing with a complex bearing disassembly and repair process.

V. Extensive Application Horizons

1. Small - Scale Mechanical Transmission Realm

In the domain of small motors, the S51101 bearing is used to provide axial support to the motor shaft. It effectively withstands the axial forces generated during motor operation, ensuring smooth and stable rotation of the shaft. This, in turn, improves the overall efficiency and reliability of the motor. In small gear - based transmission systems, such as those found in toys or small household appliances, the S51101 bearing plays a crucial role in supporting the gear shafts. It bears the axial forces resulting from gear meshing, ensuring that the gears maintain proper alignment and transmit power accurately. This helps to prevent gear wear and ensures the smooth operation of the transmission system, enhancing the performance and lifespan of the appliances.

2. Instrumentation and Precision Devices

In the field of instrumentation, the S51101 bearing is widely used in precision measuring instruments. In electronic weighing scales, for example, it supports the load - sensing mechanism, allowing for accurate weight measurements. The bearing's smooth operation and ability to handle axial forces without introducing any vibrations or disturbances are essential for ensuring the precision of the scale. In optical instruments like microscopes or telescopes, the S51101 bearing is used in the focusing and adjustment mechanisms. It enables the smooth movement of the optical components, allowing for precise focusing and alignment. This ensures that the user can obtain clear and sharp images, meeting the high - precision requirements of such instruments.

3. Office Equipment Assemblies

In office equipment, the S51101 bearing finds applications in various components. In printers, it is used in the paper - feeding mechanism. The bearing supports the shafts of the paper - feeding rollers, bearing the axial forces generated during the paper - feeding process. This ensures that the paper is fed smoothly and accurately, preventing paper jams and improving the overall performance of the printer. In copiers, the S51101 bearing is used in the drum - rotation mechanism. It provides the necessary axial support to the drum shaft, ensuring stable rotation of the drum. This is crucial for achieving high - quality copies, as any misalignment or instability in the drum's rotation could result in poor - quality prints.

4. Other Specialized Applications

The S51101 bearing also has applications in fitness equipment, such as in the pedal - rotation mechanisms of exercise bikes. It bears the axial forces exerted during pedaling, ensuring smooth and comfortable operation for the user. In small - scale medical devices, such as some types of diagnostic equipment or handheld surgical tools, the S51101 bearing provides the required axial support. Its ability to operate quietly and smoothly, along with its high - precision performance, makes it suitable for medical applications where reliability and precision are of utmost importance.

In conclusion, the S51101 bearing, with its precise dimensions, well - thought - out structure, high - quality materials, outstanding performance characteristics, and wide range of applications, is a versatile and essential component in the mechanical engineering landscape. Whether in high - precision instruments or rugged industrial machinery, it consistently delivers reliable performance, contributing to the efficient operation of diverse mechanical systems.
