DOYE IKO Tapered Roller Bearing 30305 For Excavators Wind Power / Construction Machinery

1
MOQ
DOYE IKO Tapered Roller Bearing 30305 For Excavators Wind Power / Construction Machinery
Features Gallery Product Description Chat Now
Features
Specifications
Model NO: 30305
Weight: 0.26kg
Color: Natural Metal Color
Material: High-carbon Chromium Bearing Steel
Properties: Fatigue Resistance
Model: Customizable
Highlight:

Tapered Roller Bearing 30305

,

DOYE IKO Roller Bearing

,

30305 Bearing
Basic Infomation
Place of Origin: CHINA
Brand Name: Kesle
Model Number: 30305
Payment & Shipping Terms
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union, MoneyGram,PayPal
Product Description
DOYE IKO 30305 Tapered Roller Bearings For Excavators Wind Power And Construction Machinery
I. Product Overview:
  • The 30305 tapered roller bearing is a benchmark product among high-end bearings, specially designed for high-load and high-speed scenarios. It features excellent reliability and cost-effectiveness. As a classic model of single-row tapered roller bearings, its split inner and outer ring structure facilitates installation and debugging, making it widely used in automotive, wind power, construction machinery and other fields.

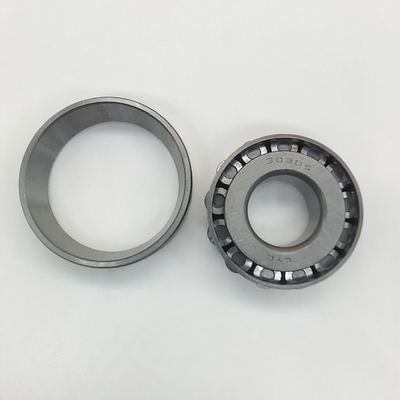

DOYE IKO Tapered Roller Bearing 30305 For Excavators Wind Power / Construction Machinery 0

II. Core Parameters:
  • Inner diameter: 25 mm; Outer diameter: 62 mm; Total width: 18.25 mm; Contact angle: 11.31°
  • Adopting vacuum-degassed bearing steel with a hardness of HRC 60-64 (oxygen content ≤ 8ppm), its service life is 20% longer than that of traditional bearings.
  • Radial load capacity: 55.3 kN; Axial load capacity: 43 kN; Limiting speed: 12,000 r/min
  • Two precision classes are available: P0 (general grade) and P6 (precision grade). For the P6 class, the raceway roundness error is ≤ 1.5 μm, and the vibration value is reduced by 30%.



III. Core Technologies and Manufacturing Processes:



Material Innovation
  • Using vacuum-degassed bearing steel (52100 chromium steel). The microstructure is optimized through quenching + tempering processes, with wear resistance 18% higher than that of ordinary electroslag steel. It is suitable for harsh environments such as high temperatures (-30°C to 110°C) and high dust levels.



Precision Design
  • Split structure: The inner and outer rings can be installed separately, supporting preload adjustment, which is applicable to high-precision transmission systems.
  • Stamped steel cage: Optimizes the roller guidance path, reducing friction loss by 15% and improving stability during high-speed operation.



IV. Construction Machinery Field
  • Excavator travel mechanism: Widely used in excavators, it can bear an axial load of 43 kN with a failure rate of less than 0.8%.
  • Mining machinery: Replaces FAG bearings in gold mine crushers of Anglo American (South Africa), reducing costs by 30% and increasing wear resistance by 18%.
Tapered roller bearings are widely used in industries such as automotive, rolling mills, mining, metallurgy, and plastic machinery.

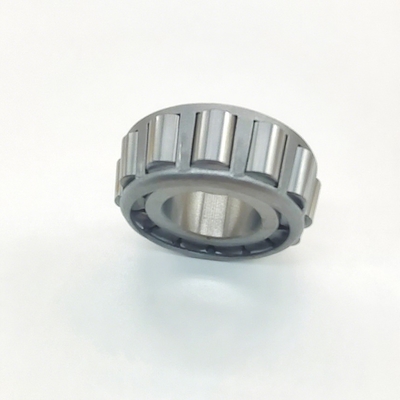

DOYE IKO Tapered Roller Bearing 30305 For Excavators Wind Power / Construction Machinery 1
