Axial Cylindrical Roller Bearing NJ215EM High Load Roller Bearings

NJ215EM Cylindrical Roller Bearing: High-Load, Stable & Reliable For Machinery

I. Product Overview

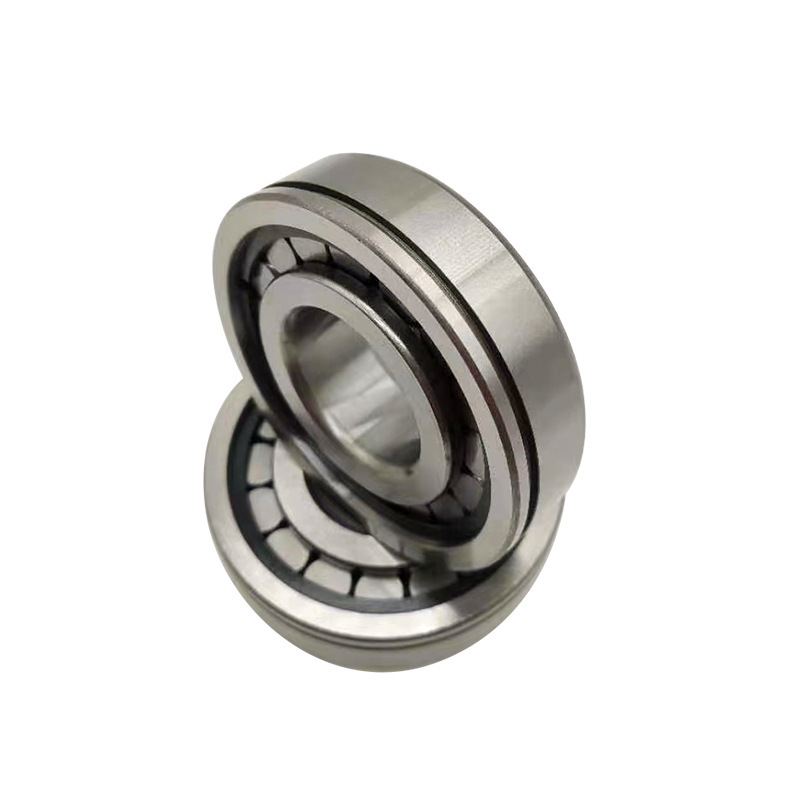

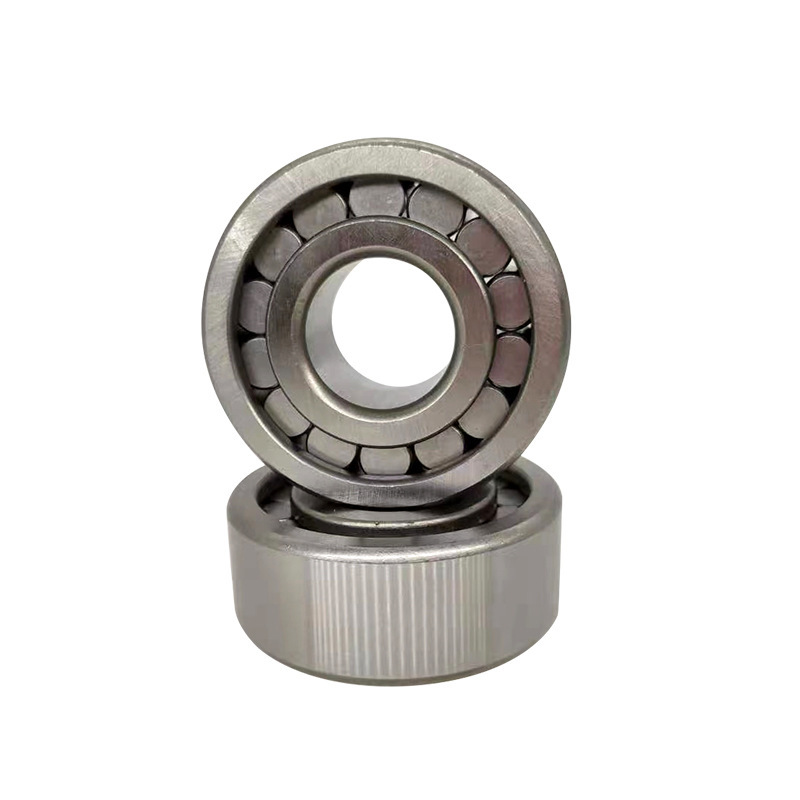

The NJ215EM cylindrical roller bearing is a crucial component in industrial machinery, playing a significant role in ensuring smooth power transmission and stable operation of various equipment. As a member of the single-row cylindrical roller bearing family, it features an inner diameter of 75mm, an outer diameter of 130mm, and a width of 25mm. This size combination allows for an optimal balance between compactness and substantial load - bearing capabilities, making it highly adaptable to a wide range of mechanical applications that demand reliable performance under diverse operating conditions.

II. Structural Design

1. Rolling Elements: The rolling elements of the NJ215EM bearing are high - precision cylindrical rollers. These rollers are crafted from top - grade high - carbon chromium bearing steel, going through a series of meticulous precision machining processes. The result is an extremely low surface roughness and dimensional accuracy that is controlled within a very tight micrometer - level tolerance. The cylindrical shape of the rollers enables line contact with the raceways. In contrast to point - contact bearings, this line - contact design significantly increases the contact area, facilitating more uniform load distribution. This not only remarkably enhances the bearing's radial load - carrying capacity but also effectively reduces local wear, thereby substantially extending the bearing's service life.

2. Raceways: Both the inner and outer ring raceways of the bearing are processed using super - finishing grinding techniques. This results in a surface hardness reaching up to HRC60 - 65, endowing the raceways with excellent wear - resistance and fatigue - resistance properties. The geometric parameters of the raceways are precisely calculated to achieve a perfect fit with the cylindrical rollers. This ensures that the rollers can roll smoothly within the raceways, minimizing the friction coefficient and reducing vibration and noise during operation. Such a design provides a solid foundation for the efficient and stable operation of the bearing.

3. Cage: An integral metal - machined cage is employed in the NJ215EM bearing. Made from high - strength alloy steel, the cage undergoes special heat treatment processes to enhance its rigidity and toughness. The pocket size accuracy of the cage is extremely high. It serves to precisely guide and separate the cylindrical rollers, preventing collisions and frictions among them. This ensures that the rollers maintain an orderly arrangement even during high - speed operation, thus improving the overall stability of the bearing and further extending its service life.

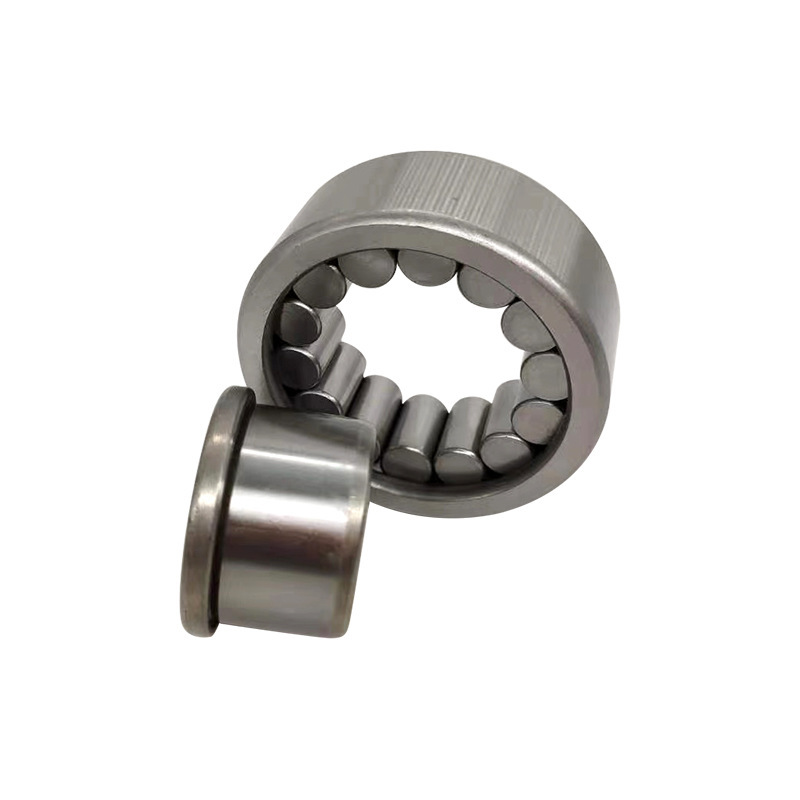

4. Rib Structure: The outer ring of the NJ215EM bearing is designed with double ribs, while the inner ring has a single rib. This rib configuration imparts a certain degree of axial load - carrying capacity to the bearing. It can withstand one - way axial forces and simultaneously performs an axial positioning function for the shaft or housing. By limiting the displacement of the shaft or housing in a specific direction, the bearing can operate stably even when subjected to combined loads, ensuring the reliability of the mechanical system.

III. Performance Characteristics

1. High Radial Load - Carrying Capacity: Due to the line - contact design between the cylindrical rollers and the raceways, the NJ215EM bearing exhibits a remarkable radial load - carrying capacity. Its basic rated dynamic load can reach a relatively high value (specific values may vary depending on the actual product specifications). This enables it to effortlessly handle the substantial radial forces generated during the operation of heavy - duty machinery, such as in the main shaft support systems of large - scale industrial motors, precision machine tools, and various heavy - load transmission devices.

2. Good Axial Load - Carrying Performance: Although primarily designed to bear radial loads, the unique rib structure of the NJ215EM bearing allows it to withstand a certain amount of one - way axial load. In working conditions where axial forces are present, it can provide reliable axial positioning for the equipment. This ensures that the machinery can operate normally under complex stress environments, enhancing the stability and reliability of the overall mechanical system.

3. High - Speed Rotation Stability: The NJ215EM bearing is engineered with precision processing technologies and an optimized structural design. This enables it to maintain stable performance even at high rotational speeds. The low - friction characteristics between the rollers and the raceways, combined with the precise guidance of the cage for the rollers, effectively reduce heat generation and vibration during operation. As a result, the bearing can meet the requirements of high - speed, high - efficiency power transmission in applications such as high - speed spindles in the machine tool industry, where stable and accurate rotational performance is crucial.

4. Excellent Fatigue Resistance: Utilizing high - quality materials and advanced manufacturing processes, the NJ215EM bearing demonstrates excellent fatigue resistance. Under long - term full - load operation conditions, it can effectively resist failures caused by material fatigue. This significantly extends the bearing's service life, reducing the frequency of equipment maintenance and minimizing downtime. Such reliability is highly valued in industrial applications where continuous operation and high productivity are essential.

IV. Application Fields

1. Industrial Machinery: The NJ215EM bearing finds extensive use in a wide range of industrial machinery. In manufacturing plants, it is commonly employed in the transmission systems of automated production lines, providing stable support for high - speed and high - load rotating shafts. Its high load - carrying capacity and stability ensure the smooth operation of the production line, reducing the risk of equipment failures and improving production efficiency.

2. Power Generation Equipment: In the power generation industry, it is suitable for use in the rotor support systems of generators and turbines. These power - generating devices operate under high - speed and high - load conditions, and the NJ215EM bearing's ability to handle large radial loads and certain axial forces, along with its high - speed rotation stability, makes it an ideal choice. It helps to ensure the safe and reliable operation of power generation equipment, contributing to the stable supply of electricity.

3. Machine Tool Industry: In the machine tool sector, the NJ215EM bearing is often used for the spindle and feed shaft support of precision machine tools. Machine tools require high precision and stability during the machining process to ensure the accuracy of the machined parts. The low - vibration and high - rigidity characteristics of the NJ215EM bearing effectively reduce spindle run - out and vibration, thereby guaranteeing the dimensional accuracy and surface quality of the machined workpieces. This, in turn, improves the overall machining efficiency and product quality in the machine tool industry.

4. Transportation Equipment: In transportation applications, such as in the axle support systems of heavy - duty trucks and construction machinery, the NJ215EM bearing plays a vital role. These vehicles and equipment operate under harsh conditions, with large loads and vibrations. The bearing's high load - carrying capacity, excellent fatigue resistance, and ability to withstand shock loads make it well - suited for these applications. It ensures the safe and reliable operation of transportation equipment, reducing maintenance costs and enhancing the overall durability of the vehicles.

V. Dimensions and Specification Parameters

VI. Maintenance Points

1. Lubrication Management: Proper lubrication is essential for maintaining the performance and extending the service life of the NJ215EM bearing. The choice of lubricant, whether grease or oil, should be based on the specific operating conditions of the equipment, including temperature, speed, and load. High - temperature extreme - pressure grease is often recommended for applications where the bearing is subjected to high loads and elevated temperatures. Before installation, it is crucial to ensure that both the bearing interior and the installation area are thoroughly clean. The appropriate filling amount of grease is typically 1/3 to 1/2 of the bearing's internal space. Regular inspections of the lubrication state should be carried out, and the lubricant should be replenished or replaced in a timely manner to maintain optimal lubrication performance.

2. Regular Inspection: Establishing a comprehensive regular inspection system is key to early detection of potential bearing problems. Visual inspections should be conducted periodically to check for any signs of cracks, rust, or abnormal wear on the bearing surfaces. Additionally, advanced monitoring tools such as vibration sensors and temperature monitors can be used to continuously monitor the bearing's operating conditions. Under normal circumstances, the bearing's working temperature should not exceed 40°C above the ambient temperature. If any abnormal increases in vibration or temperature are detected, the equipment should be immediately shut down for a thorough inspection, and necessary repairs or bearing replacements should be carried out to prevent further damage and ensure the safe operation of the machinery.

3. Installation Specifications: When installing the NJ215EM bearing, a clean installation environment must be maintained to prevent dust and impurities from entering the bearing. Specialized installation tools, such as hydraulic presses and bearing installation sleeves, should be used to ensure proper installation without causing damage to the bearing. Direct hammering on the bearing's outer or inner ring should be strictly avoided, as this can lead to bearing deformation and premature failure. During installation, it is essential to ensure that the bearing's fit with the shaft and the bearing housing meets the design requirements precisely. The interference fit should be carefully controlled within the specified range to ensure proper bearing operation and to prevent issues such as bearing slippage or over - tightening.

4. Storage Precautions: For NJ215EM bearings that are not in immediate use, proper storage conditions are crucial to maintain their quality and performance. Bearings should be stored in a dry, well - ventilated area free from corrosive gases, away from heat sources and areas with high humidity. They should be placed horizontally to avoid uneven stress and deformation caused by stacking. To prevent rusting, bearings can be wrapped in anti - rust paper or plastic film. Regular checks should be carried out during storage to ensure that the bearings remain in good condition and that their performance is not compromised over time.
