52204 Double Direction Thrust Ball Bearing For Construction / Medical Equipment

52204 Double-Direction Thrust Ball Bearing For Construction & Medical Equipment

In the operation system of various mechanical equipment, the 52204 bearing, as a key component, plays an indispensable role in many fields with its unique design and reliable performance. It belongs to the double - direction thrust ball bearing, with specific structural and performance characteristics, which can meet diverse industrial needs.

I. Precise Dimensional Specifications

The 15mm inner diameter is precisely adapted to specific transmission shaft specifications, ensuring a tight fit with the shaft, realizing efficient and stable torque transmission during power transmission, and reducing energy loss and operation deviation caused by mismatched inner diameters. The 40mm outer diameter design, while ensuring that the bearing has a certain load - carrying space, takes into account the compatibility with external mechanical structures, and can be adapted to a variety of common bearing seats or installation spaces. The 26mm height provides sufficient and reasonable operating space for the rolling elements, cages and other components inside the bearing, ensuring that all components do not interfere with each other during operation and maintain a good working state.

II. Unique Structural Design

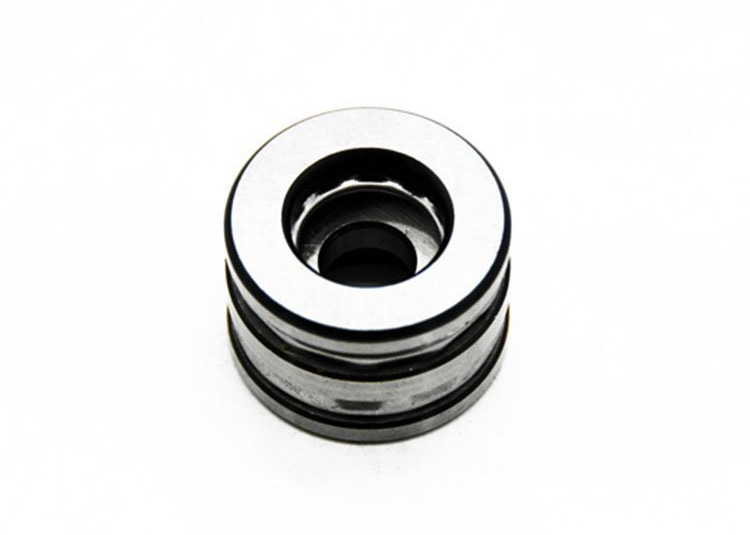

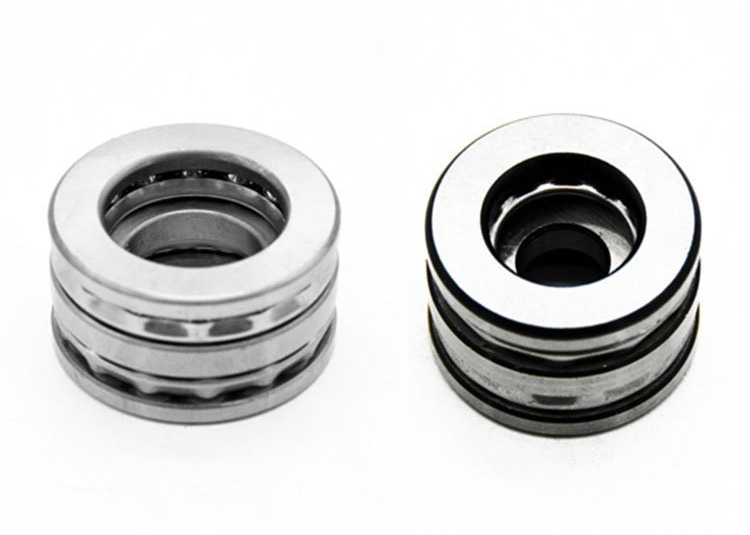

The 52204 double - direction thrust ball bearing is composed of washer - like rings with ball rolling raceway grooves. This structure enables the bearing to effectively bear axial loads from two directions, meeting the force requirements of mechanical equipment under complex working conditions. For example, in some equipment that needs frequent start - stop or bear the impact of bidirectional axial forces, the bearing can stably maintain the operation of the equipment by virtue of its bidirectional load - carrying characteristics.

Its rings are divided into flat base cushion type and self - aligning spherical base cushion type. The flat base cushion type ring can provide a relatively stable plane support during installation, which is suitable for scenarios with high requirements on installation accuracy and small axial displacement during operation; the self - aligning spherical base cushion type ring has a certain self - aligning function, which can adapt to the slight misalignment of the shaft during operation, effectively reduce the additional stress caused by installation errors or shaft system deformation, prolong the service life of the bearing, and improve the operation stability of the equipment.

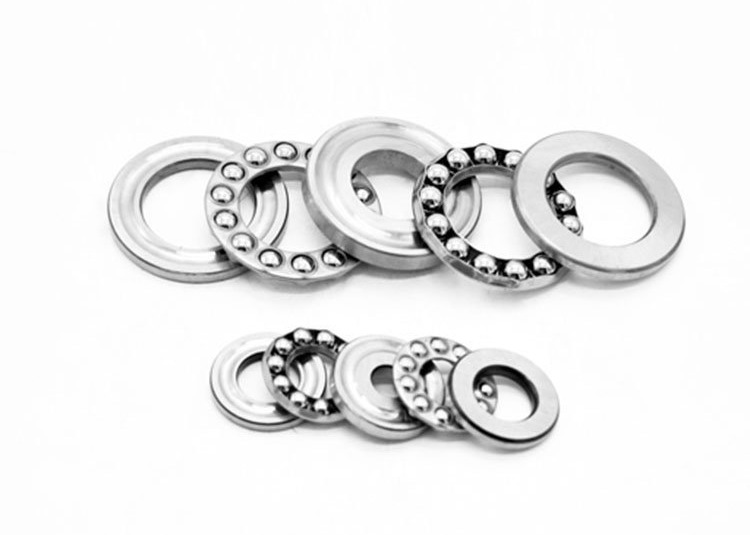

In addition, the components of the bearing are separable, and the shaft ring, seat ring and rolling elements can be installed and disassembled respectively. This feature is extremely convenient in the process of equipment maintenance and overhaul. Maintenance personnel can quickly replace the damaged components, greatly shortening the equipment downtime and improving the use efficiency of the equipment. Moreover, many components are interchangeable, which reduces the maintenance cost and brings higher economic benefits to users while ensuring the normal operation of the equipment.

III. High - Quality Material Technology

The rings and rolling elements of the 52204 bearing are usually made of high - quality bearing steel. These steels have undergone strict smelting and refining processes, and have high hardness, high strength and good wear resistance. High hardness enables the bearing to bear large axial loads, and can still maintain the shape accuracy of the rings and rolling elements under long - term high - load operation, reducing wear and deformation; high strength ensures that the bearing will not easily break and other failure situations under complex working conditions; good wear resistance can effectively extend the service life of the bearing and reduce the frequency of equipment maintenance.

The cage of some models is made of sheet metal, which has good formability and certain toughness. It can accurately guide the movement track of the rolling elements in the raceway, ensure the uniform distribution of the rolling elements, avoid mutual collision and interference between the rolling elements, thus improving the operation stability and accuracy of the bearing. At the same time, the sheet metal cage, on the premise of ensuring structural strength, has a certain lightweight advantage, which helps to reduce the inertia of the bearing during operation and improve the response speed of the equipment.

In terms of manufacturing process, the raceways and the surfaces of various components of the bearing are precision machined to achieve extremely low surface roughness. This can not only reduce the friction coefficient between the rolling elements and the raceways, reduce energy loss, improve the operation efficiency of the bearing, but also reduce the heat generated by friction, ensure the temperature stability of the bearing during high - speed operation, and further improve the performance and reliability of the bearing.

IV. Excellent Performance Advantages

1. Excellent Bidirectional Axial Load - Carrying Capacity

As a double - direction thrust ball bearing, the 52204 bearing performs excellently in axial load - carrying, and can bear large axial forces from two directions at the same time. Taking an industrial lifting equipment as an example, during the lifting and lowering of goods, bidirectional axial forces will be generated. The 52204 bearing can stably carry these forces, ensure the stable operation of the lifting platform, avoid equipment shaking or jamming caused by insufficient axial force bearing, and ensure the safety and efficient operation of the equipment.

2. Good Operation Stability

The precision manufacturing process and reasonable structural design make the 52204 bearing have good stability during operation. The high - precision fit between the rolling elements and the raceways, as well as the accurate guidance of the cage to the rolling elements, effectively reduce the vibration and noise during operation. In some precision instrument equipment with high requirements on operation stability, such as the transmission system of optical detection equipment, the 52204 bearing can ensure the stability of the equipment during operation, provide a reliable basis for the high - precision detection of the instrument, and ensure the accuracy of the detection results.

3. Convenient Maintenance Characteristics

As mentioned above, the separability and interchangeability of its components bring great convenience to maintenance work. During daily maintenance or failure of the equipment, maintenance personnel do not need to carry out complex disassembly and replacement of the entire bearing assembly, but only need to operate on the damaged components. This not only reduces the difficulty of maintenance, but also greatly shortens the equipment downtime, improves the availability of the equipment, and provides a strong guarantee for the continuous production of enterprises.

V. Wide Application Fields

1. Construction Machinery Field

In the lifting system of the crane hook, the 52204 bearing, with its bidirectional axial load - carrying capacity, can stably bear the bidirectional axial forces generated when the hook lifts and lowers heavy objects, ensure the stable operation of the hook, and improve the loading and unloading efficiency and safety of heavy objects. In some small hydraulic jacks, the bearing also plays an important role, bearing the axial forces during the jacking and falling of the jack, ensuring the smooth and reliable operation of the jack.

2. Machine Tool Equipment Field

In the lead screw transmission system of machine tools, the 52204 bearing is used to support the lead screw and bear the axial force generated during the rotation of the lead screw. Its good operation stability helps to ensure the accuracy of lead screw transmission, so that the machine tool can accurately control the position of the tool or workpiece during processing, and improve the dimensional accuracy and surface quality of the processed parts. In some simple small machine tools such as drilling machines and milling machines, the 52204 bearing is also widely used, providing key support for the stable operation of the machine tools.

3. Medical Device Field

In some vertical centrifuge equipment used to separate blood or other samples, the 52204 bearing bears the axial force generated when the centrifuge rotates at high speed, ensures the stable operation of the drum, and realizes the efficient and accurate separation of samples. In the transmission mechanism of some medical equipment, the low vibration and low noise characteristics of the bearing can meet the requirements of medical equipment for operation stability and quiet environment, and provide reliable guarantee for the medical diagnosis and treatment process.

4. Other Fields

In the lifting device of storage shelves, the 52204 bearing helps to realize the stable lifting of the shelves, facilitating the storage and retrieval of goods. In the transmission system of some small agricultural machinery, the bearing can also adapt to the relatively harsh working environment, bear axial forces, ensure the normal operation of the machinery, and help agricultural production operations.

The 52204 double - direction thrust ball bearing, with its precise dimensional specifications, unique structural design, high - quality material technology, excellent performance advantages and wide application fields, has become an important guarantee for many mechanical equipment to achieve efficient and stable operation. Whether in precision instruments with high precision requirements or large construction machinery with complex working conditions, it can show its reliable performance and contribute to the development of various industries.
