51103 Thrust Ball Bearing Single Direction For Cranes / Medical Equipment

51103 Single-Direction Thrust Ball Bearing for Cranes & Medical Equipment

In the precision operation system of modern mechanical equipment, the 51103 bearing, as a key component, plays a pivotal role in many industrial fields with its unique design and reliable performance. It belongs to the single-direction thrust ball bearing, with specific structural and performance characteristics, which can meet diverse mechanical application needs.

I. Precise Dimensional Specifications

The 17mm inner diameter is precisely designed to closely fit specific specifications of transmission shafts, ensuring a stable and accurate fit between the shaft and the bearing during power transmission. This tight fit not only helps to efficiently transmit torque but also effectively reduces energy loss and operational deviations caused by mismatched inner diameters, ensuring the stability and accuracy of power transmission. The 30mm outer diameter design, while ensuring the bearing has a certain load-carrying capacity, fully considers the adaptability to external mechanical structures. It can perfectly fit with various common bearing housings or installation spaces, providing convenience for the overall layout and assembly of the equipment, enabling the bearing to play a stable role in different mechanical environments. The 9mm height creates sufficient and reasonable operating space for core components such as rolling elements and cages inside the bearing. When the bearing is running, all components can operate smoothly in this space without mutual interference, thus maintaining a good working state and ensuring the efficient and stable operation of the bearing.

II. Unique Structural Design

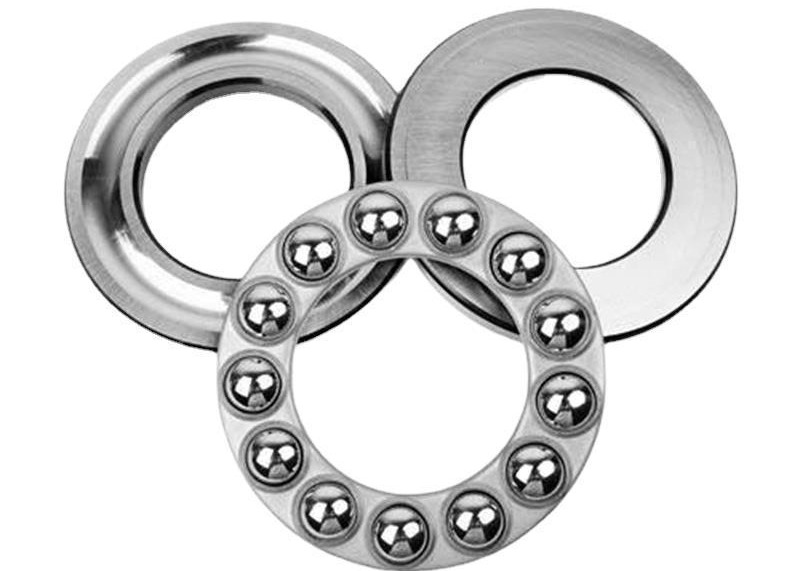

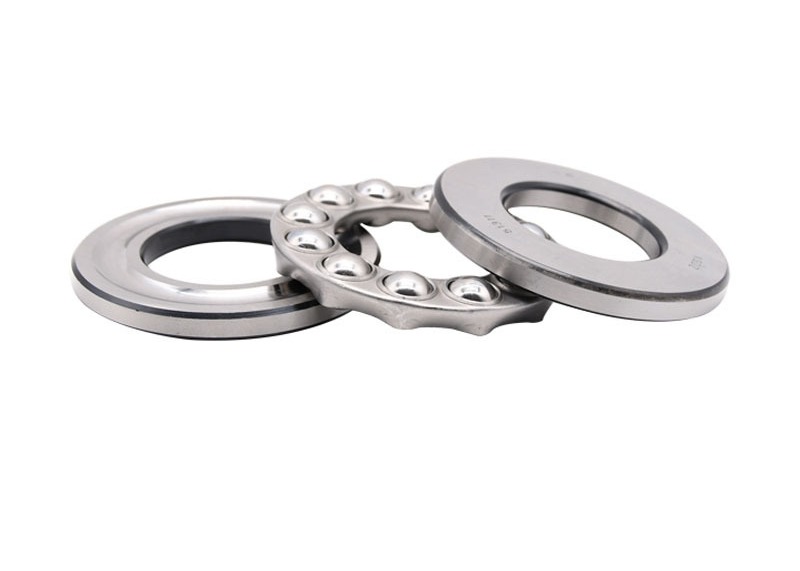

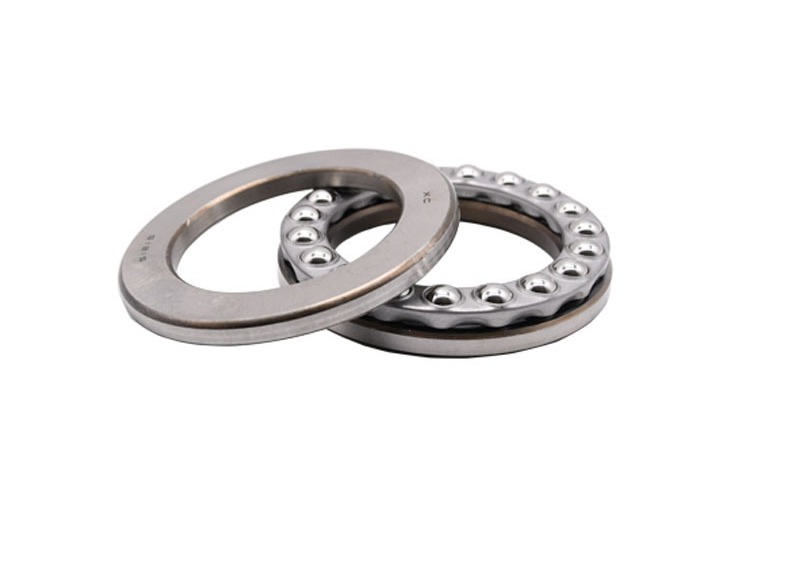

The 51103 single-direction thrust ball bearing consists of a shaft washer, a housing washer, and a ball and cage thrust assembly. This simple yet efficient structure endows the bearing with unique performance. The precise design of the shaft washer and housing washer provides a stable raceway for the rolling elements, enabling the bearing to effectively bear axial loads from a single direction. In practical applications, such as in some transmission systems that only bear unidirectional axial forces, the bearing can stably support and transmit axial forces by virtue of its structural advantages, ensuring the normal operation of the equipment.

The cage plays an important role in the bearing structure. It is usually made of sheet metal, which has good formability and certain toughness. The cage can accurately guide the movement trajectory of the rolling elements in the raceway, ensuring that the rolling elements are evenly distributed on the raceway and avoiding mutual collision and interference between the rolling elements. This not only improves the smoothness of the bearing operation but also enhances its rotational accuracy, enabling the bearing to maintain stable performance output during operation. At the same time, the sheet metal cage, on the basis of ensuring structural strength, has a certain lightweight advantage. The lightweight design helps to reduce the inertia of the bearing during operation, enabling the equipment to respond more quickly during start-up, stop, and speed change processes, and improving the overall operating efficiency of the equipment.

In addition, the components of the 51103 bearing have separable characteristics. The shaft washer, housing washer, rolling elements, and cage assembly can be installed and disassembled separately. This feature is extremely convenient in the maintenance and overhaul of equipment. When the equipment needs daily maintenance or fails and needs repair, maintenance personnel do not need to perform complex overall disassembly of the entire bearing assembly, but only need to replace the damaged parts individually. This not only significantly reduces the difficulty of maintenance work but also greatly shortens the equipment downtime, improves the use efficiency of the equipment, and reduces the economic loss caused by equipment downtime for enterprises. Moreover, because many components are interchangeable, enterprises can more conveniently select appropriate replacement parts during maintenance, further reducing maintenance costs and improving economic benefits.

III. High-Quality Material Technology

The shaft washer, housing washer, and rolling elements of the 51103 bearing are usually made of high-quality bearing steel. These bearing steels have undergone strict smelting and refining processes during production, enabling them to have excellent properties such as high hardness, high strength, and good wear resistance. The high hardness characteristic allows the bearing to bear large axial loads. Under long-term high-load operation conditions, it can still maintain the shape accuracy of the shaft washer, housing washer, and rolling elements, effectively reducing wear and deformation caused by force, and ensuring the stable and reliable performance of the bearing. High strength ensures that the bearing will not easily break or other failure phenomena under complex and changing working conditions, providing a solid guarantee for the safe operation of the equipment. Good wear resistance greatly extends the service life of the bearing, reduces the frequency of equipment shutdown maintenance due to bearing replacement, improves the continuous operation capability of the equipment, and reduces the operating costs of enterprises.

In terms of manufacturing technology, the raceways of the bearing and the surfaces of various components have undergone precision machining to achieve extremely low surface roughness. This high-precision surface machining process has multiple advantages. On the one hand, it can significantly reduce the friction coefficient between the rolling elements and the raceways, reduce energy loss during friction, thereby improving the operating efficiency of the bearing and making the equipment more energy-efficient during operation. On the other hand, low surface roughness can also effectively reduce the heat generated by friction, ensuring that the bearing can maintain a stable temperature during high-speed operation. Stable working temperature is crucial for the performance and reliability of the bearing. It can avoid problems such as material performance degradation and lubrication failure caused by excessive temperature, further improving the overall performance and service life of the bearing.

IV. Excellent Performance Advantages

1. Excellent Unidirectional Axial Load-Carrying Capacity

As a single-direction thrust ball bearing, the 51103 bearing performs excellently in bearing unidirectional axial loads. It can stably carry large axial forces from a single direction, providing reliable support for the transmission system of the equipment. Taking the hook lifting system of a crane as an example, during the process of the hook lifting heavy objects, a large unidirectional axial force will be generated. The 51103 bearing can accurately bear and transmit this axial force, ensuring the stable rise of the hook, avoiding equipment shaking or out-of-control phenomena caused by insufficient axial force bearing, and strongly ensuring the safety and efficiency of crane operations.

2. Good Operation Stability

The 51103 bearing shows good stability during operation due to its precise manufacturing process and reasonable structural design. The high-precision fit between the rolling elements and the raceways, as well as the accurate guidance of the cage to the rolling elements, effectively suppresses the generation of vibration and noise during operation. In some precision instrument equipment with high requirements for operation stability, such as high-precision optical detection equipment, the 51103 bearing used in its transmission system can ensure the stability of the equipment during operation, providing a reliable basis for the high-precision detection of the instrument. The stable operation state can ensure that the measurement accuracy is not disturbed during the detection process, ensuring the accuracy and reliability of the detection results, and meeting the strict requirements of precision instruments for high-precision operation.

3. Convenient Maintenance Characteristics

As mentioned earlier, the separability and interchangeability of the components of the 51103 bearing bring great convenience to the maintenance of equipment. During daily maintenance of the equipment or when a failure occurs, maintenance personnel do not need to perform complex overall disassembly operations, but only need to replace the specific damaged parts. This feature not only reduces the technical difficulty of maintenance work, enabling maintenance personnel to complete maintenance tasks more quickly and accurately but also greatly shortens the equipment downtime. The shortening of equipment downtime means that enterprises can resume production faster, improves the availability of equipment, provides a strong guarantee for the continuous production of enterprises, and reduces the potential economic loss caused by equipment downtime.

V. Wide Application Fields

1. Construction Machinery Field

In the hook lifting mechanism of cranes, the 51103 bearing plays a key role. It can stably bear the unidirectional axial force generated when the hook lifts and lowers heavy objects, ensuring the stable operation of the hook, and greatly improving the efficiency and safety of heavy object loading and unloading. In some small hydraulic jack equipment, this bearing is also indispensable. During the jacking and falling of the jack, the 51103 bearing is responsible for bearing the axial force, ensuring the smooth and reliable operation of the jack, and providing stable support for various operating scenarios of construction machinery.

2. Machine Tool Equipment Field

In the lead screw transmission system of machine tools, the 51103 bearing is often used to support the lead screw and bear the unidirectional axial force generated during the rotation of the lead screw. Its good operation stability helps to ensure the accuracy of lead screw transmission, enabling the machine tool to accurately control the position of the tool or workpiece during processing. This is crucial for improving the dimensional accuracy and surface quality of processed parts, and can meet the strict requirements of machine tools in the field of precision machining. In some simple small machine tools such as drilling machines and milling machines, the 51103 bearing is also widely used, providing necessary support for the stable operation of these small machine tools and contributing to the efficient production of the mechanical processing industry.

3. Medical Device Field

In some medical device equipment, such as small centrifuges used to separate blood or other samples, the 51103 bearing undertakes important tasks. During the high-speed rotation of the centrifuge, a large unidirectional axial force will be generated. The 51103 bearing can stably bear this axial force, ensuring the stable operation of the centrifuge drum, thereby realizing efficient and accurate separation of samples. In the transmission mechanism of some medical equipment, the low vibration and low noise characteristics of the bearing can also well meet the requirements of medical equipment for operation stability and quiet environment, providing reliable guarantee for the medical diagnosis and treatment process, and helping to improve the quality and accuracy of medical services.

4. Other Fields

In the lifting device of storage shelves, the 51103 bearing can help realize the stable lifting of the shelves, facilitate the storage and retrieval of goods, and improve the utilization efficiency of storage space. In the transmission system of some small agricultural machinery, although the working environment is relatively harsh, the 51103 bearing, with its reliable performance, can adapt to complex working conditions, bear axial forces, ensure the normal operation of agricultural machinery, provide strong support for agricultural production operations, and promote the efficient development of agricultural production.

The 51103 single-direction thrust ball bearing, with its precise dimensional specifications, unique structural design, high-quality material technology, excellent performance advantages, and wide application fields, has become an important guarantee for many mechanical equipment to achieve efficient and stable operation. Whether in precision instruments with high precision requirements or large construction machinery with complex working conditions, it can fully demonstrate its reliable performance and contribute important strength to the development of various industries.
