51100 Single-Direction Thrust Ball Bearing for Instruments & Office Equipment

Introduction to 51100 Bearing

In the transmission and support system of modern mechanical equipment, the 51100 bearing, with its unique design and reliable performance, has become an indispensable key component in many fields. As a single-direction thrust ball bearing, the 51100 bearing mainly bears axial loads and plays an important role in ensuring the stable operation of equipment and achieving precise transmission.

I. Precise Dimensional Specifications

The 10mm inner diameter design can closely fit with the transmission shaft of specific specifications, ensuring a stable connection between the shaft and the bearing during power transmission, effectively reducing looseness and displacement caused by mismatched inner diameters, guaranteeing the stability and accuracy of torque transmission, reducing energy loss, and prolonging the service life of the equipment. The 24mm outer diameter, while ensuring the bearing has a certain load-carrying capacity, fully considers the adaptability to various mechanical structures. Whether it is a small precision instrument or a transmission device in a compact space, the 51100 bearing can be easily installed, providing convenience for the miniaturization and integration design of equipment. The 9mm height provides sufficient and reasonable operating space for the rolling elements, cages and other core components inside the bearing, so that all components do not interfere with each other during operation, maintain a good working state, and ensure the efficient and stable operation of the bearing.

II. Unique Structural Design

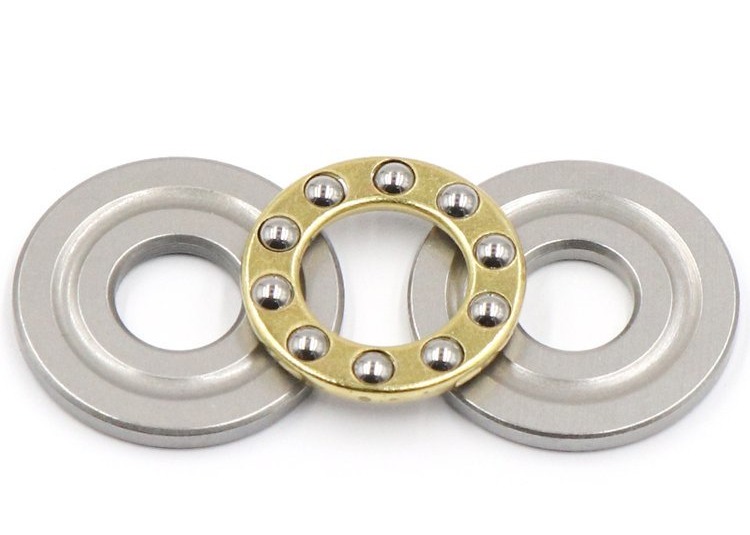

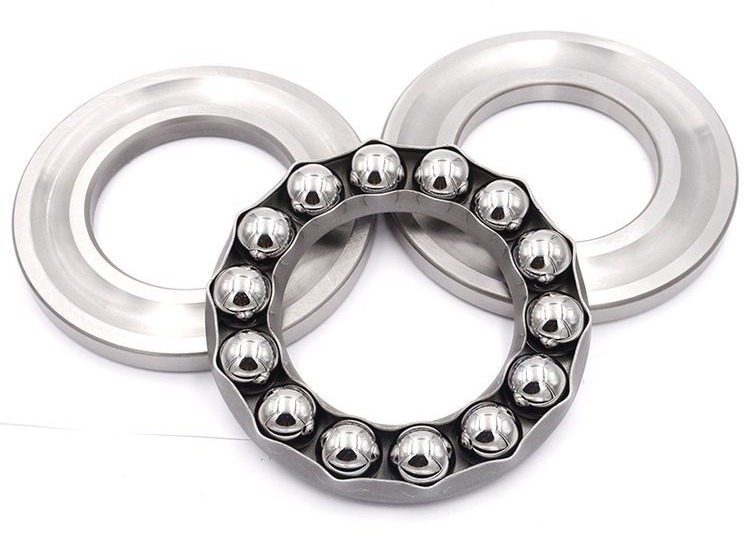

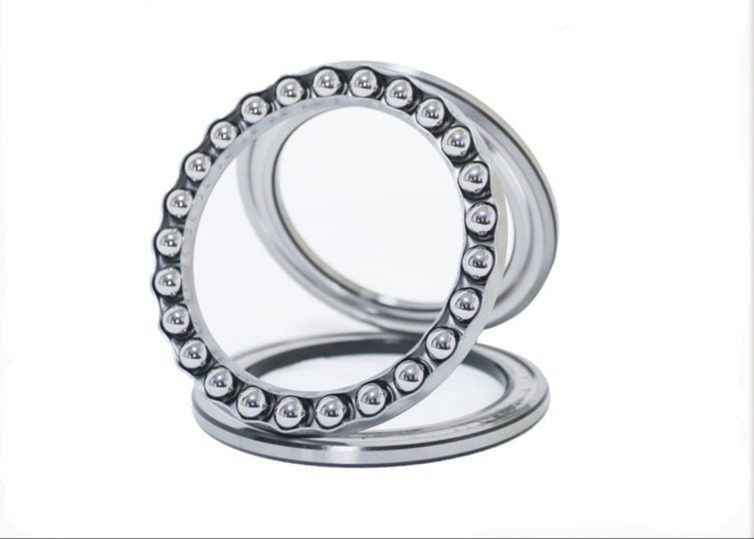

The 51100 single-direction thrust ball bearing consists of a shaft washer, a housing washer, and a set of rolling elements (steel balls) and cage components located between them. The shaft washer is connected to the rotating part, and the housing washer is fixed on the stationary part. This structure enables the bearing to efficiently bear axial loads from a single direction. During the operation of the equipment, the axial force is transmitted to the rolling elements through the shaft washer, and the rolling elements roll in the raceway, evenly distributing and transmitting the force to the housing washer, thereby realizing smooth force transmission.

The cage is usually formed by stamping sheet metal, which has good toughness and rigidity. It can not only accurately guide the rolling elements to roll orderly in the raceway, avoid mutual collision and friction between the rolling elements, improve the operation stability and rotation accuracy of the bearing, but also effectively prevent the rolling elements from falling off during operation, enhancing the safety and reliability of the bearing in use.

In addition, the components of the 51100 bearing have separable characteristics. The shaft washer, housing washer, rolling elements and cage components can be installed and disassembled separately. This feature shows great advantages in equipment maintenance and overhaul. When the bearing fails, maintenance personnel do not need to perform complex overall disassembly of the entire bearing assembly, but only need to replace the damaged parts individually, which significantly reduces the difficulty of maintenance work, shortens the equipment downtime, improves the use efficiency of the equipment, and reduces the maintenance cost of the enterprise.

III. High-Quality Material Technology

The shaft washer, housing washer and rolling elements of the 51100 bearing are all made of high-quality bearing steel. These bearing steels have undergone strict smelting and refining processes during production, and have the characteristics of high hardness, high strength and good wear resistance. High hardness enables the bearing to bear large axial loads. Under long-term high-load operation, it can still maintain the shape accuracy of the shaft washer, housing washer and rolling elements, effectively reducing wear and deformation caused by force, and ensuring the stable and reliable performance of the bearing. High strength ensures that the bearing will not easily break or other failure phenomena under complex working conditions, providing a solid guarantee for the safe operation of the equipment. Good wear resistance greatly prolongs the service life of the bearing, reduces the frequency of equipment shutdown due to bearing replacement, improves the continuous operation capacity of the equipment, and reduces the operating cost of the enterprise.

In terms of manufacturing technology, the raceways of the bearing and the surfaces of various components have undergone precision machining to achieve extremely low surface roughness. This high-precision surface treatment, on the one hand, can significantly reduce the friction coefficient between the rolling elements and the raceways, reduce energy loss during friction, improve the operating efficiency of the bearing, and make the equipment run more energy-efficient; on the other hand, low surface roughness helps to reduce the heat generated by friction, ensuring that the bearing can maintain a stable temperature during high-speed operation, avoiding problems such as material performance degradation and lubrication failure caused by excessive temperature, and further improving the overall performance and service life of the bearing.

IV. Excellent Performance Advantages

1. Excellent Unidirectional Axial Load-Carrying Capacity

As a single-direction thrust ball bearing, the 51100 bearing performs excellently in bearing unidirectional axial loads. It can stably carry axial forces from a single direction, providing reliable support for the transmission system of the equipment. For example, in some mechanical devices with low-speed operation but large axial forces, such as the slider guide mechanism of small presses, the 51100 bearing can accurately bear and transmit axial forces, ensuring the smooth movement of the slider, avoiding equipment shaking or failure caused by insufficient axial force bearing, and effectively ensuring the normal operation of the equipment.

2. Good Operation Stability

The 51100 bearing shows good stability during operation due to its precise manufacturing process and reasonable structural design. The high-precision fit between the rolling elements and the raceways, as well as the accurate guidance of the cage to the rolling elements, effectively suppress the generation of vibration and noise during operation. In equipment with high requirements for operation stability, such as the transmission system of small precision instruments, the 51100 bearing can ensure the stability of the equipment during operation, providing a reliable basis for the high-precision measurement and operation of the instrument. The stable operation state can ensure that the instrument is not disturbed by vibration during work, ensuring the accuracy and reliability of measurement results, and meeting the strict requirements of precision instruments for high-precision operation.

3. Convenient Maintenance Characteristics

As mentioned earlier, the separability and interchangeability of the components of the 51100 bearing bring great convenience to the maintenance of equipment. During daily maintenance of the equipment or when a failure occurs, maintenance personnel do not need to perform complex overall disassembly operations, but only need to replace the specific damaged parts. This feature not only reduces the technical difficulty of maintenance work, enabling maintenance personnel to complete maintenance tasks more quickly and accurately, but also greatly shortens the equipment downtime. The shortening of equipment downtime means that enterprises can resume production faster, improves the availability of equipment, provides a strong guarantee for the continuous production of enterprises, and reduces the potential economic loss caused by equipment downtime.

V. Wide Application Fields

1. Small Mechanical Transmission Field

In the axial positioning and support system of small motors, the 51100 bearing can bear the axial force generated during the operation of the motor, ensure the stable rotation of the motor shaft, and improve the operation efficiency and reliability of the motor. In small gear transmission devices, the bearing can be used to support the gear shaft, bear the axial force generated during gear meshing, ensure the stability and accuracy of gear transmission, and is widely used in production equipment in industries such as toy manufacturing and small household appliances.

2. Instrumentation Field

In some testing instruments with high precision requirements, such as small electronic scales, precision pressure gauges and other equipment, the 51100 bearing is used to support the shafting of the sensor. Its good operation stability and high precision can ensure that the sensor accurately perceives changes in external physical quantities, providing a reliable guarantee for the accurate measurement of the instrument. In the lens adjustment mechanism of optical instruments, the bearing can bear the axial force during adjustment, ensure the smooth movement and accurate positioning of the lens, and meet the needs of optical instruments for precise adjustment.

3. Office Equipment Field

In the paper conveying system of printers, the 51100 bearing is used to support the shaft end of the conveying roller, bear the axial force generated during paper conveying, ensure the smooth and accurate conveying of paper, avoid failures such as paper jams, and improve the working efficiency and stability of the printer. In the drum assembly of copiers, the bearing can be used to support the drum shaft, ensure the stability of the drum during high-speed rotation, and provide a guarantee for the copying quality.

4. Other Fields

In small transmission components of fitness equipment, such as the belt tensioner shaft of treadmills and the pedal shaft of small exercise bikes, the 51100 bearing can bear axial forces, ensure the smooth operation of moving parts, and improve the user experience of fitness equipment. In the transmission mechanism of some small medical devices, the bearing can also rely on its reliable performance to adapt to the requirements of medical devices for stability and precision, providing support for the medical diagnosis and treatment process.

The 51100 single-direction thrust ball bearing, with its precise dimensional specifications, unique structural design, high-quality material technology, excellent performance advantages and wide application fields, has become an important guarantee for many mechanical equipment to achieve efficient and stable operation. Whether in precision instruments with strict precision requirements or small mechanical equipment pursuing stable performance, the 51100 bearing can fully demonstrate its reliable performance and contribute important strength to the development of various industries.
